Koenigsegg Regera, A New Era

Koenigsegg regera3

The Regera was created as a luxury Megacar alternative to Koenigsegg’s traditional extreme, light weight, race-like road cars. Even though the One:1 and the Agera RS have surprising levels of practicality, creature comforts and features, their primary focus is, and has always been, to be the overall fastest cars on the planet – around a racetrack or anywhere else.

Regera is Swedish for “to Reign” – a suitable name for a machine that offers a never seen before combination of power, responsiveness and luxury – a true Dr. Jekyll & Mr. Hyde persona.

In spite of all its advanced technology and creature comforts, the Regera is comparatively light. Therefore, it can still perform competitively around a race circuit. The only Hyper/Megacar that we think could possibly be faster around a circuit is another Koenigsegg.

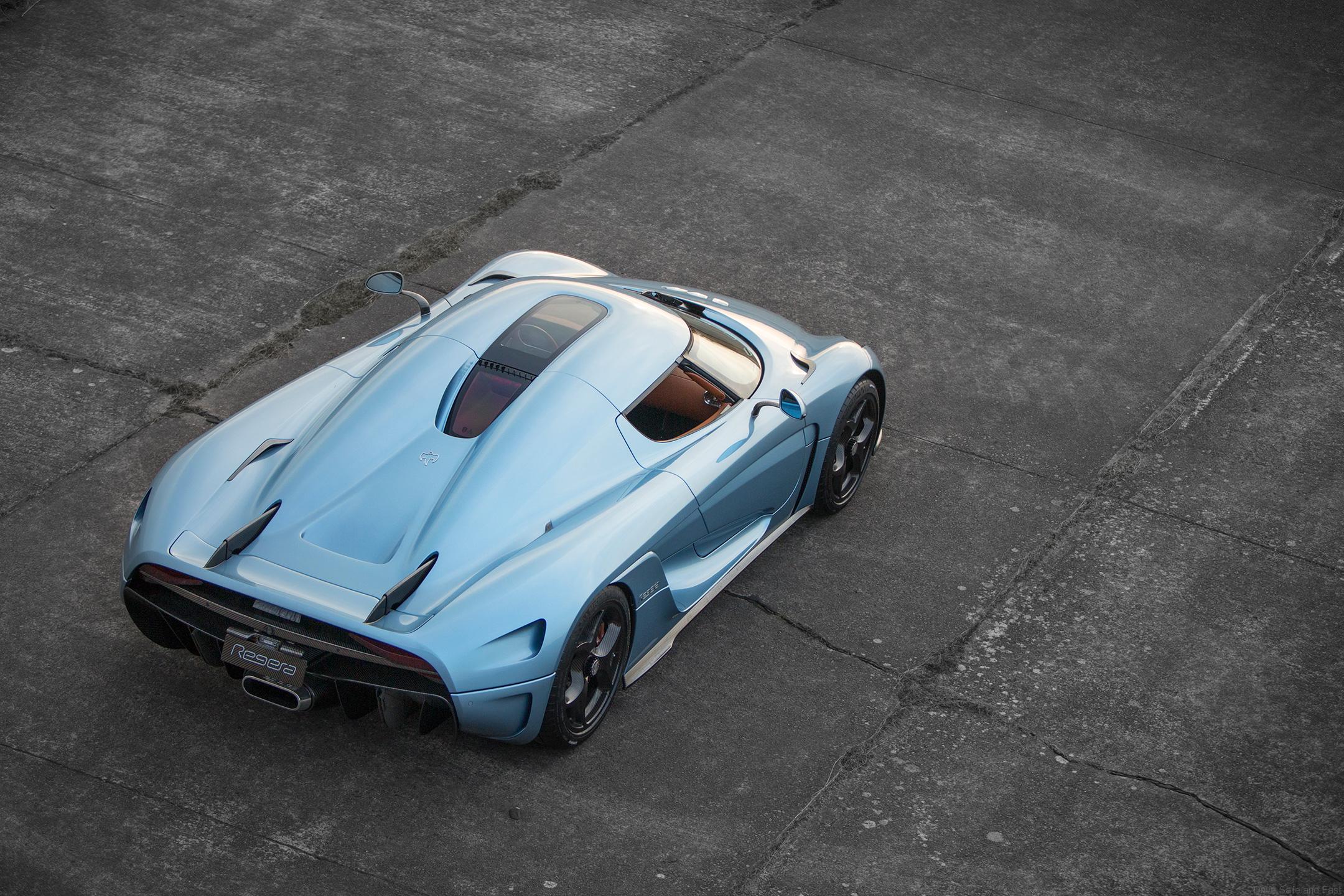

Koenigsegg regera7

The Regera will reign as the king of the open road – as the fastest accelerating, most powerful production car ever.
The Regera will be handcrafted in only 80 examples. Apart from being a suitable production run for Koenigsegg´s newly upgraded and refurbished production facility, the number 80 also symbolizes the principle of domination, control and achievement in Pythagorean Numerology. With the introduction of the Regera, Koenigsegg will, for the first time ever, have two parallel models in production.

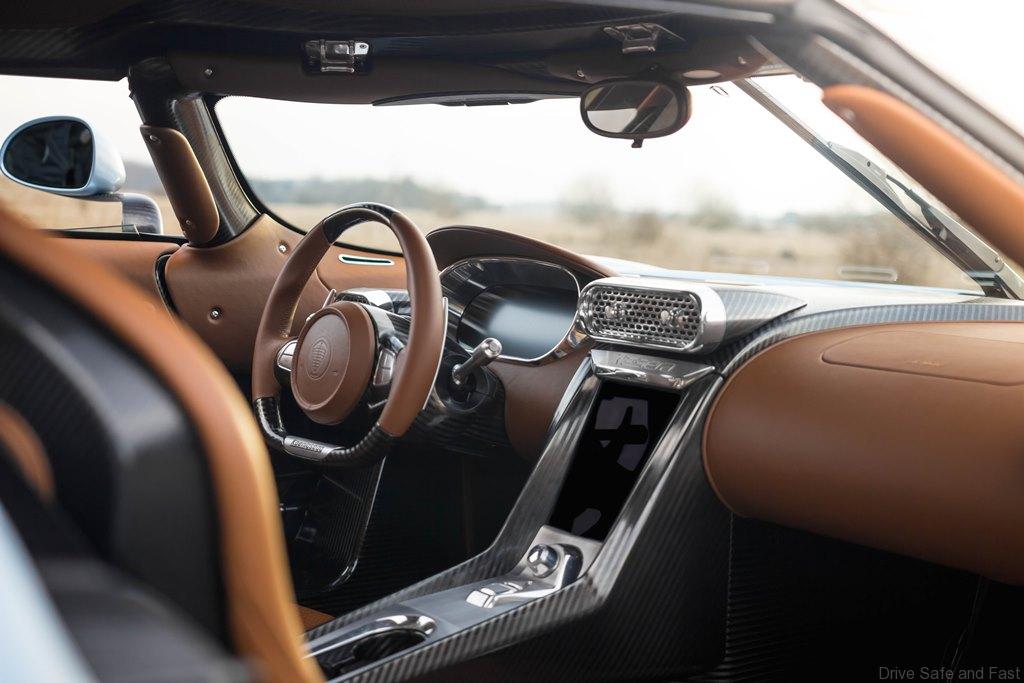

The interior features; added insulation, 8 way electrically adjustable memory foam seats. A Koenigsegg 9” infotainment system, 3G and Wi-Fi connectivity, front, inner and rear camera system with recording capability, Apple CarPlay, supreme sound system, ambient lighting and many other great new features. The Regera also comes with front and rear parking sensors and remote diagnostic and firmware update capability.

Koenigsegg regera4

A good design and layout of the DRL (Daytime Running Lights) gives character, as the DRL is what’s first seen when a car comes driving from a distance.

We wanted the Regera to stand out and clearly be recognized also from a far, so we came up with a novel idea that we call – Constellation DRL.

Koenigsegg regera5

To get a constellation of stars effect, we scattered the LED´s, which make up the DRL, around the lamp cluster, giving the effect of star constellations on a night sky made up of polished carbon fiber.

A side effect is that the LED´s make the whole lamp cluster glitter and shine, as if there where diamonds thrown into them. That´s what we call – Koenigsegg cool.

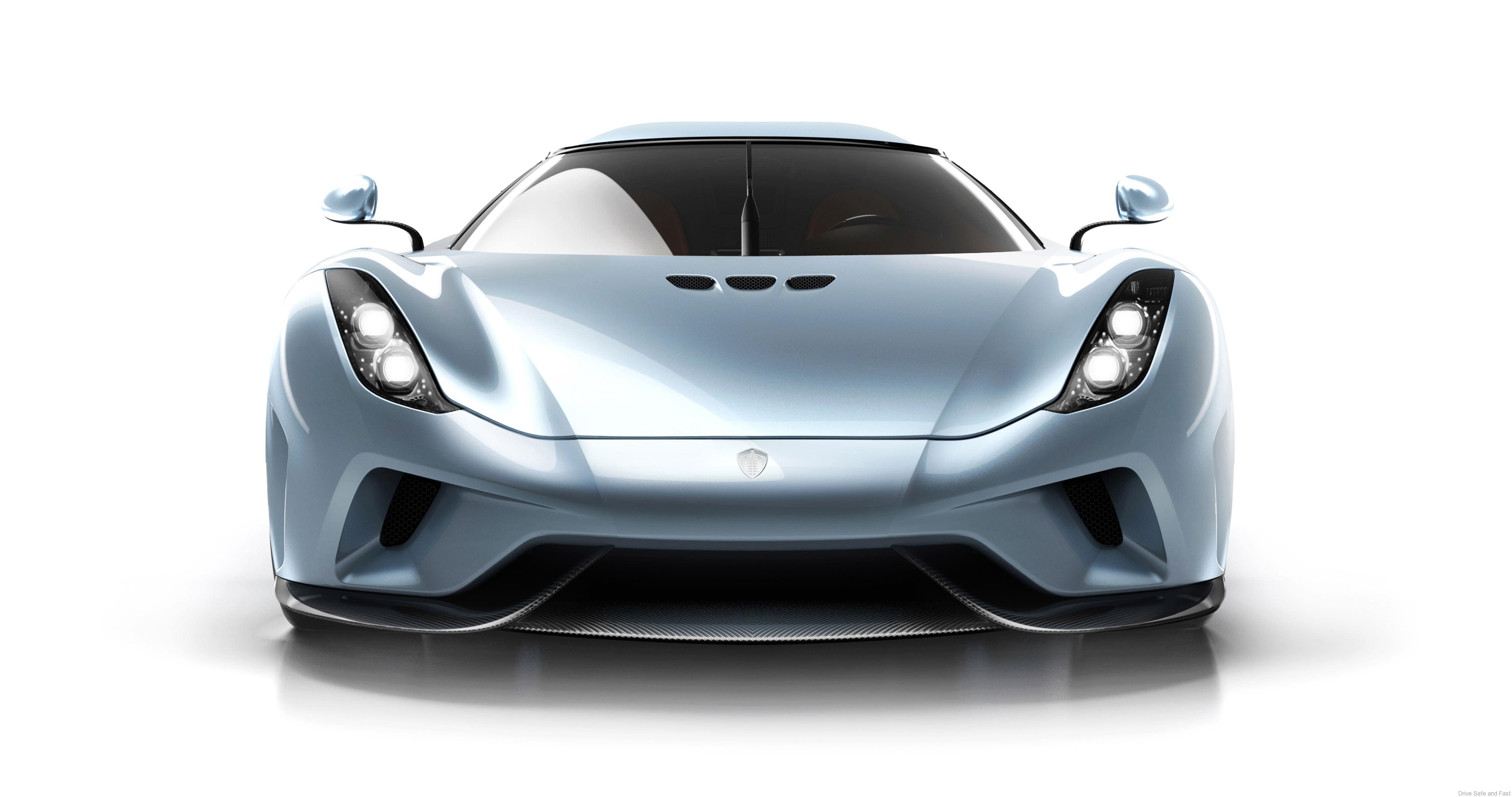

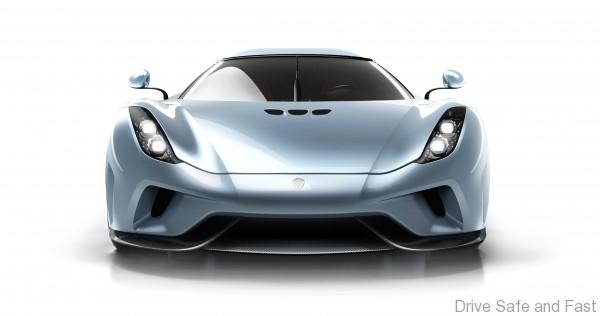

Koenigsegg regera9

The heart and soul of every Koenigsegg is its Internal Combustion Engine – the ICE. The ICE of the Regera follows the path of its siblings, based on the proven and extremely reliable Koenigsegg drysumped twin turbo, DOHC, 5.0 liter V8.

As before, the Koenigsegg V8 is the most downsized homologated production ICE in the world, with 220 Hp per liter engine (using regular pump gas). The compactness of the engine makes the Regera nimble, efficient and lightweight.

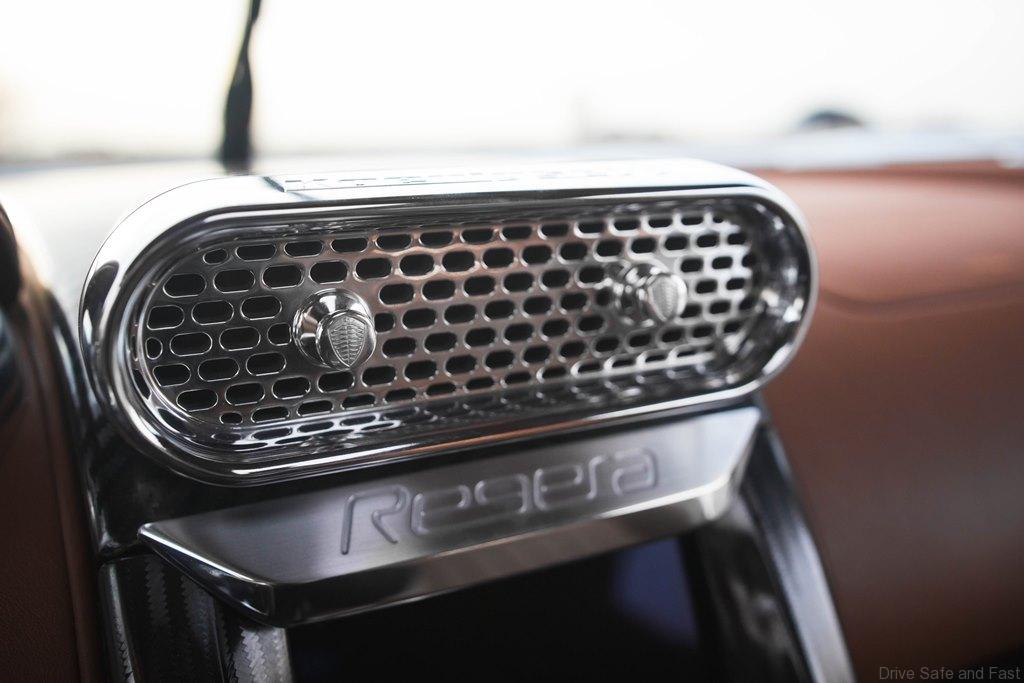

Koenigsegg regera6

The difference to the Agera engine is that, given the electric propulsion of the Direct Drive system, we did not have to go as extreme on ICE power, as the combined output is way over 1500 Hp and over 2000 Nm torque, anyway. Given this we could install even smaller, faster spooling turbos on the Regera, further enhancing the ICE drivability and response.

Koeniegsegg

The Direct Drive transmission of the Regera is capable of delivering never before experienced blistering response and performance while at the same time being able to deliver one of the smoothest and most soothing driving experiences. Given this high level of bi-polar characteristics, the rest of the car had to be up to the task of delivering blistering, lightweight performance at new levels of soothing luxury.

Therefore Koenigsegg developed a completely new rear sub frame and rear structure that allows the engine and transmission to rest on active soft mounts. When driving in normal conditions, the mounts stay soft and isolate engine noise and vibrations. When driving spirited, the mounts firm up to solidify the car and give greater response. The shock absorbers are active in height and stiffness – again allowing for the bi-polar behavior.

Furthermore, the Regera can be driven in absolute silence, as it is possible to go into full EV mode for shorter periods of time.

Goodyear 650x85(DSF)

Given the latest advances in compact lightweight hydraulics, Koenigsegg has managed to robotize the entire Regera with almost no weight addition. As the Regera features functions such as; active front and rear wings, chassis control and lifting system – the pumps and accumulators were already in place to connect a few more hydraulic operators. These in turn replaced gas struts of equal weight – resulting in minimal weight impact.

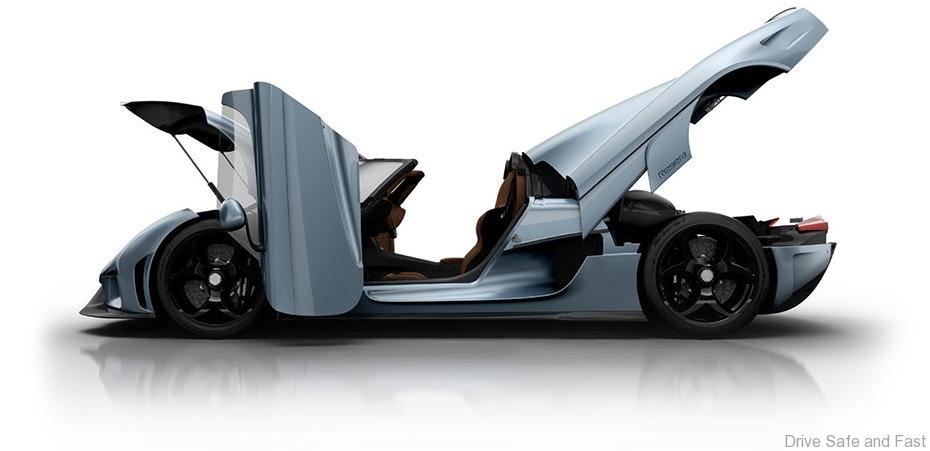

Due to the above, the Regera is the first car in the world that operates all body closures completely automatically. The spectacle to open and close the entire car simultaneously from the remote or smartphone, truly turns the Regera into a transformer.

On top of this, all body closures have soft latching mechanisms, giving the Regera a sophisticated feel. The fully robotized body system, with soft latches adds a mere 5 kg, making full robotization a very desirable option.

Furthermore the wing mirrors are auto-folding while the doors open, giving added practicality and visual drama, as the Dihedral Synchro Helix Doors swing out and rotate 90 degrees to fully clear the door opening, without protruding more than the width of the door – making them highly ergonomic.

Goodyear eagle 650x85(DSF)

The Regera utilizes an EV plug in feature. Behind the robotized rear number plate nestles a type 2 mode 3 charging port. This means that the Direct Drive Battery can be charged either by the combustion engine or through the charging port. The plug-in solution enabled us to create a novel feature we call – Battery Drain Mode, or BDM for short. For example, when there is around 50 km range left to the destination or next charging point, a preset geo location or a push on the touchscreen will trigger the BDM. This means the car calculates the driving behaviour and makes sure the battery is fully drained upon arrival and is ready for a full charge. This drastically minimize fuel consumption and lower C02 emissions as the fuel consumed has been correctly optimized for the length of the journey.

Goodyear f1 650x85(DSF)

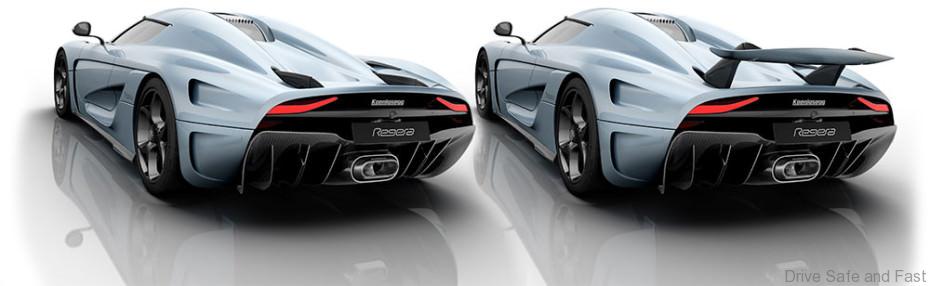

The Koenigsegg One:1 featured the world’s first top mounted active rear wing. This was an innovative solution that maximized down force compared to its size and weight.

Koenigsegg regera8

The Regera, being more luxury oriented, has taken this solution to the next level, allowing the wing also to fully fold down into the body work enhancing the cars elegance while parking and reducing drag while cruising. The wing´s active foldable mechanism, is a lightweight work of carbon fiber art and the movement is truly mesmerizing.

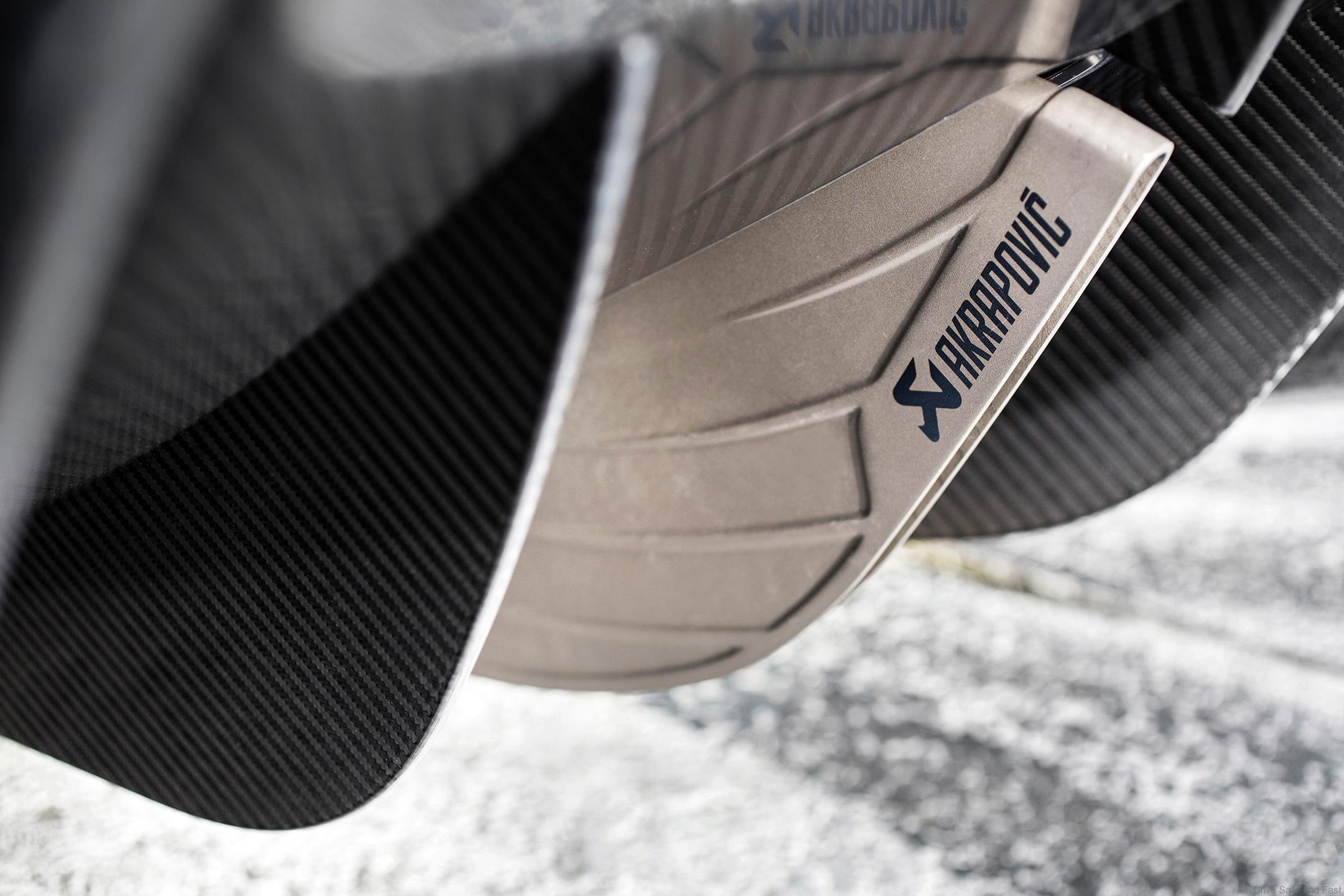

Sporting a unique exhaust-note, the Regera has a custom designed, sound tuned titanium system jointly developed by Akrapovic.

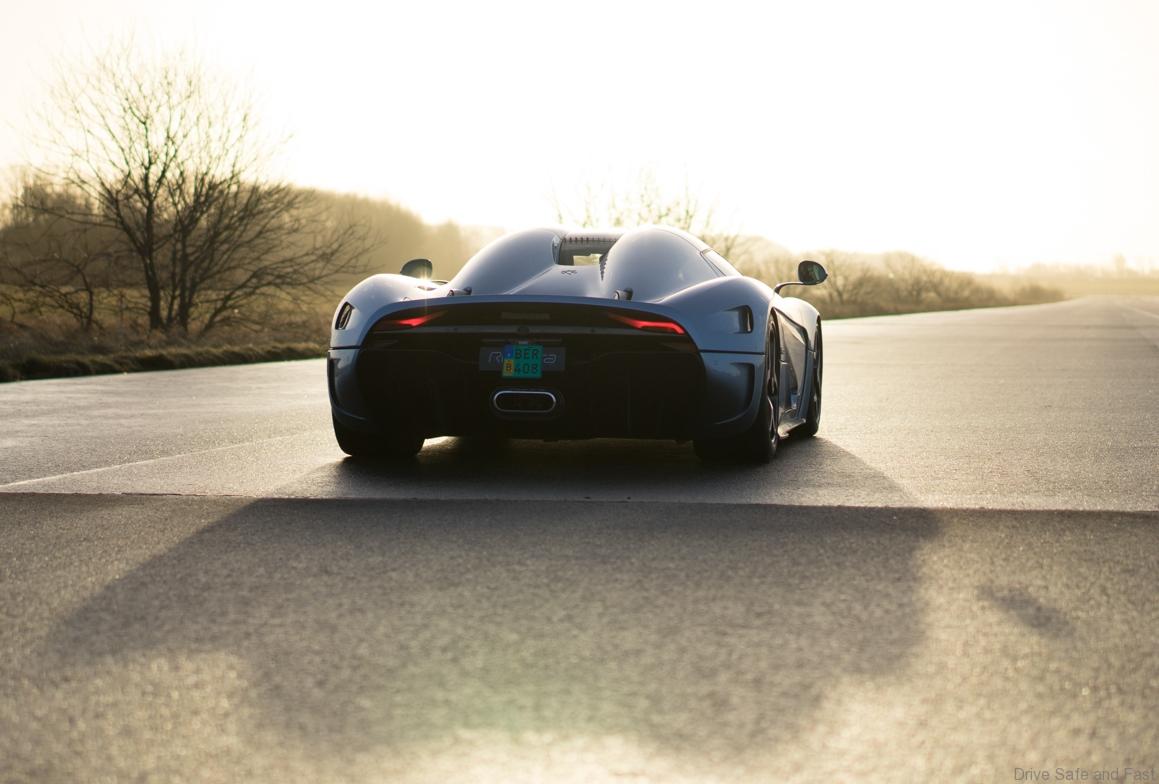

Koenigsegg regera2

Koenigsegg twin turbo aluminum 5,0L V8,

  • 4 valves per cylinder, double overhead
  • camshafts, dry sump lubrication
  • Compression: 9.3:1
  • Bore: 92 mm Stroke: 95.25 mm
  • Twin ceramic ball bearing turbo chargers
  • with Koenigsegg patented backpressure
  • reduction system, 1.4 bar boost pressure
  • Active hydraulic engine mounts
  • Dry sump lubrication
  • Carbon fiber intake manifold with optimi-
  • zed intake tracts
  • Total engine weight: 189 kg
  • Power output – Premium gasoline
  • 820kW (1100Hp) at 7800 rpm – redline at
  • 8250 rpm
  • Torque: 1000 Nm from 2700 to 6170 rpm
  • Max torque – 1280 Nm at 4100 rpm

Electric Drive

  • One 300Nm/160kW Crank mounted
  • motor
  • Two 260Nm/180kW Driveshaft mounted
  • motors (one per rear wheel)
  • Combined continuous electric propulsion
  • 820Nm and 520kW
  • 9.27 kWh liquid cooled battery pack.
  • 50 km pure electric drive range on full
  • charge (EU only)
