GLC F-Cell Plug-In Concept Reinforces Mercedes’ Focus on Next-Gen Tech

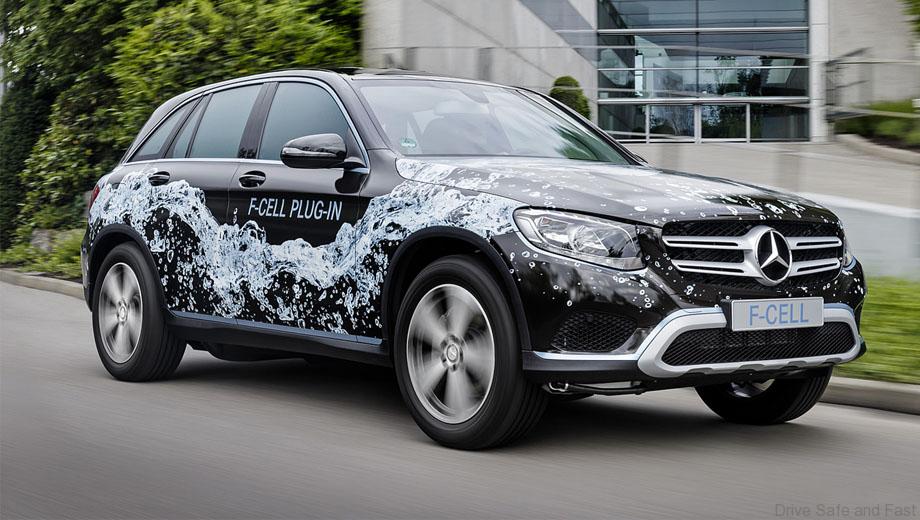

The Mercedes-Benz engineers joined forces with partners in the Daimler competence network to develop a new, compact fuel-cell system which for the first time fits into conventional engine compartments.

The GLC F-CELL features a large lithium-ion battery as a further innovation of the next-generation fuel-cell vehicles. Rated at around 9 kWh, the battery serves as an additional energy source for the electric motor and can be charged externally by means of plug-in technology for the first time. Together with the further developed intelligent operating strategy, the combination of fuel cell and battery system offers maximum efficiency and comfort. With this set-up, the GLC F-CELL achieves a combined range of around 500 km in the NEDC.

Merc 1

The next technology advance is now imminent: working together with partners from its global competence network, Daimler AG has developed an all-new fuel-cell system. Around 30 percent more compact than previously, it can be fully housed in the engine compartment for the first time.

Template BHP

Furthermore, the cost of the innovative technology has been slashed thanks largely to a 90-percent reduction in the amount of platinum used in the stack. From 2017, Daimler will be unveiling the new-generation fuel-cell technology based on the Mercedes-Benz GLC.

Merc 4

World first: plug-in fuel-cell drive goes into production

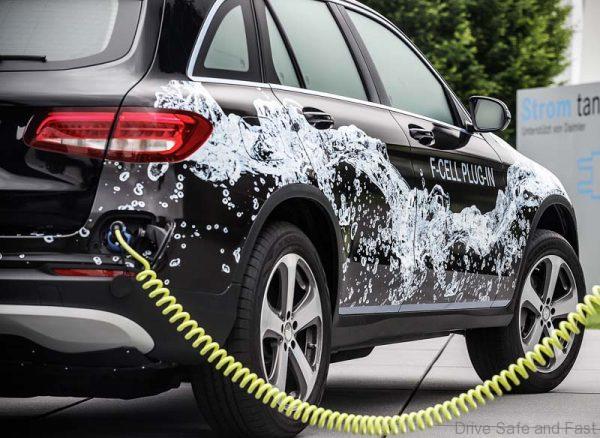

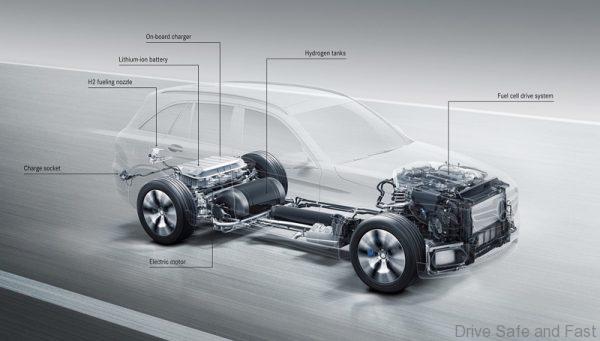

A lithium-ion battery for autonomous operation is being used in an electric vehicle with fuel cell for the first time. The powerful battery has a capacity of around 9 kWh and is housed at the rear of the SUV to save space. It allows the GLC F-CELL to run on purely battery-electric power for up to 50 km in the NEDC and can be conveniently charged at a standard household socket, a Mercedes-Benz wall box or a public charging station. Two carbon-fibre-encased tanks built into the vehicle floor hold around 4 kg of hydrogen. Thanks to the globally standardised 700-bar tank technology, the tank in the GLC F-CELL can be refilled at a hydrogen filling station within just three minutes, which is about the same amount of time it takes to refuel a car with an internal combustion engine.

Merc 3

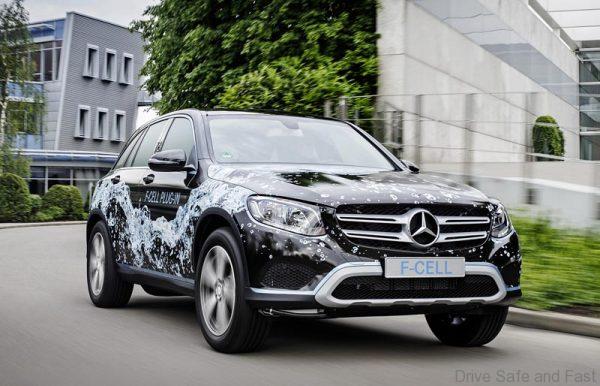

The combination of fuel cell and plug-in battery is ideal given the progressive development of the hydrogen filling station infrastructure. The innovative plug-in fuel-cell drive combines the advantages of both zero-emission drive technologies and, thanks to its intelligent operating strategy, continuously optimises the use of both energy sources in line with the current operating situation. In total, the GLC F-CELL achieves a combined range of around 500 km in the NEDC.

Merc 5

The Daimler strain plant Untertürkheim is responsible for an establishment for the fuel cell system installation, also at the location Nabern. The hydrogen tank system consisting of carbon-fibre-encased tanks is produced at the Daimler Mannheim plant while the lithium-ion battery comes from Daimler subsidiary Deutsche ACCUMOTIVE located in Kamenz, Saxony. Daimler is currently working systematically to prepare for series production of the Mercedes-Benz GLC F-CELL. The family-friendly SUV suitable for daily use is produced at the Mercedes-Benz Bremen plant, which acts as the competence centre for the model series. The GLC has been rolling off the production line there since July 2015. Regarding to the drive system integration of the GLC F-CELL, the partner EDAG supports the factory Bremen and will settle in the immediate work area.
