Norton V4 Details and Pictures Here


Published on November 16th, 2016 | by Daniel Sherman Fernandez


Norton V4 Details and Pictures Here

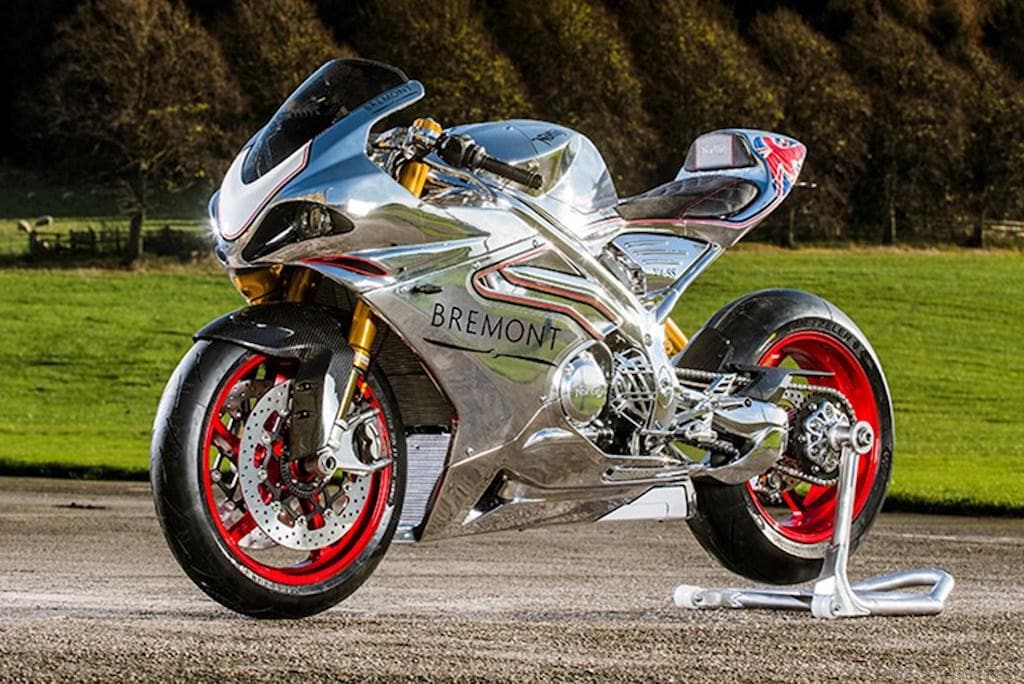

norton-v41Technical Specifications

Engine Norton 72-degree liquid-cooled V4, 1200cc. Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves. Slipper clutch

1. Bore x Stroke: 82mm x 56.8mm

2. Compression Ratio: 13.6:1

3. Power 200bhp+ @ 12,500rpm


4. Torque 95.88ftlb @ 10,000rpm

5. Fuel injection Electronic fuel-injection system. Constantly variable inlet tracts. 8-fuel injectors. Full drive-by-wire system independent of front and rear banks of cylinders for ultimate control and feel.


6. Engine modes Road, Sport, Pro-Race

7. Chassis Polished aluminium twin tube Shotgun frame with single-sided swingarm.

8. Suspension Fully-adjustable Öhlins NIX30 fork. Fully-adjustable Öhlins TTXGP rear shock.

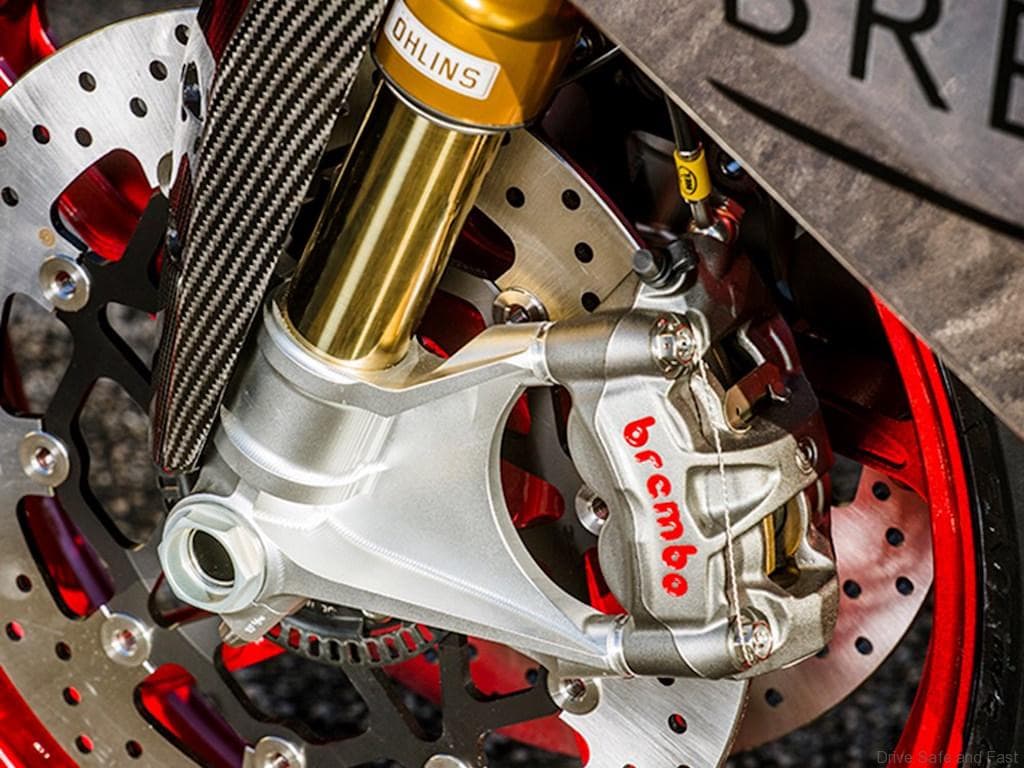

9. Brakes 2 x 330mm full-floating discs. Radially-mounted Brembo Monobloc calipers. Brembo discs, and Brembo master cylinder.

10. Dry weight 199kg

11. Fuel capacity 18L


12. Electronics Multi-setting traction-control, wheelie control, launch control and cruise control. Uses six-axis Inertial Measurement Unit (IMU), quickshifter and autoblipper, plus built-in datalogger


13. Dash Full-colour 7-inch screen with Road, Track and Pro-Race and rear-view camera and build-in datalogger.


14. Ignition Keyless ignition system

15. Wheelbase 1430mm

16. Dry weight 179kg


17. Front suspension Öhlins NIX30 system front fork. Fully-adjustable.

18. Rear suspension Öhlins TTXGP Norton bespoke fully-adjustable rear shock.

19. Steering damper Öhlins damper


20. Lighting  Full LED lighting system including super bright low beam & high beam, angel eye DRLs, rear lamps and indicators

21. Race exhaust Full titanium race system supplied with aftermarket tune, approx 8kg lighter and approx 10bhp more.
