Hyundai Shows Their All-New Veloster

Hyundai unveiled its all-new Veloster, Veloster Turbo and Veloster N models. The fresh design was a collaborative effort of Hyundai designers from Seoul, South Korea and the U.S. design centre in Irvine, California.

ALL-NEW DESIGN

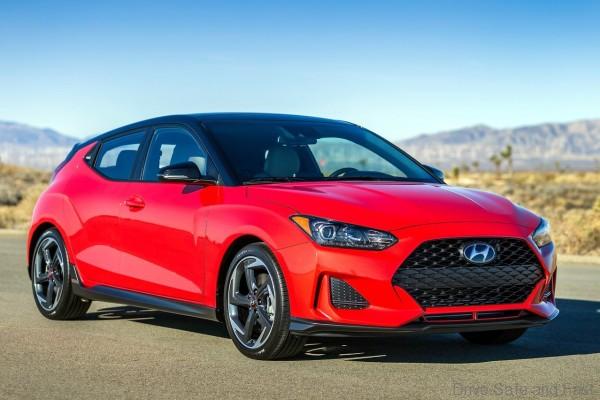

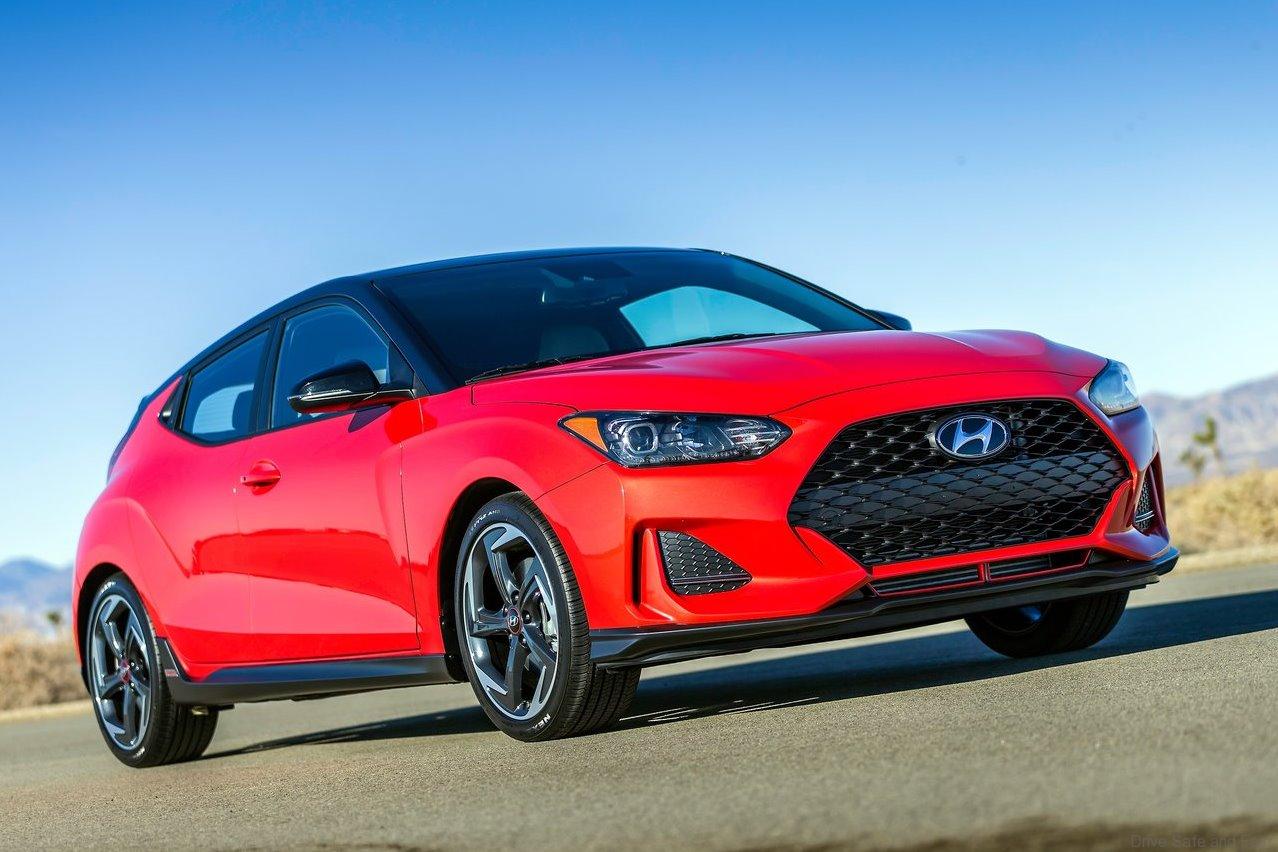

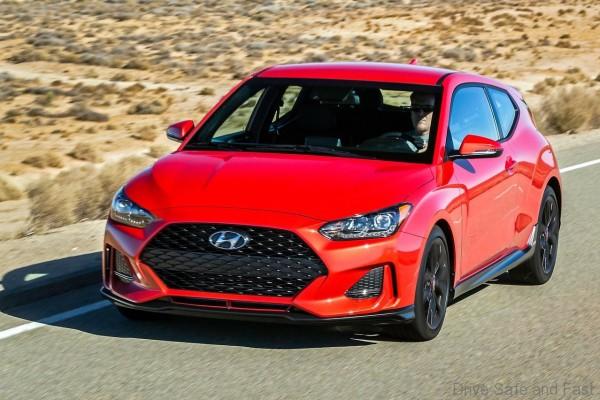

The Veloster merges the design appeal of a sport coupe with the versatility of an additional passenger side rear door in an asymmetrical two-plus-one configuration for easier rear-seat access. From the front, available LED headlights and LED Daytime Running Lights flank a striking new grille design. Functional air curtains add both a visual design cue and an active aerodynamic function. Hyundai’s signature cascade grille shape has morphed into a strong, three-dimensional design that sets the sport coupe apart.

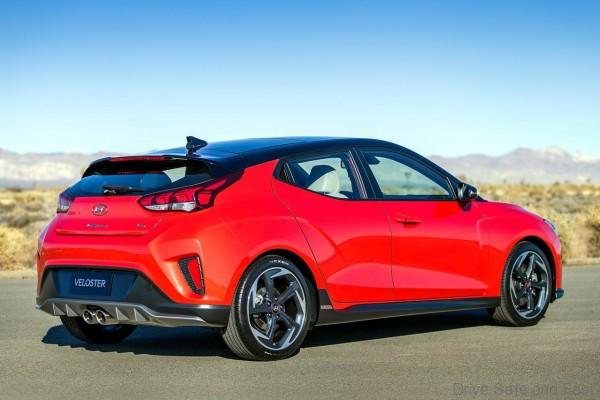

Much of the redesign is derived from enhanced proportions and volume; the new shape clearly conveys focused dynamic performance, even standing still. Its stance is more muscular, with higher-volume fenders and wheel arches for a more planted appearance. The cowl point and A-pillar are further rearward and now connect the hood line and belt line into an integrated, powerful gesture. Available 18-inch alloy wheels aggressively fill the wheelhouse openings. Further, the roofline has been lowered for a unique profile and a distinctive coupe-inspired essence. The fender line is also more coupe-like, and the rear now has a more aggressive integrated diffuser design. Available LED taillights help complete the rear view with a high-tech appearance.

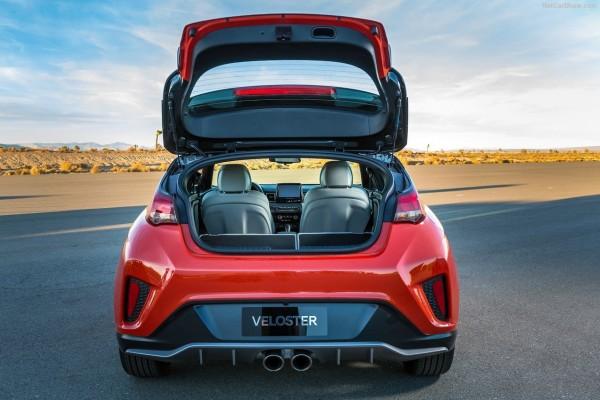

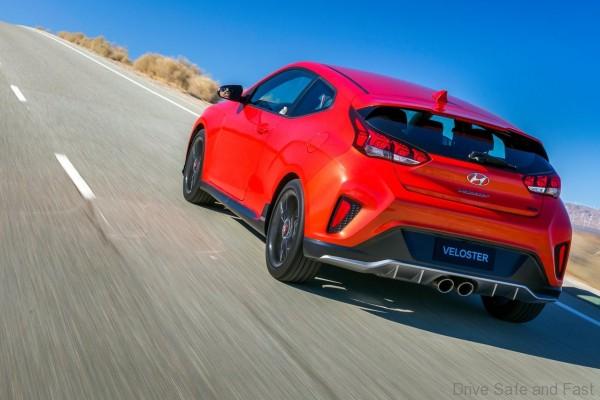

Also available is a full darkened roof treatment for a high-contrast performance appearance. Veloster’s dynamic rear design has a distinctive glass hatch and center-fascia chrome exhaust tips, with a single outlet for the 2.0-liter model and dual-outlets for Turbo and R-Spec models.

INTERIOR

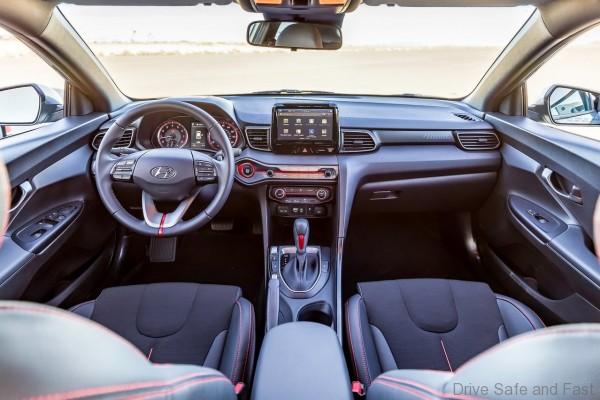

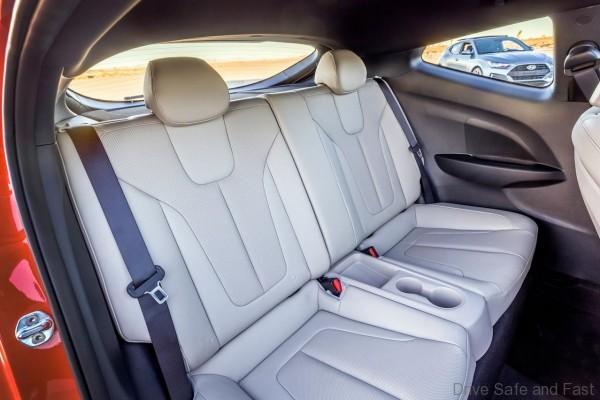

The asymmetrical design carries through to the interior, with a driver-focused interior layout and on the Turbo Ultimate, a contrasting colour environment that visually separates the driving cockpit. Each trim level has unique colours, materials, and accents, further differentiating each model with varying hues and textures.

2.0-LITER NU ENGINE

The Veloster 2.0-liter 4-cylinder engine uses the Atkinson-cycle for superior efficiency and lower emissions.

The 2.0-liter engine delivers a peak output of 147 horsepower at 6,200 rpm (estimated) and maximum torque of 132 lb.-ft. at 4,500 rpm (estimated). The Nu 2.0-liter also features Dual Continuously Variable Valve Timing, an electronic throttle control, variable induction and innovative anti-friction coatings. The 2.0-liter engine is coupled with either a six-speed manual or a six-speed electronically-controlled automatic transmission. Three driver-selectable modes include Normal, Sport, and Smart, according to changing driver preferences.

GAMMA 1.6-LITER TURBOCHARGED ENGINE

The 1.6-liter turbocharged, direct-injected four-cylinder engine produces 201 horsepower at 6,000 rpm (estimated) and 195 lb.-ft. of torque from 1,500-4,500 rpm (estimated). Turbo models generate 201 horsepower on regular fuel, which represents a best-in-class specific output of 125.6 horsepower per liter. Further, there is an over-boost function that raises peak torque output to 202 lb.-ft. under maximum acceleration. Engine tuning maximizes low- and mid-range torque, for optimum acceleration under daily driving conditions.

Veloster Turbo is paired with a standard six-speed manual transmission or a seven-speed dual clutch transmission (DCT). Both transmissions were developed in-house by Hyundai. The Veloster Turbo seven-speed dual-clutch transmission features steering wheel-mounted paddle-shifters and SHIFTRONIC® transmission gear control. In addition, all Veloster Turbo models feature Active Sound Design, which enhances intake and exhaust powertrain sound character inside the cabin for a more visceral driving experience, especially during spirited driving. Turbo models also offer three selectable driving modes, including Normal, Sport and Smart, according to driver preferences for engine, transmission and steering feel.

TORQUE VECTORING CONTROL

All Veloster models offer Torque Vectoring Control (TVC). This active cornering feature utilizing capabilities from the Electronic Stability Control (ESC) and powertrain control systems, allows Veloster to improve dynamic cornering during more enthusiastic driving. TVC uses wheel-speed sensors coupled with ESC algorithms to apply precise braking force to the inside front wheel during spirited cornering. This active braking redirects power to the outside front wheel in the turn, reducing wheelspin for enhanced cornering grip and corner-exit acceleration. Overall, this provides Veloster drivers with an incremental margin of cornering precision during enthusiastic driving.

Further, Veloster Turbo features a quicker-ratio steering rack and a revised steering calibration to match, which gives drivers precise cornering, feedback and control.

DCT TRANSMISSION

Hyundai’s EcoShift DCT takes the benefits of a manual transmission, such as low fuel consumption, and blends these with automatic transmission benefits, such as high comfort levels and driving ease. In addition, the DCT enables direct connection for high efficiency and uninterrupted torque transfer during shifts. The DCT also incorporates Hyundai’s Hillstart Assist Control (HAC), designed to minimize rolling backwards on steep ascents.

Turbo Model 7-speed Dual Clutch Transmission (DCT)

Veloster’s compelling combination of performance with efficiency is a formula many industry competitors are seeking to duplicate. Hyundai’s development focus on all the factors of efficient performance, such as small-displacement turbocharged engines, dual-clutch transmissions, comprehensive lightweighting, efficient aerodynamics, and reduction of parasitic engine losses through electric-powered ancillaries, have combined to yield simultaneous benefits in performance and efficiency to the consumer.

TURBO MODEL SPORT-TUNED DYNAMICS

Veloster Turbos are fitted with a McPherson strut front suspension, coil springs, gas shock absorbers and a 24-mm diameter front stabilizer bar. The rear suspension is a lightweight independent multi-link design with a 19-mm stabilizer bar to further control body roll. The rear suspension uses gas-pressurized shock absorbers for ride comfort with excellent control. Veloster features electric power steering that adjusts assistance to changing driving conditions while improving fuel economy over a conventional steering system. When equipped with the six-speed manual transmission, available 18-inch alloy wheels are fitted with Michelin® Pilot Sport 4 summer tires.
