Renault F1 Introduces Us To The Energy F1-2014 Power Unit

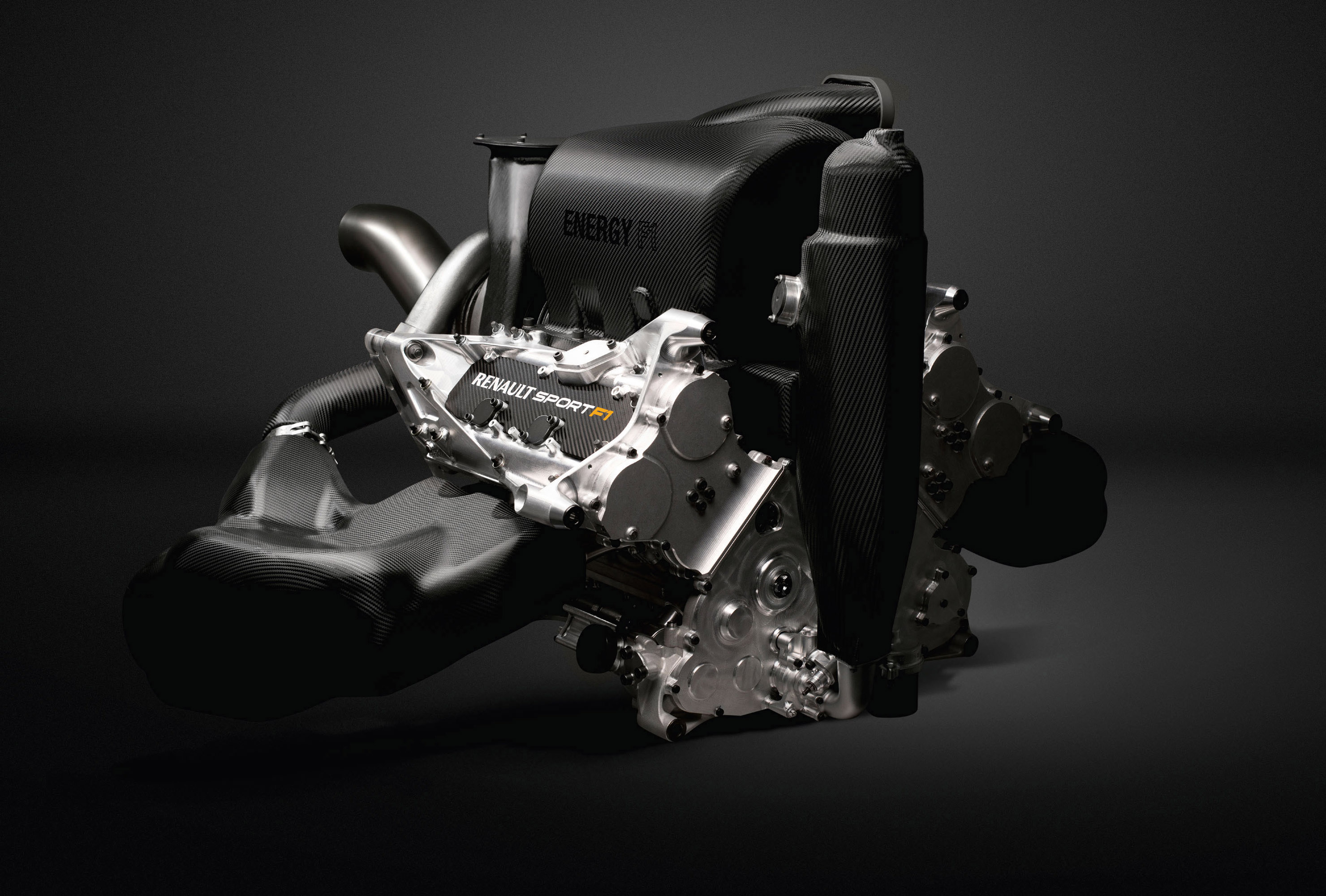

The 2014 FIA Formula One World Championship is introducing a radical technical regulation changes. The cars that will compete will be powered by new powertrain technology, with a powerful turbocharged internal combustion engine coupled with energy recovery systems. Furthermore, the power output will be increased up to unseen levels in over five years. Two types of energy will propel the cars – internal combustion and electrical energy. The first unit will produce power through consumption of traditional carbon-based fuel, while the second will be harvested from exhaust and braking by two motor generator units. Of course, both will work in harmony. Such engines are to be called now “Power Units”. Since these announcements have been made, Renault came up with the statement that it is entirely prepared for this technical revolution by introducing the Energy F1-2014 Power Unit.
The new Power Unit key elements include the following: 1.6-litre turbocharged V6 internal combustion engine Direct injection Maximum engine speed of 15,000rpm Potent Energy Recovery Systems incorporating two motor generator units – the MGU-H, recovering energy from the exhaust and the MGU-K recovering energy from braking Electrical energy recovered stored in a battery Combined maximum power output of 760 hp, on a par with previous V8 generation Double restriction on fuel consumption: fuel quantity for the race limited to 100 kg (-35% from 2013) with fuel flow rate limited to 100 kg/hr max (unlimited under V8 regulations) Engine development is frozen during the season, only changes for fair and equitable reasons are permitted 5 Power Units permitted per driver per year.

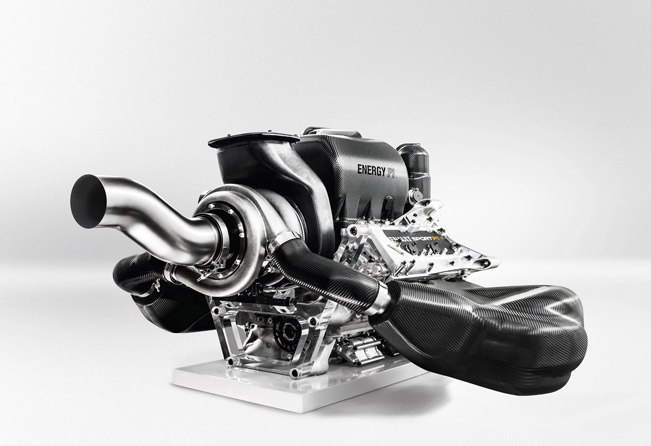

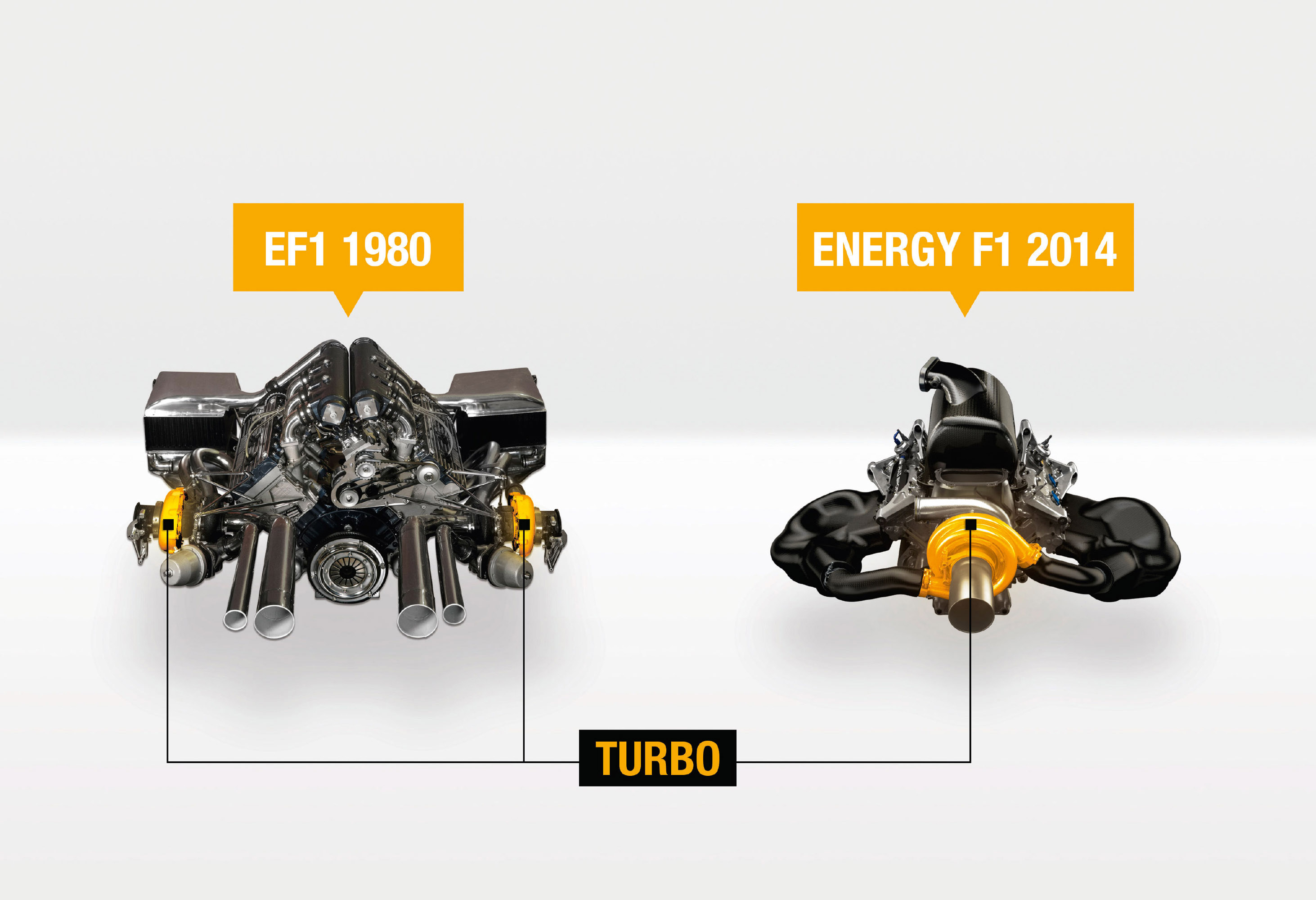

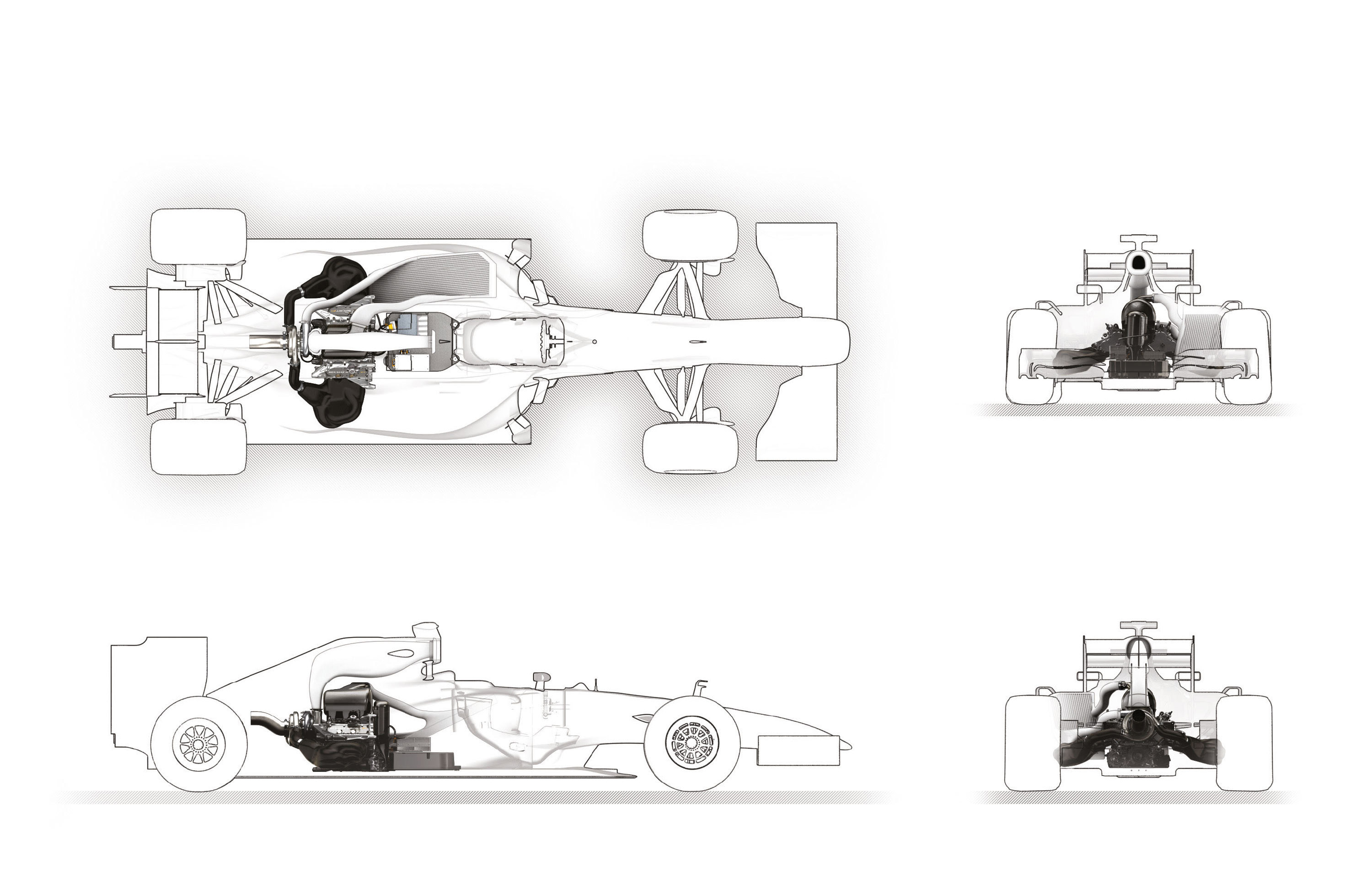

To go further into details, the internal combustion V6 engine includes cylinders arranged in two banks of 3 cylinders arranged in a ‘V’ configuration over a common crankshaft. It has a displacement of 1.6 litres and will make around 600 hp alone. Furthermore, all Power Units must include direct fuel injection (DI). This is a key sub-system at the heart of the fuel efficiency and power delivery of the power unit. Here fuel is sprayed directly into the combustion chamber and not into the inlet port upstream of the inlet valves. The fuel-air mixture is formed within the cylinder. Next, the turbocharger utilizes exhaust gas energy to enhance the density of the engine intake, thus producing more power. In addition, it allows smaller engine to make much more power than its size would normally permit, while the exhaust energy is converted to mechanical shaft power by an exhaust turbine.
The mechanical power from the turbine is then used by the compressor and the MGU-H. You might ask what is MGU-H. The answer is simple: on the Renault Energy F1, the turbo rotation speed is primarily controlled by the MGU-H, however a wastegate is needed to keep full control in any circumstance. In comparison, on conventional turbo engines, a wastegate is used in combination with a turbocharger to control the high rotation speeds of the system. In fact, the wastegate is a control device that allows excess exhaust gas to by-pass the turbine and matches the power produced by the turbine to that needed by the compressor. MGU-H is connected to the turbocharger and acts like a generator by absorbing power from the turbine shaft to convert heat energy from the exhaust gases.

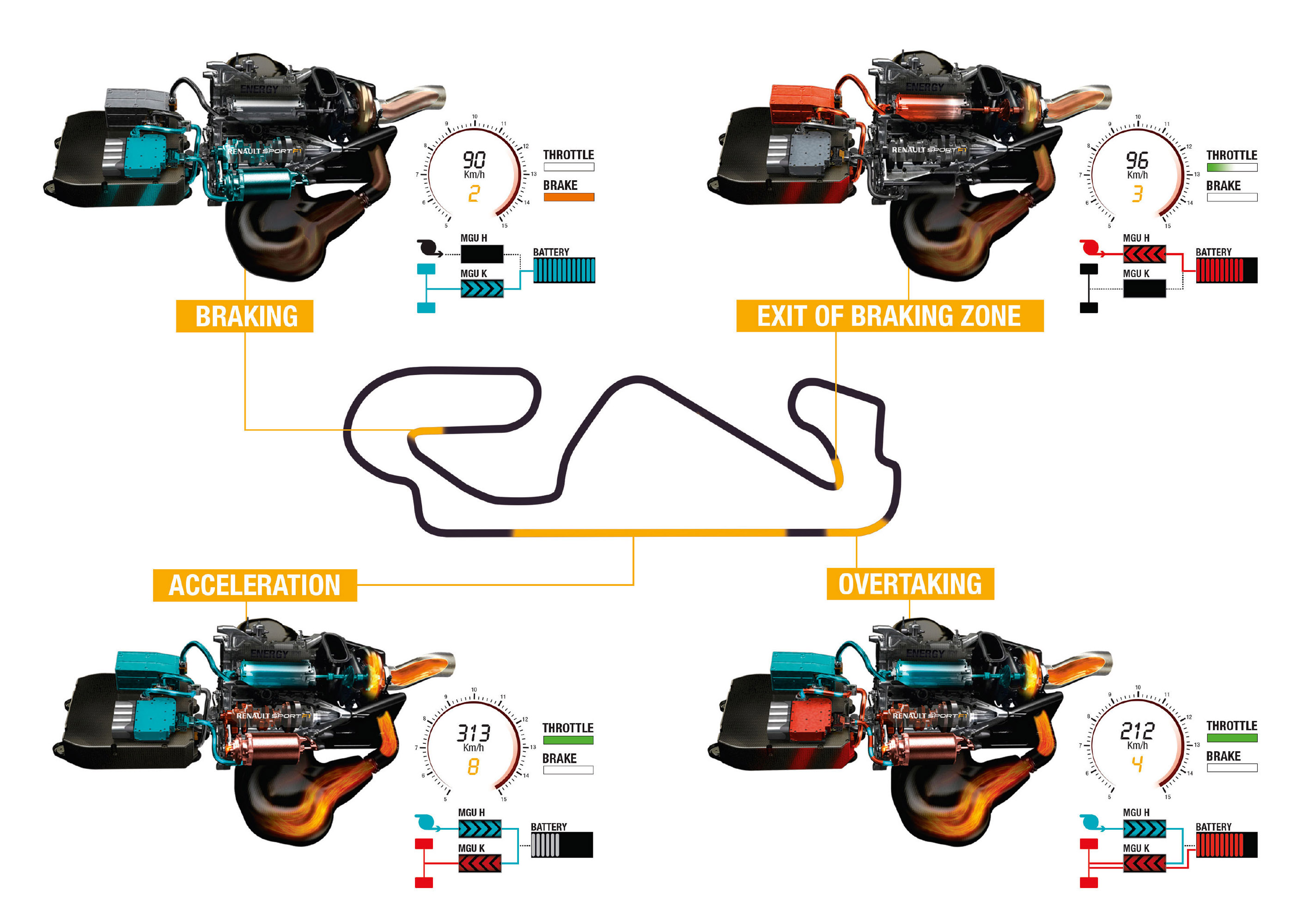

The electrical energy can be later directed to the MGU-K or stored in the battery. On the other hand, the MGU-K operates as a generator that recovers some of the kinetic energy during braking. In addition, it also converts it into electricity. When the car accelerates, the MGU-K is powered by the Energy Store and the MGU-H. In these cases it acts as a motor and propels the car. At last, the Battery or Energy Store consumes recovered Heat and Kinetic Energy. The stored energy can be utilized by the vehicle with the MGU-K or can be also utilized to accelerate the turbocharger with the MGU-H. The result is two times more power and the energy contributing to performance is ten times greater.
