Published on March 28th, 2017 | by Subhash Nair


Ford GT’s Many Drive Modes Explained

There once was a time when owning a supercar meant compromise. Undeniably, the thrills were real, but the effort required to operate many a high-performance machine could overwhelm. With the all-new Ford GT, there is no such tradeoff. Ford Performance engineers set out to ensure being behind the wheel of the 647 horsepower carbon fibre supercar is an absolute joy regardless of driving conditions.

Five modes enable Ford GT to attain ideal performance – whether on-road driving on a nice summer day, contending with rain and other elements, or aggressively pursuing its limits on a closed circuit. The drive modes include:

  • Normal, for everyday driving
  • Wet, for driving in the elements
  • Sport, for more spirited ventures
  • Track, for racing
  • V-Max, for maximum straight-line speed

Leveraging learnings from the Ford GT racing program, Ford Performance gave each mode a unique instrument cluster display, with elements prioritised to enhance the overall driving experience.

All of this means that with the simple turn of a knob on its F1-inspired steering wheel, the all-new supercar can switch nearly instantaneously from canyon-carving road machine to fully functioning race car tuned for maximum speed and downforce.

Ford GT also features an advanced, yet easy-to-use launch control system that provides optimal traction for the perfect launch every time. Designed for track use, it’s available in all modes except “Wet”. The system is activated through the steering wheel controls in the instrument panel menu and, when activated, a white “LC” appears in the cluster. At this point the driver holds down the brake with their left foot and fully depresses the gas with their right foot. When ready, the “LC” turns green and the driver lifts their left foot and the GT launches off, quickly hitting speed.

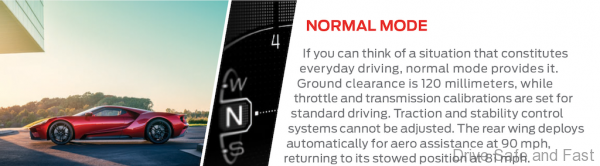

Normal mode

If you can think of a situation that constitutes everyday driving in a Ford GT, Normal mode provides it.

Ground clearance is 120 millimeters, while throttle and transmission calibrations are set for standard driving. Traction and stability control systems cannot be adjusted. The rear wing deploys automatically for aero assistance at 90 mph, returning to its stowed position at 81 mph. The wing still deploys as an airbrake if sensors detect aggressive braking.

In Normal and Wet modes, comfort suspension is available. Pressing the comfort button allows the driver to soften the car’s ride on bumpy roads by adjusting compression and rebound in the dampers – without compromising control.

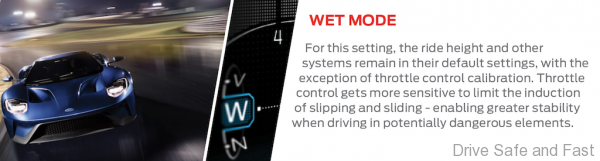

Wet mode

For this setting, the Ford GT’s ride height and other systems remain in their default settings, with the exception of throttle control calibration.

For Wet mode, throttle control is adjusted to limit the induction of slipping and sliding – enabling greater stability when driving in potentially dangerous elements.

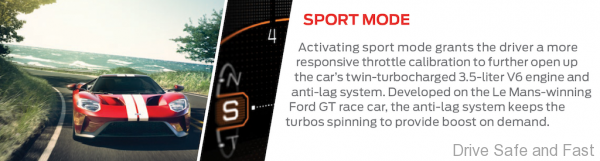

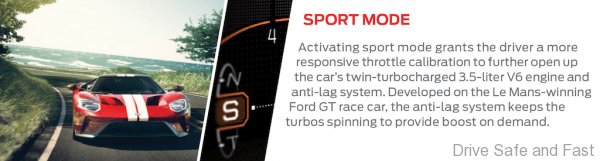

Sport mode

Activating Sport mode grants the driver a more responsive throttle calibration to further open up the car’s twin-turbocharged 3.5-liter V6 engine and anti-lag system. Developed on the Le Mans-winning Ford GT race car, the anti-lag system keeps the turbo spinning to provide boost on demand.

For Sport mode, ground clearance remains 120 millimeters, but that’s about all that remains. There’s no longer a comfort feature available, while AdvanceTrac® stability and traction control become driver-adjustable allowing three additional settings.

Additional slip, yaw and oversteer are allowed so drivers can push harder and have more fun sliding the car around.

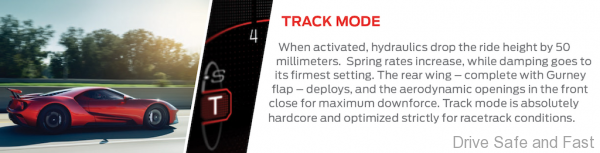

Track mode

While Sport mode can be used effectively for many racetracks – especially those that require a higher ride height – Track mode is absolutely hardcore and optimised strictly for race conditions.

With the transmission in park on pit road, a turn of the knob activates hydraulics that drop the ride height 50 millimeters.  Spring rates increase, while damping goes to its firmest setting. The rear wing – complete with Gurney flap – deploys, and the aerodynamic openings in the front close for maximum downforce. All of this happens in under two seconds.

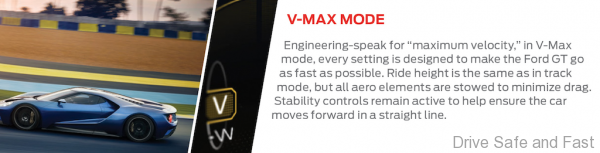

V-Max mode

Engineering-speak for “maximum velocity,” in V-Max mode, every setting is tuned to make the Ford GT go as fast as possible. Like Track mode, selecting V-Max requires the transmission be set in park.

Ride height is the same as in Track mode, but all aero elements are stowed to minimise drag. Stability controls remain active to help ensure the car moves forward in a straight line.

Drive Modes Chart

UseDriving in wet conditionsNormal driving in dry conditionsSport driving in dry conditionsOptimized settings for track use (not for street use)**Optimized settings for achieving maximum velocity (not for street use)**
Stability and Traction ControlActive, cannot be adjustedActive, but can be adjustedActive, cannot be adjusted
Launch ControlNot AvailableAvailable
Ride Height and Suspension DampingHigh with normal dampingHigh with sport dampingLow with track damping
Comfort DampingAvailableNot available
Transmission CalibrationNormalSport
Turbocharger Anti-lagInactiveActiveInactive
Rear WingActive above 90 mphActive above 70 mphAlways deployedDoes not deploy
Air BrakeActivates above 75 mph with moderate braking
** Must be in park (P) to select this mode
