Honda Monkey Returns With a New Engine
After the modern-day success of the sharp-suited MSX125, which proved the desire for a funky, pocket-sized town run-around, it was time for the Monkey name to return, reborn and ready for life in the 21st century city.
Naturally the classic Monkey style had to provide the cues for the new model. A trapezoid silhouette highlights the compact length, while adding depth and substance to its stance. Simple, curved surfaces are designed independently of each other and feature throughout.
The glossy 5.6L fuel tank, finished in the same paint colour as the frame, swing arm and rear shocks, crowns the machine, and proudly wears a historical 3-D Old Wing design Honda logo. Chromed steel high-level front and rear mudguards – plus the evocatively-stamped exhaust shield, circular mirrors and high-rise handlebars – all pay homage to the original.

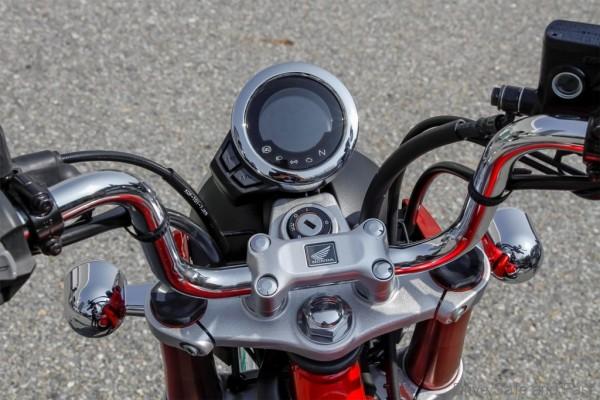

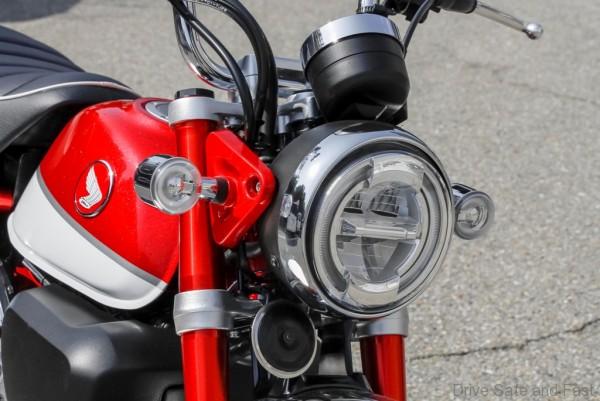

Modern technology is fully present within the evocative reincarnation of the classic look: a digital full-LCD circular meter features speedometer (which winks playfully when the ignition is turned on), odometer with two trip meters and six-segment fuel level indicator; all lighting is LED; the ‘wave’ pattern key (which also wears the Old Wing motif) features an ‘answer back’ system that makes the lights flash at the push of a button to allow easy location in crowded car parks; the single channel ABS system operates with an IMU to mitigate rear ‘lift’ under strong braking.

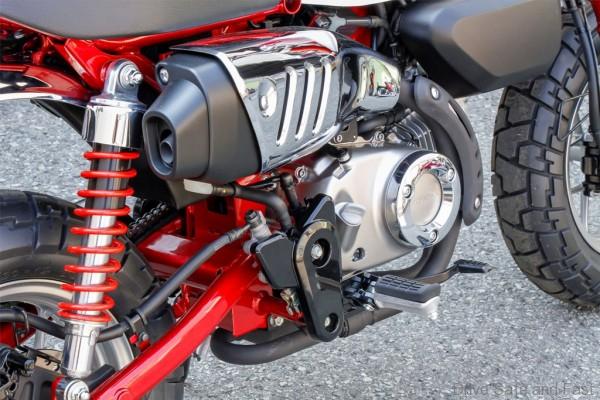

As for the power unit, true to its origins, the Monkey’s horizontal SOHC 125cc single-cylinder engine is simple, robust and tuned to deliver useful about-town performance. Air-cooled, with bore and stroke of 52.4 x 57.9mm and compression ratio of 9.3:1, fed by PGM-FI, it produces 6.9kW @ 7,000rpm and 11Nm @ 5,250rpm. The gearbox is 4-speed and the engine returns fuel economy of 67km/l (WMTC mode).
The Monkey’s steel backbone frame has been tuned for a suitable balance between rigidity and supple feel – perfect for the wide variety of conditions the machine is sure to be ridden in. Oval in cross-section, the swingarm echoes the circular design theme that runs through the bike.

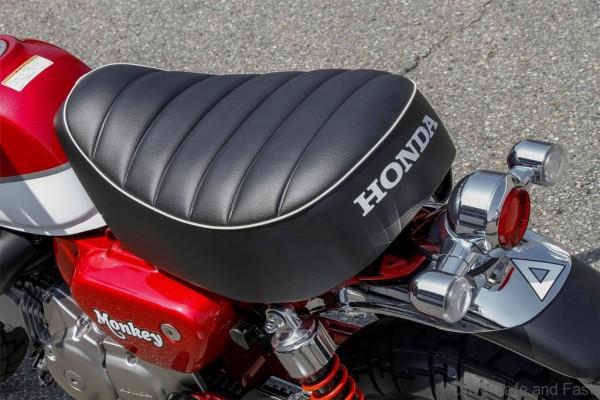

Wheelbase is set at 1155 mm, with rake and trail of 25°/82mm and a minimum turning radius of just 1.9m. Wet weight is a mere 107kg, with a seat height of 775mm. The plush seat is made of high-density urethane for maximum comfort.
USD front forks wear a premium Alumite finish and are matched by dual rear shocks with 104mm of axle travel. Maximum ground clearance is 160mm. A single 220mm front disc and 190mm rear provide secure stopping performance, managed by the IMU-based ABS. Fat 12-inch block pattern tyres make for a smooth ride and are sized 120/80-12 65J front and 130/80-12 69J rear.

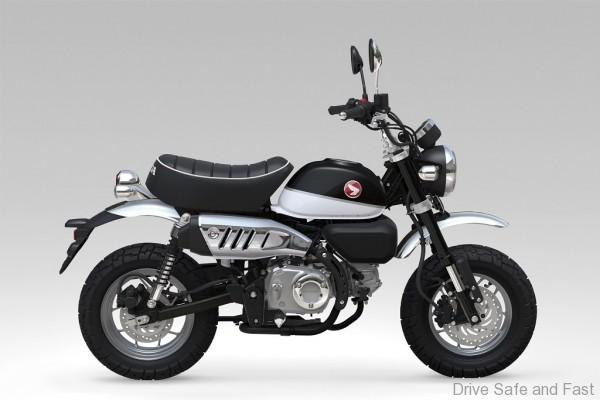

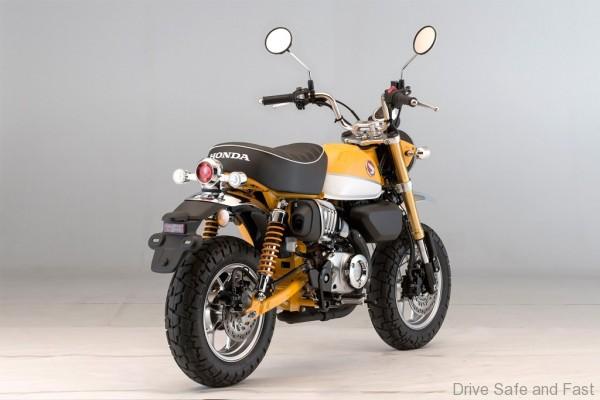

The 2018 Monkey 125 will be available in three colour schemes: Banana Yellow/Ross White, Pearl Nebula Red/Ross White and Pearl Shining Black/Ross White.
