Audi Offers Greater Customisability with Partial Matting Process

Audi customers will be able to drive even more individualised cars in the future – thanks to partial matting. With the #2 special edition of the Audi Q2, the brand is now using this innovative painting process for the first time in volume production. A fine beam minimally roughens the top layer of paint and creates a matt image. In this way, lettering, logos or photos can be displayed on the painted sheet metal with pixel accuracy and abrasion resistance. Audi is the first automobile manufacturer to offer its customers this kind of individualisation.

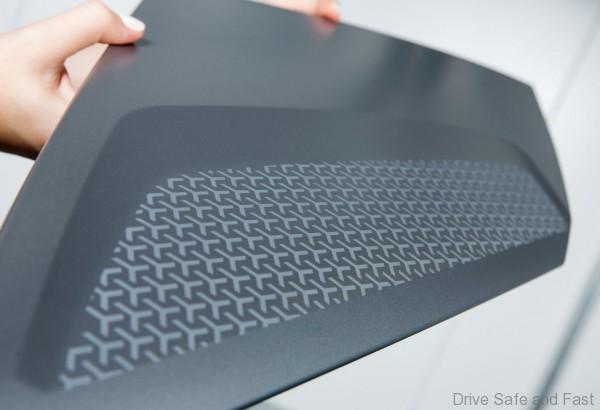

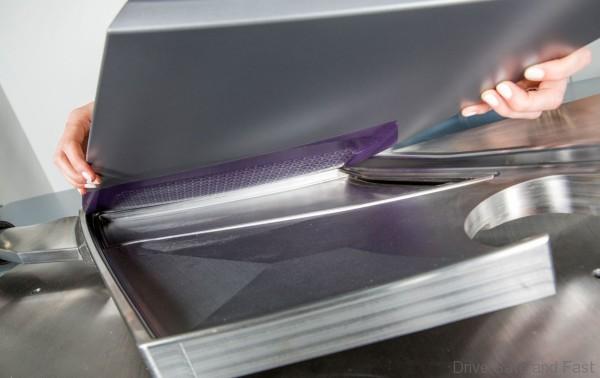

Partial matting was developed by a team in the Technology Development division at Audi’s Ingolstadt site. The technology is meanwhile patented. In the first step, an employee sticks a template made of thin plastic film onto the painted component – in this case a sideblade of the Audi Q2. A specially developed system sprays the component under vacuum – similar to sand blasting – with a fine powder of crushed glass. This removes a few thousandths of a millimeter from the top layer of clear lacquer and at the same time roughens it slightly. This difference in surface structure allows the motif to stand out clearly after the template is removed. The #2 special edition of the Audi Q2 features a large pattern of crosses. Customers in Germany have been able to order this special edition since mid-October and other markets will follow successively.

As early as the summer of 2016, Audi put the first cars with partial matting onto the road – in a very small number of only 24: The “selection 24h” edition of the Audi R8 Coupe V10 plus, a tribute to the motorsport successes of the Audi R8 LMS racing car, attracted attention with its matted “R8” lettering on the CFRP sideblades. The partial matting was mostly done by hand at that time. Since then, the five-man team has improved, automated and greatly accelerated the process: Matting a sideblade for the Audi Q2 now only takes about a minute. The employees in the Ingolstadt paint shop can also effortlessly process larger components: With the “TT 20 Years” special model on the 20th anniversary of the TT series for example, the Audi rings on the side skirts are partially matted.

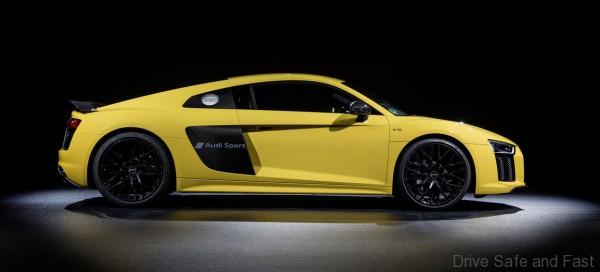

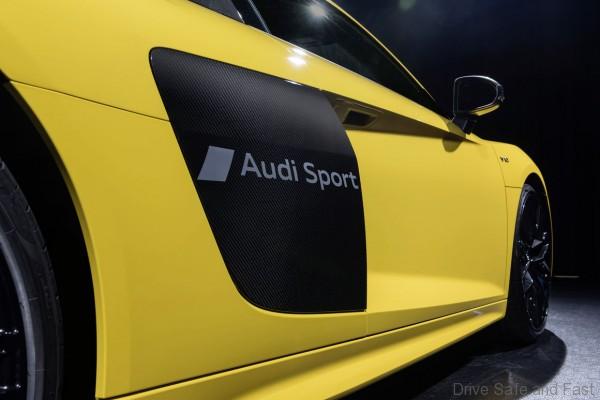

“Audi Sport” on the side of this R8 was created using partial matting

The employees using the newly installed equipment do not have to work according to the timing dictated by the assembly line. It allows them to work flexible hours, thus helping the company to meet the challenges of demographic change. The process has also developed significantly from an ecological point of view. Thanks to ingenious vacuum technology, the fine abrasive matter is immediately sucked in and reused.

This form of individualization is available for the Audi R8 in the “Audi exclusive” program. Customers have a choice there of the motif to be matted.
