Jaguar Shows Off Their New Design Studio
Jaguar’s legendary designer Ian Callum may not be working for them anymore, but the company’s push towards better design is still ongoing. They recently showed their new design studio in Gaydon, where the entire design team finally has a space to come together for the first time.
Here’s the press release with more.
Led by Jaguar Design Director, Julian Thomson, the new studio is the most advanced automotive design centre in the world, developed to enhance the human creative design process with world-leading technologies.
The ‘Heart Space’, a collaborative hub at the centre of the new Jaguar Design Studio, will bring together the diverse and creative 280-strong team as it designs future generations of Jaguars.
Surrounding the Heart Space are bespoke working environments for the Interior, Exterior and Colour and Materials teams, plus Design Visualisation and Design Technical disciplines.
Jaguar Design is made up of designers from across the globe and from a range of industry backgrounds, including fashion, watch-making, sports and gaming. Being drawn from such different spheres of design helps the team deliver its ‘Jaguar’ interpretation of Britishness using contemporary materials and processes. Those processes utilise industry-leading technology, including custom-made clay modelling machines allowing 20 models to be worked on at once, virtual reality (VR) systems and an 11-metre 4K digital display wall known as ‘The Electric’. The floor area of the new Jaguar Design Studio measures over 12,000m2 – an increase of around 33% of the total previous studio spaces based in Whitley.
The main studios are named Studio 3 and Studio 4, taking inspiration from the numbers of the Le Mans-winning Jaguar D-types of 1957 and 1956 respectively, as well as paying homage to studios 1 and 2 at Whitley, which was the home of Jaguar Design from 1985. The considered naming approach is continued in the meeting rooms, with half named after iconic Jaguar models and the other half taking their names from important people in Jaguar history, including founder Sir William Lyons, designer Geoff Lawson and the actor Steve McQueen.

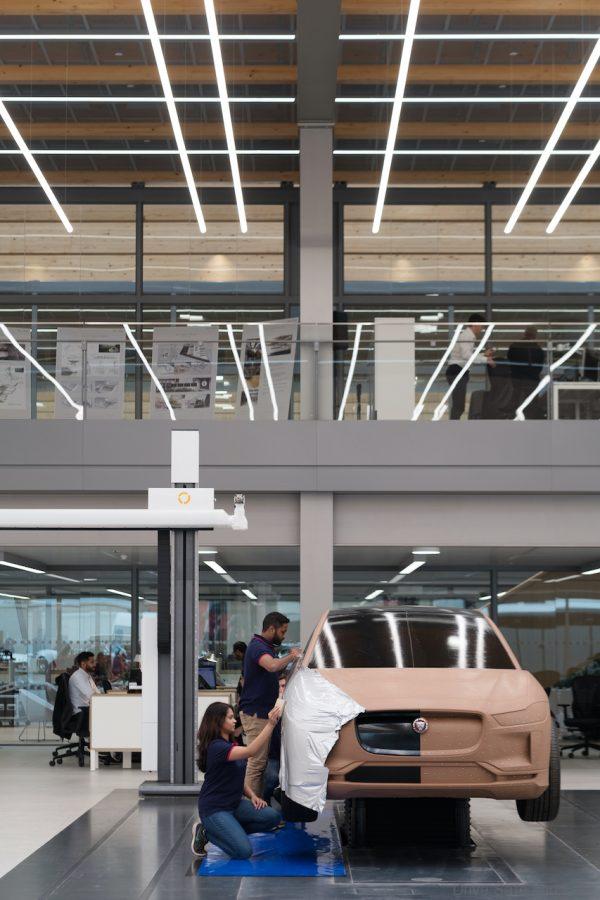

Studios 3 and 4 house a total of ten clay modelling plates, each measuring 20-metres long and capable of accommodating two clays, with a load capacity of 4.5-tonnes. For the first time, designers can now place interior and exterior models next to one another to improve synergy and collaboration between the two disciplines.

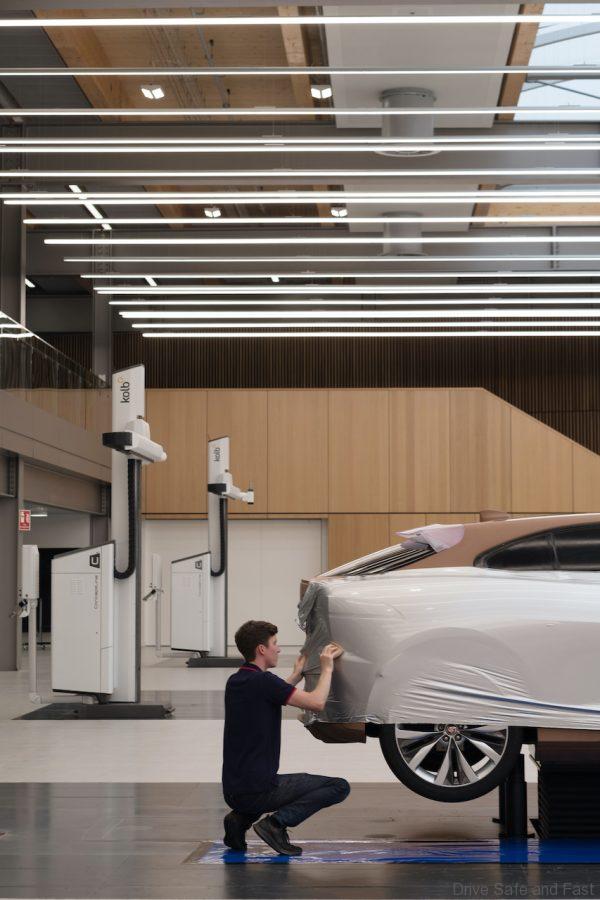

Each plate is fitted with floor-integrated machine rails to allow double-sided processing of models by the 3+2-axis Kolb Concept Line CNC clay milling machines, each fitted with a 1kw motorised spindle capable of 16,000rpm. The advanced system can switch between measuring and milling both quickly and easily.
The plates also feature floor-integrated lifts for the clay models. These provide continuous height adjustment, enabling the most ergonomic working positions for the Jaguar modellers.
The studios are fully temperature controlled to ensure clay remains in the ideal state to be worked by the 46-strong team of sculptors, while lighting is provided at exactly the right brightness and colour temperature for optimal vision.
Studio 4 faces north to ensure the purest light flowing in from the outdoor viewing area through huge glass doors. Models can easily be taken outside to be viewed in natural light and from a range of distances and angles. In total, the new Jaguar Design Studio has 906m2 of glazing, including three full-length skylights which flood the studio with natural light. The deliberately light and warm nature of the studio is completed by the extensive use of structural wooden beams.
Viewing models from various heights is as crucial as lighting, with the plan view of Jaguars historically incredibly important to designers, from the early sketching stages through to model-making. Now, for the first time, designers will be able to scrutinise the models from alternative heights from the Mezzanine, View Room and The Steps – an amphitheatre-style seating area.
In addition, VR plays an increasingly important role in Jaguar Design with digitalisation teams appearing at every stage of the process from sketching through to launch animations. A VR rig enables designers and studio engineers to test ideas in the virtual world much faster and more efficiently than ever before. From the early conceptual stage, the Computer-Aided Surfacing (CAS) team convert the design sketches into digital 3D models while the in-house Design Visualisation and Animation (DVA) team works closely with designers and data teams to render and animate the sketches and 3D models.
The new Jaguar Design Studio will place a greater importance on advanced material technologies, too. The Colour and Materials team have more space and technology to investigate and test new and sustainable resources that continue to demonstrate the heights of luxury and tactility for the next generation of vehicles, while meeting Jaguar’s demanding quality standards.
The Colour and Materials team work across both the exterior and interior, playing a vital role in creating each vehicle, from devising new paint colours, to conceptualising the smallest beautiful interior details – the Jaguar print in an E-PACE centre console, for example.
The Jaguar Design Studio, designed with Bennetts Associates, is part of the wider Gaydon Engineering and Design Centre redevelopment.
