Audi RS e-tron GT Put Through its Paces on Track
The EV segment, which has been dominated by the Tesla Model S for many years, is about to get more exciting with the imminent arrival of the Audi e-tron GT. The fully-electric is still at least a month away from launch but a recent preliminary test run at Audi’s Competence Center Motorsport provided a glimpse of the car’s dynamic capabilities.

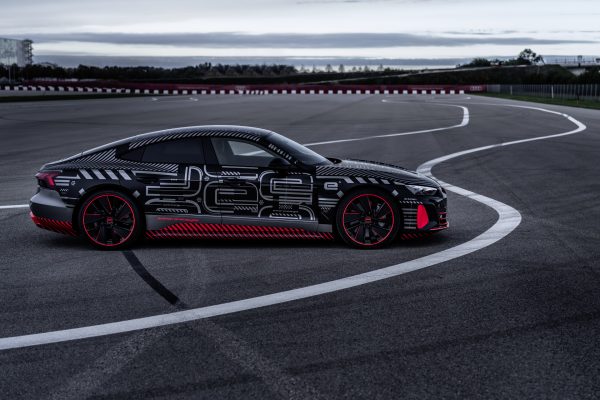

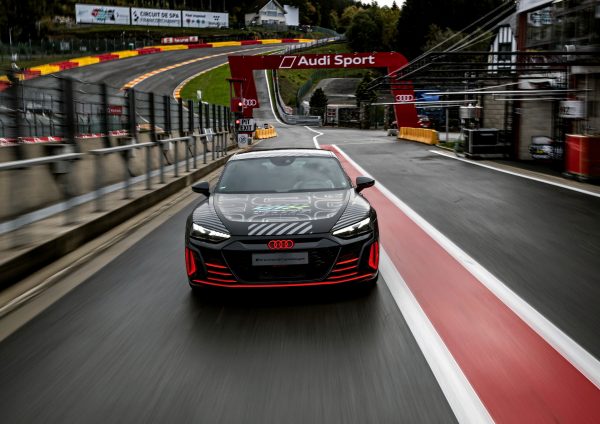

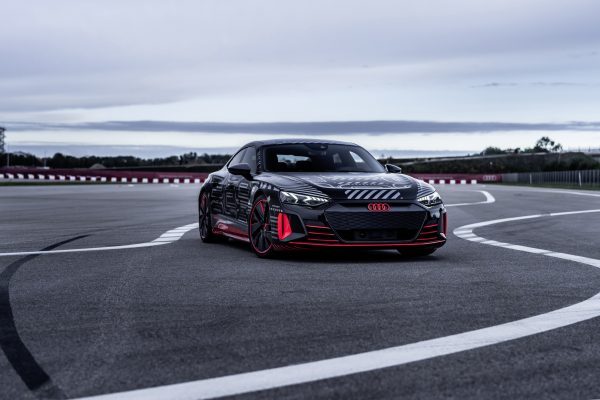

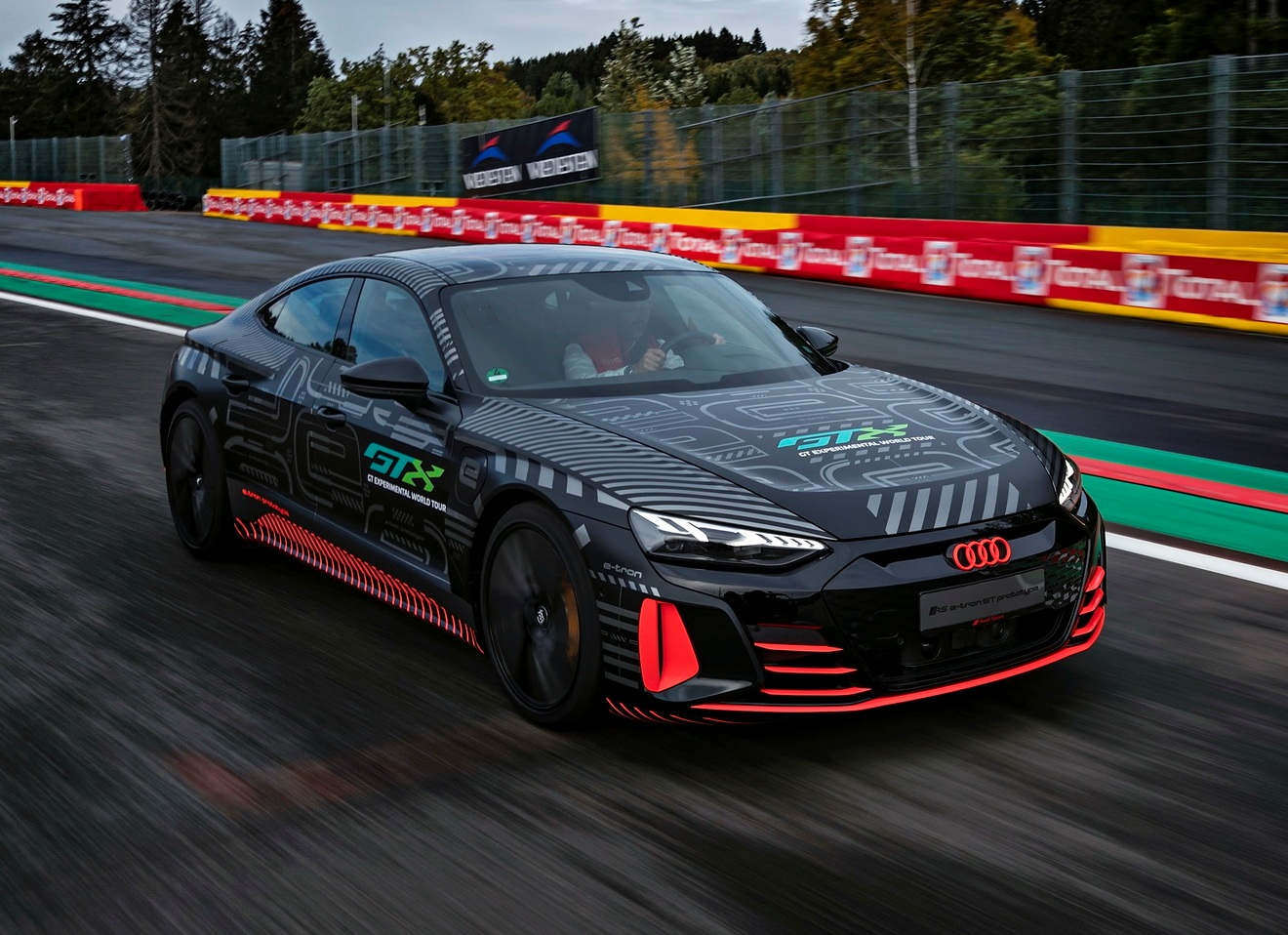

To get the best out of the RS version of the e-tron, Audi invited Audi Sport ABT Schaeffler’s Formula E driver, Lucas di Grassi. The 2016 Formula E world champion spent five laps behind the wheel of the Gran Turismo before engaging with the men responsible for the development of the car; Dennis Schmitz from Audi, Jaan-Mattes Reiling from Audi Sport GmbH and Christian Schröder from development partner PSW, an Audi subsidiary. You can read the full interview in the press release below.

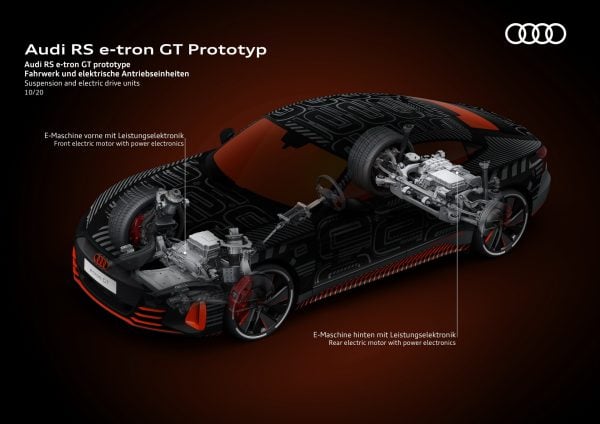

As a refresher, the e-tron GT shares the same J1 platform and twin electric motor setup as its German cousin, the Porsche Taycan. However, in Audi’s case, the electric motors combine to churn out a total system output of 590 hp or 645 PS/830 Nm in the performance-oriented RS guise. While the figures seem impressive, they are still modest compared to the Taycan Turbo S, which offers 761 PS.
With the help of a single-speed transmission on the front axle and a two-speed transmission on the rear axle, the e-tron GT is capable of completing the century sprint in just 3.5 seconds. Again, this is inferior compared to the 2.8 second needed by the Taycan Turbo S to reach the same speed. Top speed is electronically limited to 250 km/h.

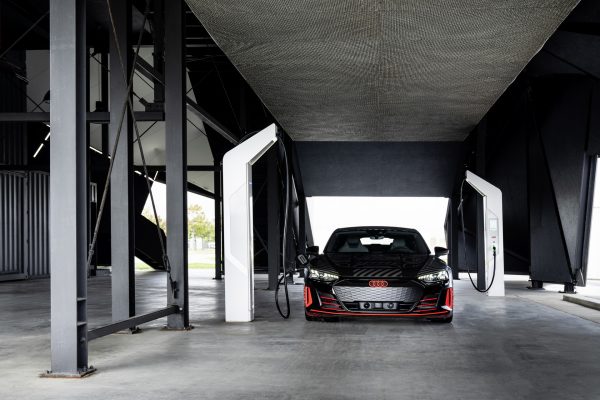

Powering the electric motors is a 83.7-kWh lithium-ion battery located in the underbody. According to Audi, the battery pack gives the e-tron GT an estimated driving range of 400 km based on WLTP driving cycle. The car is expected to carry the Taycan’s 800-volt charging system, which is able to provide 80% charge in approximately 20 minutes.
Audi previously said that the e-tron GT will start rolling off the production line at its Böllinger Höfe plant at the end of this year. To accommodate the EV, the automaker has expanded and upgraded the factory with digital processes and a new body shop.

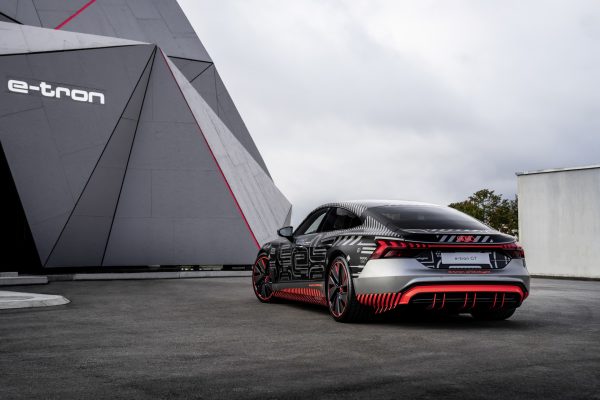

A late-summer day in Neuburg an der Donau. Parked in front of the building of Audi’s Competence Center Motorsport is a production-based RS e-tron GT, surrounded by four men. Audi Sport ABT Schaeffler’s Formula E driver and champion of the 2016/17 season Lucas di Grassi is engaged in a discussion with three e-tron GT developers: Dennis Schmitz from Audi, Jaan-Mattes Reiling from Audi Sport GmbH and Christian Schröder from development partner PSW, an Audi subsidiary.

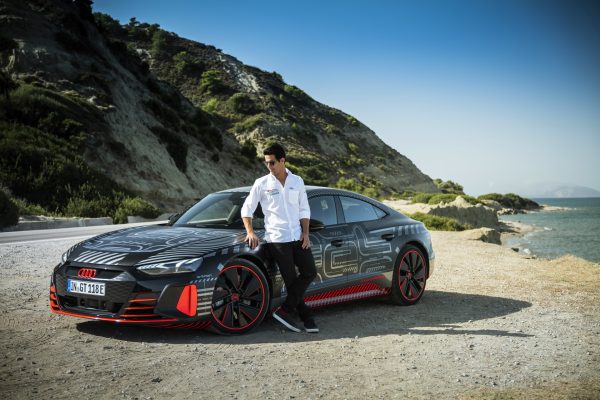

Lucas di Grassi is a pro all the way – both at the wheel and off the race track. The native Brazilian, now living in Monaco, has been driving for Audi since 2012. In 2014, he won the inaugural race of the then newly launched Formula E, followed three years later by the title win with Audi Sport ABT Schaeffler. On 32 occasions, di Grassi stood on the podium for Audi in the past six years, which makes him the most successful driver in the electric racing series.
Powerful performance also distinguishes the RS e-tron GT prototype. It is a superior Gran Turismo, with exceptional road performance in the RS version. The RS e-tron GT prototype is an example of the brand’s premium mobility and meets customers’ demands for high performance. Its dynamics, precision and high efficiency make it a pioneer with a strong character that shapes the future of the brand.
The professional racer’s thinking goes far beyond motorsport, too. Lucas di Grassi is an international UN ambassador for clean air, so technological innovation and sustainable climate protection are a natural pairing in his book. Needless to say, the technology enthusiast from Monaco has a strong interest in Audi’s next electric car project, the e-tron GT. In Neuburg, he has the opportunity to drive the fully electric Gran Turismo as an RS model on the test track. For its developers Schmitz, Reiling and Schröder, it marks the moment of truth: in the driver’s judgment, will the production-based RS e-tron GT achieve the objectives they pursued?
Dennis Schmitz: Well, Lucas, what do you say after the first five laps?
Lucas di Grassi: The car is fun! Obviously, such a Gran Turismo is totally different to a race car. Even so, there are plenty of parallels, especially the powerful acceleration which, just like in our case, is fully available for a long time. From zero to a hundred kilometers per hour in clearly less than four seconds, and even continuing on the fifth lap – how did you do that?

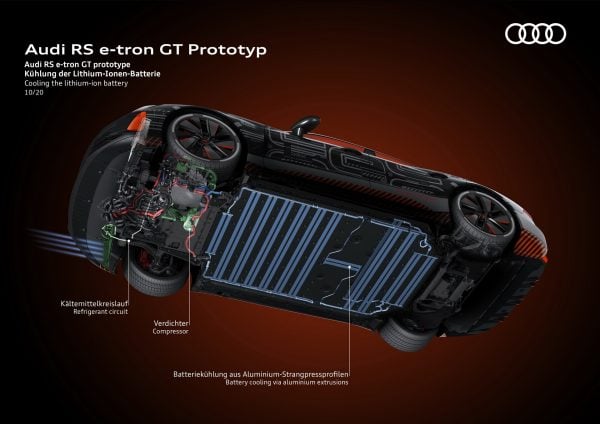

Christian Schröder: As you know, you need powerful thermal management for high and reproducible output. In the e-tron GT, we have two coolant circuits for the technical components operating on different temperature levels. The cooler one controls the temperature of the high-voltage battery and the warmer one serves the electric motors and power electronics. Plus, there’s a cold circuit and a heating circuit for the interior, which I suppose your race car doesn’t have.
Schmitz: We can flexibly interconnect these four circuits via valves, for instance, as a highly efficient heat pump for the interior. However, the cooling of the high-voltage components under high loads and the cooling of the battery during fast DC charging processes are, no doubt, the most challenging requirements. After all, we reach output levels around 270 kW here that generate quite a bit of heat.
Di Grassi: That’s pretty sophisticated! With so much high tech, the e-tron GT in terms of cooling is even more innovative than my Formula E race car. Obviously, temperatures in Formula E are even more extreme. That’s why we actively cool the battery down below the outside temperature during the charging process using dry ice. In this way, we gain more latitude with the system temperature in the race, because that’s when we heavily stress the powertrain by constantly changing between flat-out driving and recuperation. Obviously, this heats up the battery and costs energy. The more extreme the conditions, the more I have to pay attention to efficiency and management of my energy supply so that I’ll still have enough power left on the final laps.
Jaan-Mattes Reiling: Prediction is important in our case, too, albeit on a different level. We use a special functional feature to ensure that the driver can charge the battery with utmost capacity during a trip. When the car travels a longer distance with active navigation, the e-tron route planner issues suggestions of where to charge the battery. About half an hour before the car arrives at the selected charging station, the thermal management system starts adjusting the temperature of the battery to precisely match its state of charge and the charging station’s capacity.
The Audi e-tron GT went through an unusually short development process. Its design was frozen at a very early stage, not least because Audi largely replaced physical models by virtual ones. The development process was very lean, with fast decisions using short channels. Led by Audi, PSW took over an important part of the work. Audi Sport GmbH was responsible for the suspension setup – and is rewarded with great praise for it by Lucas di Grassi.
Di Grassi: What I particularly like is the car’s handling. Well, you’re saying that, as a Gran Turismo, the car also has to deliver good ride comfort. For me as a race driver, that’s not such a key characteristic. But I must say that the car’s grip and precision in cornering are definitely very impressive.

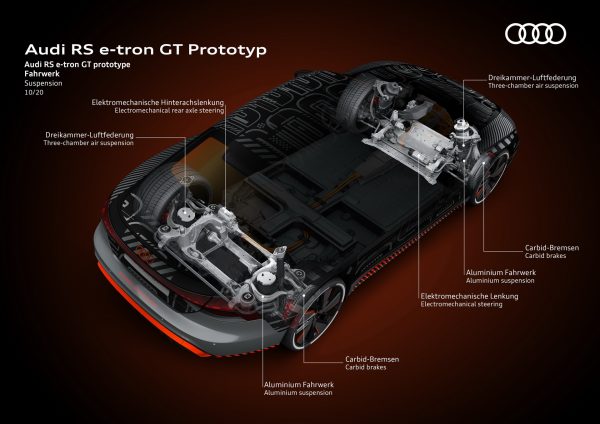

Reiling: Thanks, Lucas, I’m glad to hear that! During the development we tried to merge all the strengths into a consistent overall picture. And in terms of technology, we were able to draw on ample resources. For instance, the three-chamber air springs are the gold standard in their field. They enable soft basic suspension comfort, provide us with greater degrees of freedom with the setup and can adjust the body to various ride height levels. But, most importantly, they perfectly interact with the controlled dampers. Both systems are managed by a central chassis control system and can be controlled in several modes via Audi drive select. Obviously, we selected the most aggressive program for you.
Schmitz: In the e-tron GT, our customers can practically get all the state-of-the-art technologies available today. They also include all-wheel steering with which the rear wheels turn in – opposite to the front wheels at low speed for enhanced dynamics and in the same direction at higher speed for the sake of stability. Front-wheel steering has a sporty-direct bias but without an acute ratio. This is another typical characteristic of our Gran Turismo philosophy.
Di Grassi: Plus, the e-tron GT prototype delivers really good braking performance – strong and precisely controllable. That was probably no mean development feat for such a large electric car either …
Schröder: Well, you drove the production-based RS model with the carbon fiber ceramic brake discs – they, too, are among the best that’s available. The e-tron GT comes with steel discs as standard equipment. Discs with a tungsten carbide coating for enhanced performance are an available option. Plus, we probably put the car on the most beautiful wheels ever seen at Audi. I find the large 21-inch wheels to be the most fascinating ones due to their stunning design and sophisticated manufacturing. The 20-inch wheels are the best in terms of aerodynamics and the 19-inch wheels at the front weigh only about 12.5 kilograms each. This yields real handling benefits and, above all, advantages in terms of consumption and range.
Energy consumption is a keyword that’s always of interest to Lucas di Grassi: not only in his job as a race driver in Formula E but also in his role as a forward thinker in climate protection through innovation. In this context he espouses the same philosophy as the Audi Group: Electric mobility is the right path toward the future of electric mobility – provided the electricity it uses comes from renewable sources. At the United Nations, di Grassi is an ambassador for clean air and in Brazil, he has been dedicating his activities to new technologies as an entrepreneur. In his native São Paulo, he initiated the “Zero Summit” technology congress.
Di Grassi: At the beginning of the 2010s, I helped get Formula E off the ground because it was clear to me that the future would belong to electric cars – both on the road and on the race track. And the further this development progresses, the more speaks in its favor.
Reiling: Well, we’ve been sharing a joint success story with you for several years now. In 2017, we were the first German manufacturer to enter Formula E with a factory-backed commitment in order to show how dynamic, fascinating and emotional electric driving can be.
Schmitz: Motorsport also benefits the development of our production cars and that’s where we’d like to spearhead the transformation. By 2025, Audi will launch some 30 new electric cars and plug-in hybrid models and electrify every model range in the process. Obviously, electric mobility is truly sustainable only with clean electricity. Sustainability is our claim as well as an absolute necessity for our continuing success.
Schröder: Lucas, you get around the world quite a bit and are also familiar with the environmental issues on other continents. In 2019, you traveled to New Delhi for the United Nations and filmed the “The Race for Clean Air” documentary there. What was that all about?
Di Grassi: I wanted to inspire a particular thought to instill courage in all of us. New Delhi is one of the cities with the highest air pollution – and if solutions for better environmental protection can be found and applied there, then it’s possible anywhere. There’s no doubt in my mind that sustainability has to be based on technology and innovation, because sustainable solutions will only gain traction if they’re not just a compromise but also the better solutions.
Five statements about the RS e-tron GT from Julius Seebach, Managing Director of Audi Sport GmbH
“Audi Sport stands for high performance: in race cars and in production cars. At Audi we are pursuing a consistent electrification strategy in the high performance segment. The production-based Audi RS e-tron GT is the sporty and technological flagship of the electrification strategy at Audi.”
“Electrification makes our portfolio future-proof, it’s going to thrill our customers!
The Audi e-tron GT conveys the brand’s image in a highly emotive way and serves as the basis for our first fully electric high-performance model.”
“The production-based Audi RS e-tron GT is a milestone for us. It paves the way into the all-electric RS world and it is our commitment to the company’s CO2 target.”
“The RS models are Audi’s sportiest and most emotive models with the most powerful engines, highest dynamics and greatest driving pleasure – and all this combined with absolute everyday usability. With the RS e-tron GT prototype, we’re transferring these characteristics into the electric age. This is a revolution for us in the high-performance segment.”
“For us at Audi Sport, the production-based Audi RS e-tron GT is the first step into the fully electric RS world. With it, we’re also delivering on our promise of launching future RS models soon after the base models. This is high-performance in the team and in the product!”
