Lamborghini Huracán STO Is An Endurance Race Car For The Road
It feels like the ‘baby’ Lambo, the Huracán has been around for quite a long time, but it was actually only released in 2014 and got its facelift last year.
Perhaps the reason why it feels so familiar is because Lamborghini have so many variants of thing out. Not just a coupé and spyder, but high-performance and rear-wheel drive versions too.
Another reason could be because it beat its predecessor’s sales records before the facelift was even released. Well, whatever the case, fans of the Huracán will be glad to hear that there’s now a new, version out that takes lessons learned from the track and applies it for the road. It’s the Lamborghini Huracán STO and that stands for Super Trofeo Omologata.
The Huracán STO comes with the V10 motor tuned to 640 hp and 565Nm fo torque in its rear-wheel driven format. This enables a 0-100km/h time of just 3 seconds and a 0-200km/h time of 9 seconds. Its top speed is 310km/h. It’s still not as torquey as the Huracán Performante, which also has a faster century sprint time of 2.2 seconds, a faster 0-200km/h time of 7.9 seconds and a top speed of 325km/h. That being said, this thing is rear-wheel driven and comes with other performance advantages from its race-related design goals.
In fact, the car is a collaboration between Lamborghini’s Research & Development, Squadra Corse and Centro Stile departments.

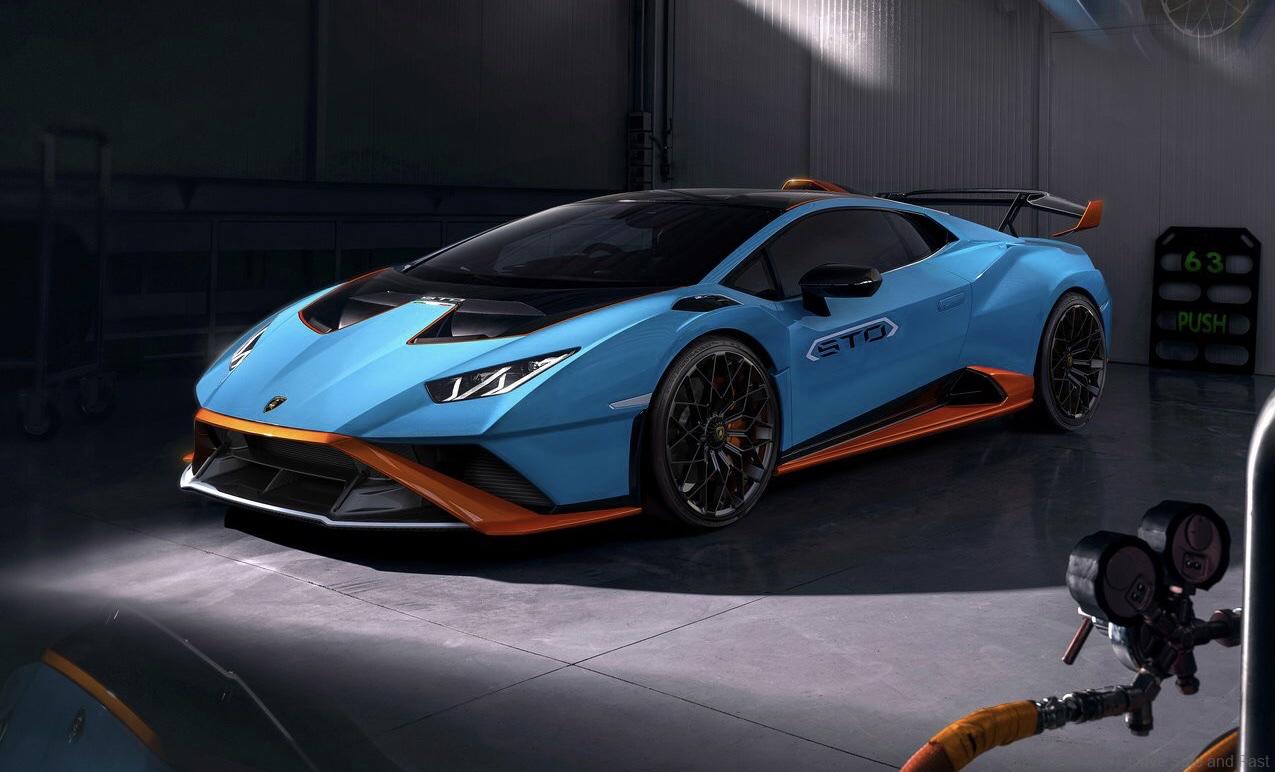

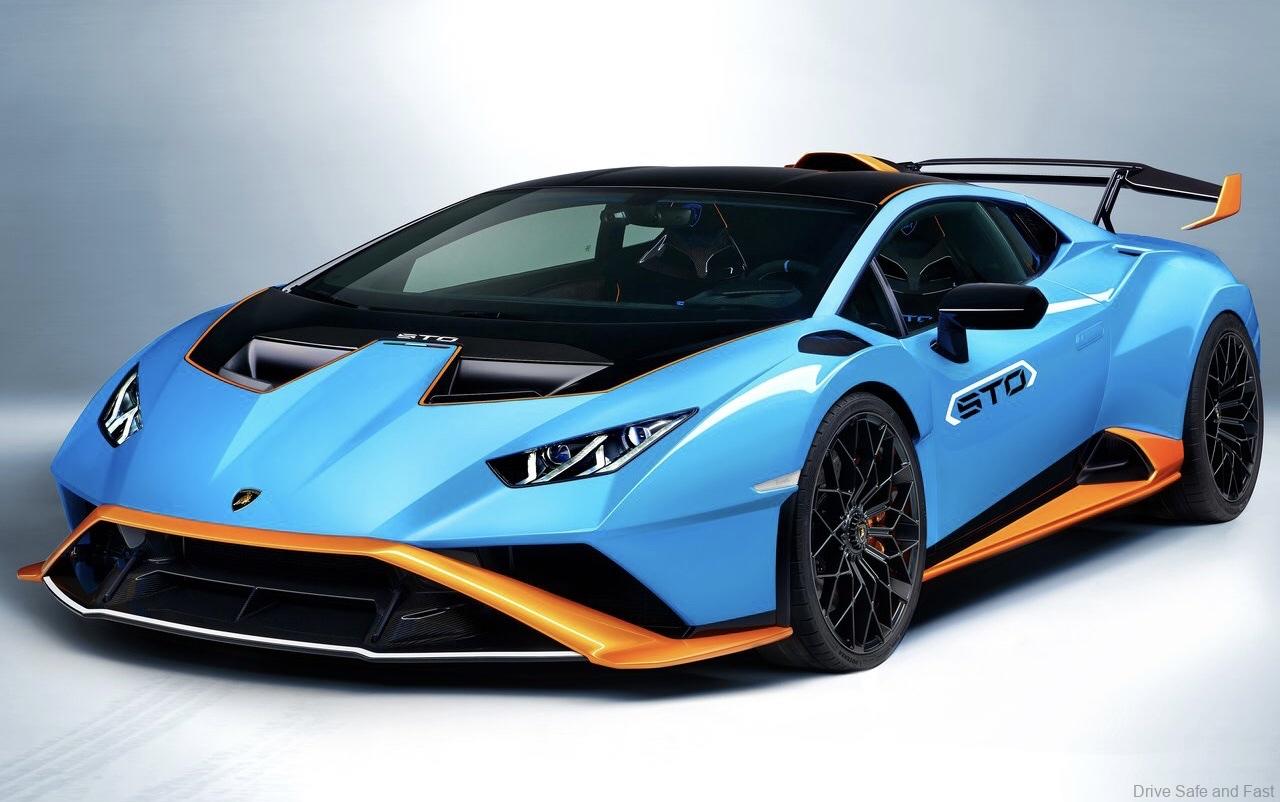

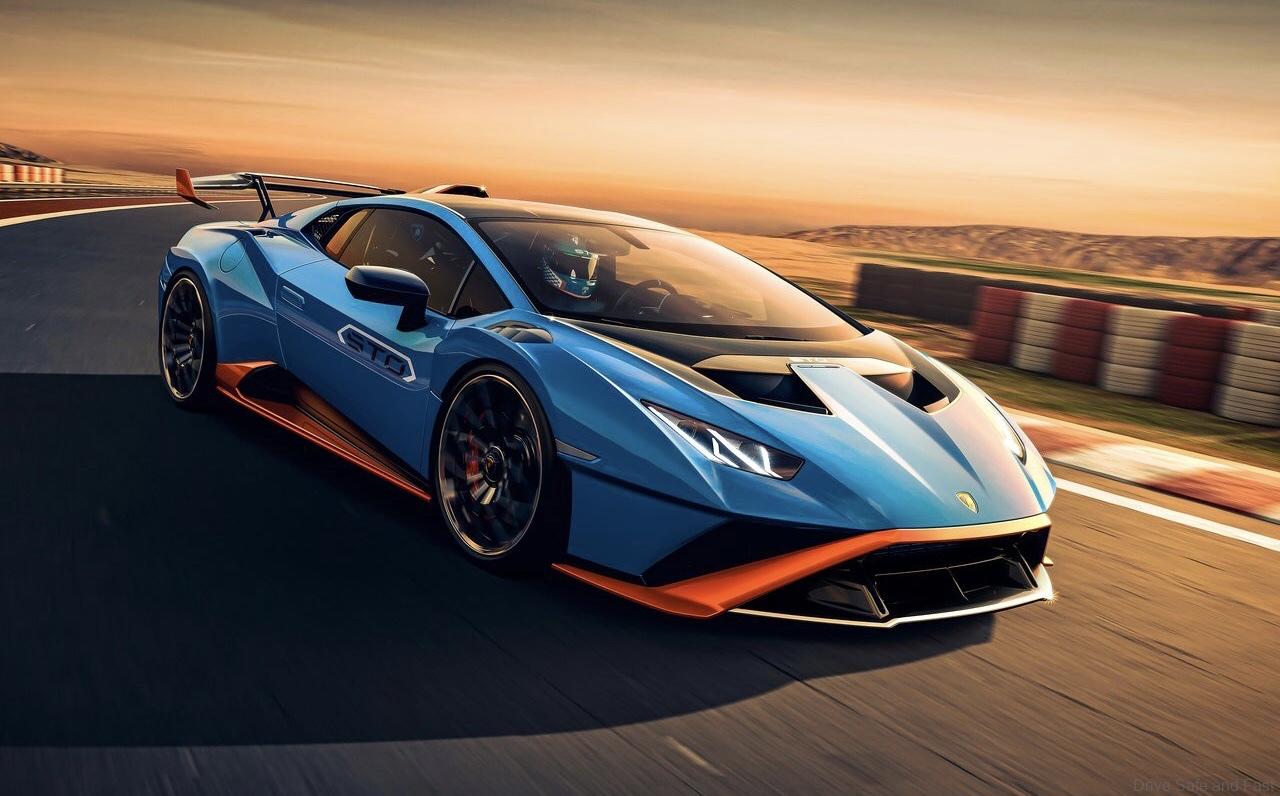

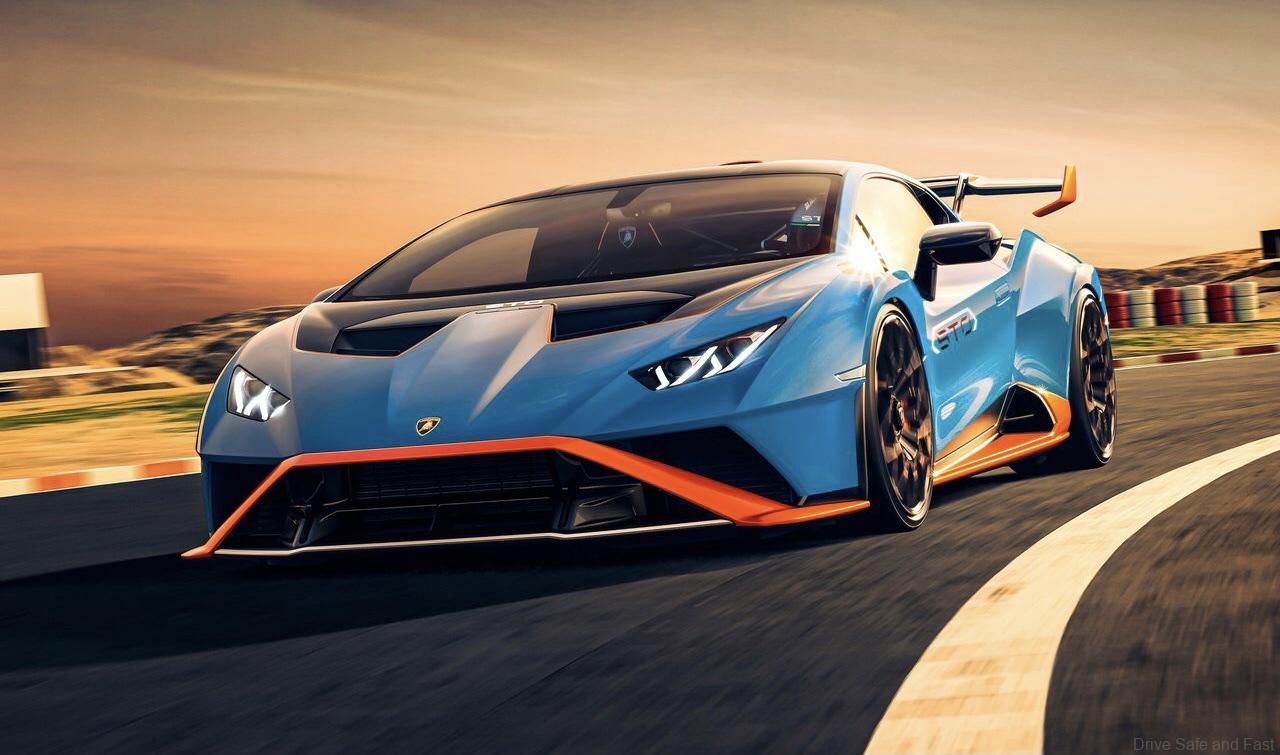

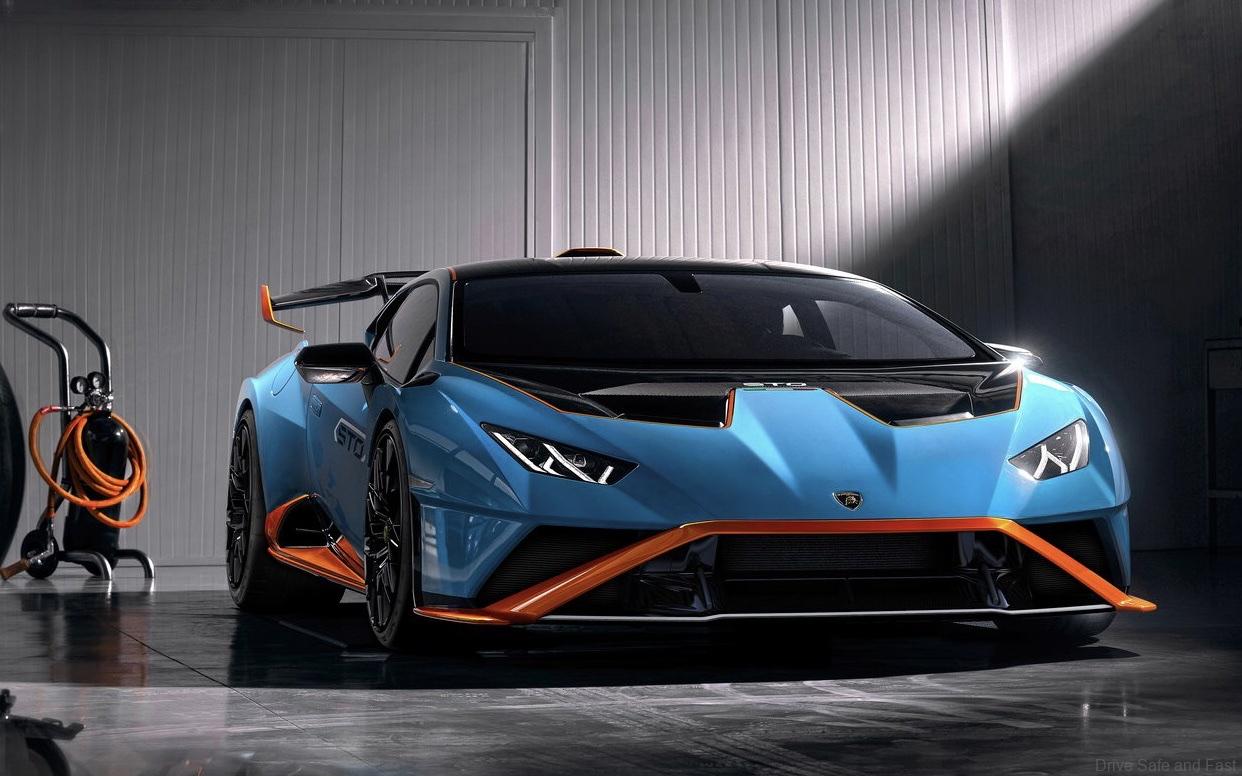

One thing that immediately pops design-wise is the fact that the hood, fenders and part of the front bumper are all one single piece called the cofango. This was a feature on the Miura and Sesto Elemento but it’s also employed in motorsport.

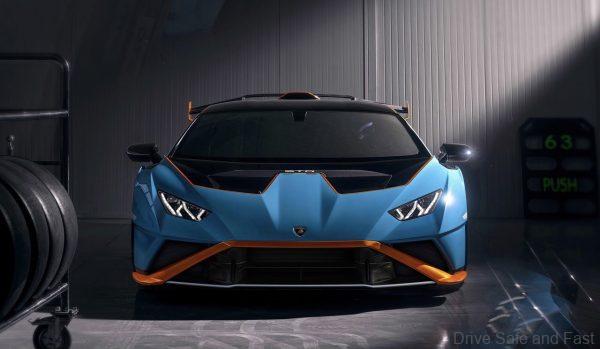

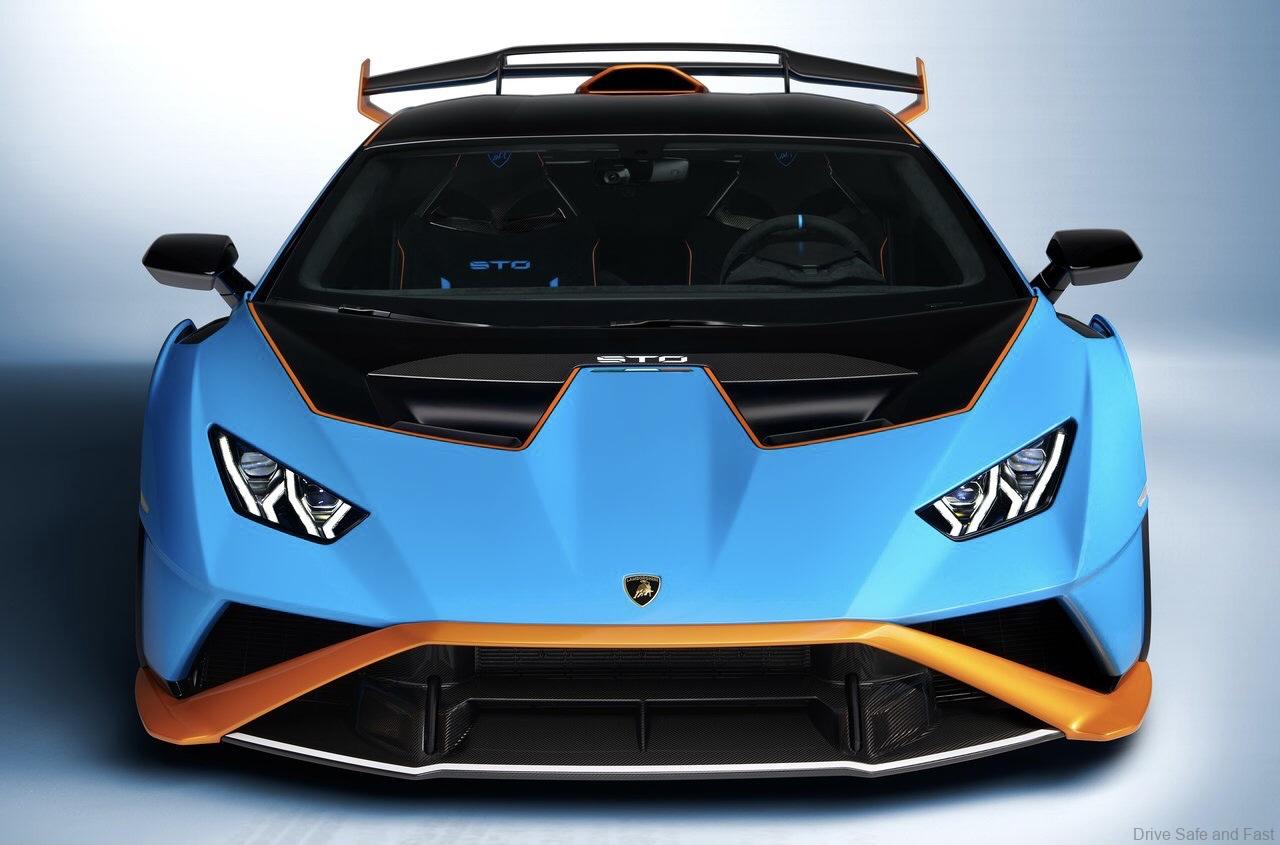

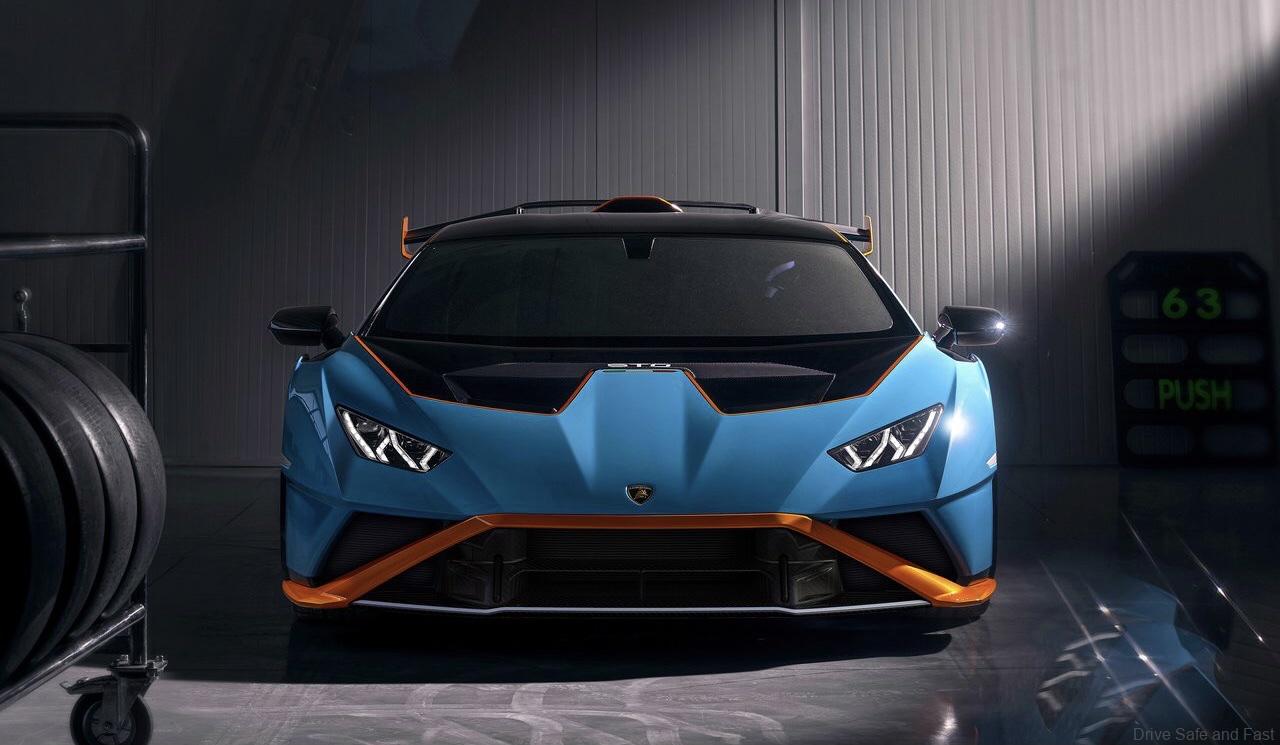

The Huracán STO is designed with aerodynamics and airflow at mind for better endurance-racing performance. As such, there are new air ducts on the hood and a new front splitter. The underbody has also been redesigned to this end.

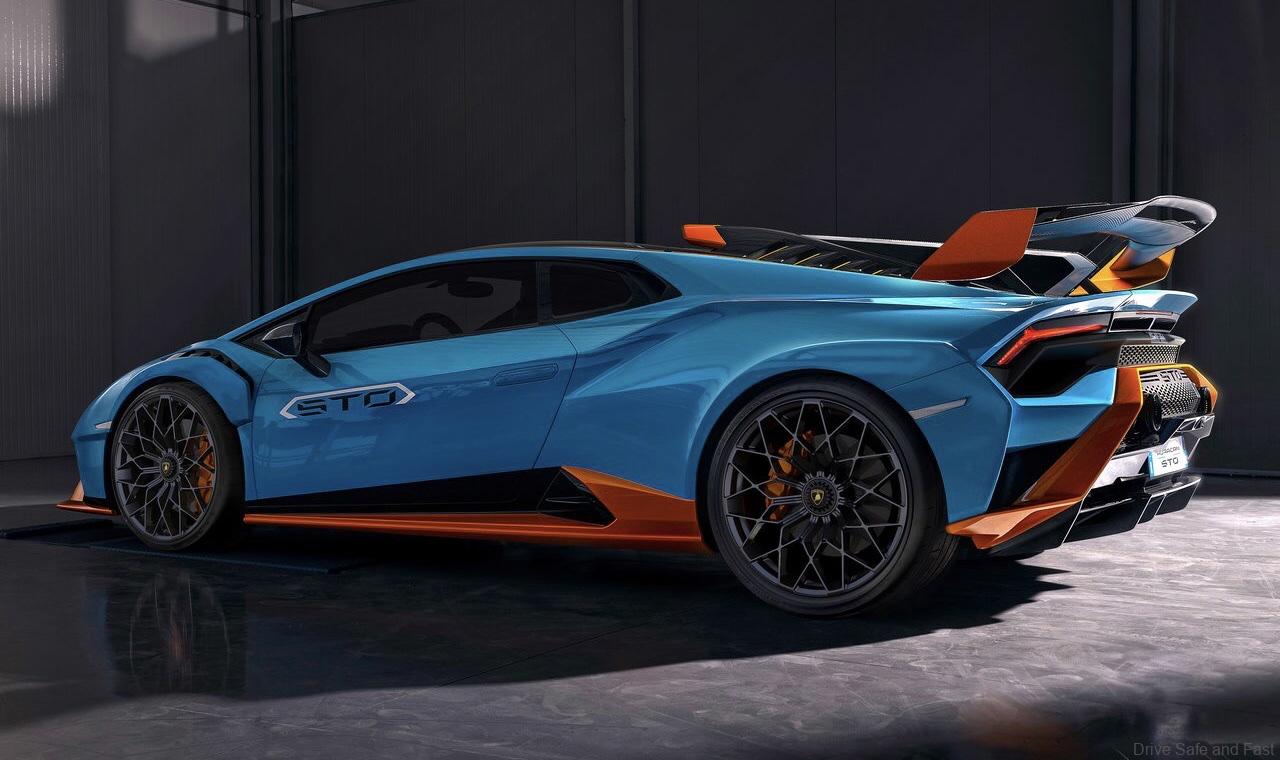

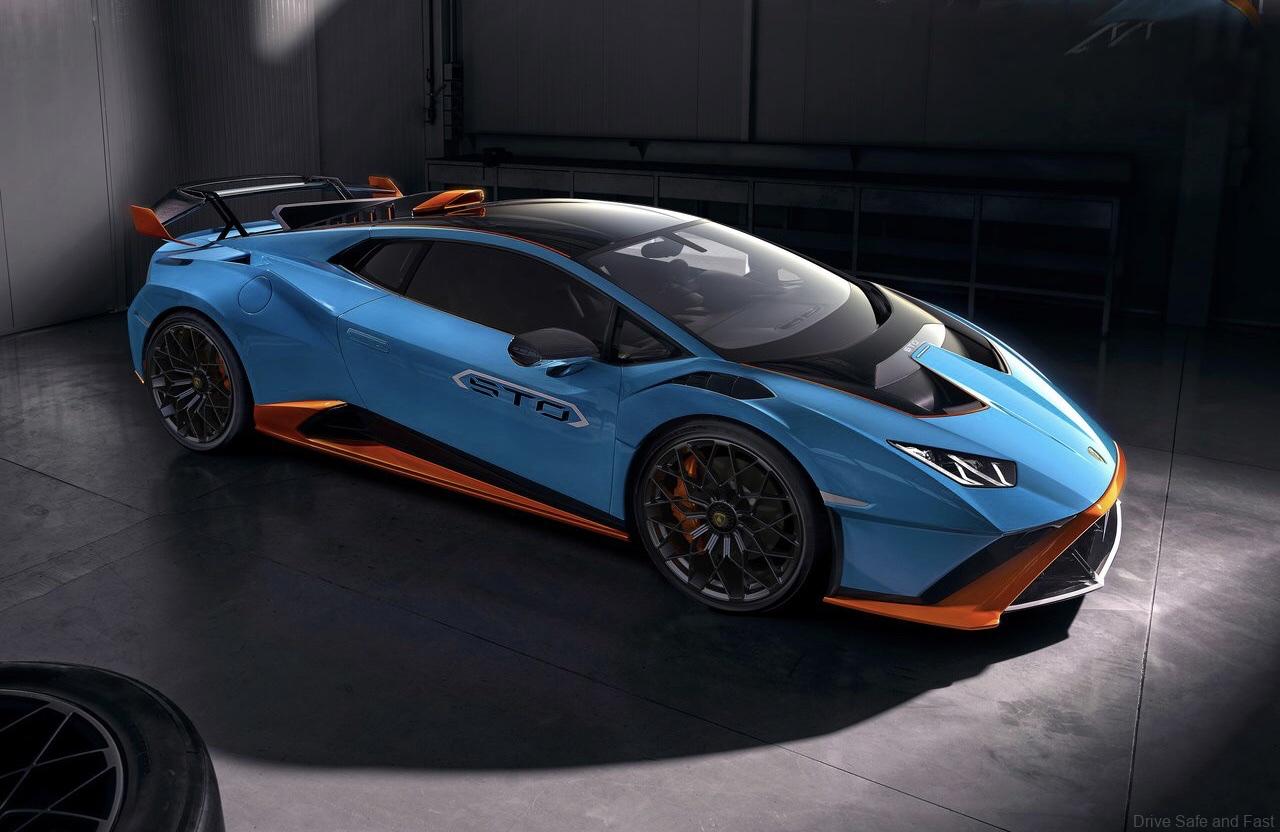

The centrepiece is the new rear hood design with a huge new air scoop with air deflectors on the rear bonnet’s frame. It all looks quite wild, but it’s functional.
For more on how Lamborghini optimised the Huracán STO, check out the information in the press release below.

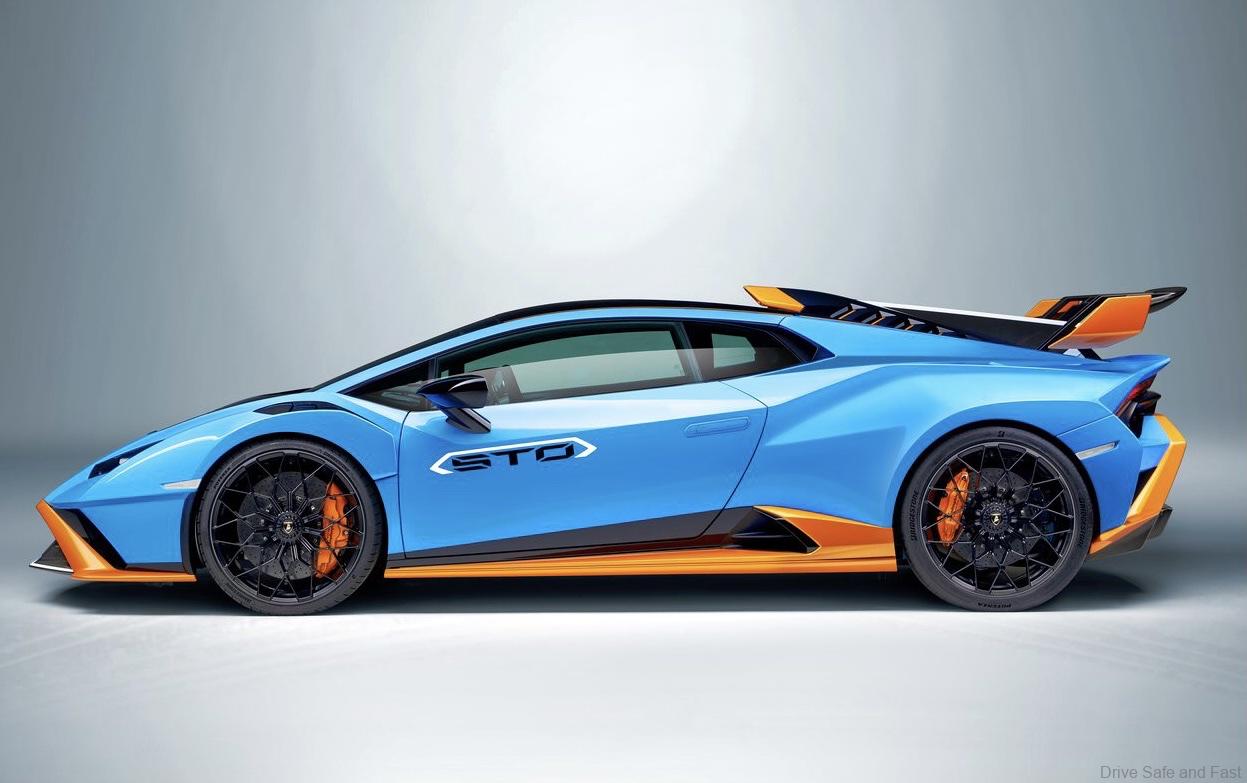

Rear fender with NACA air intake
A new rear fender derived from the Super Trofeo EVO achieves both reduction of the front area of the car and consequently the drag, while increasing rear downforce and the car’s overall aerodynamic efficiency. A NACA air intake integrated into the STO’s rear fender serves as an engine air intake, with the shortened duct allowing a 30% decrease in static pressure losses.

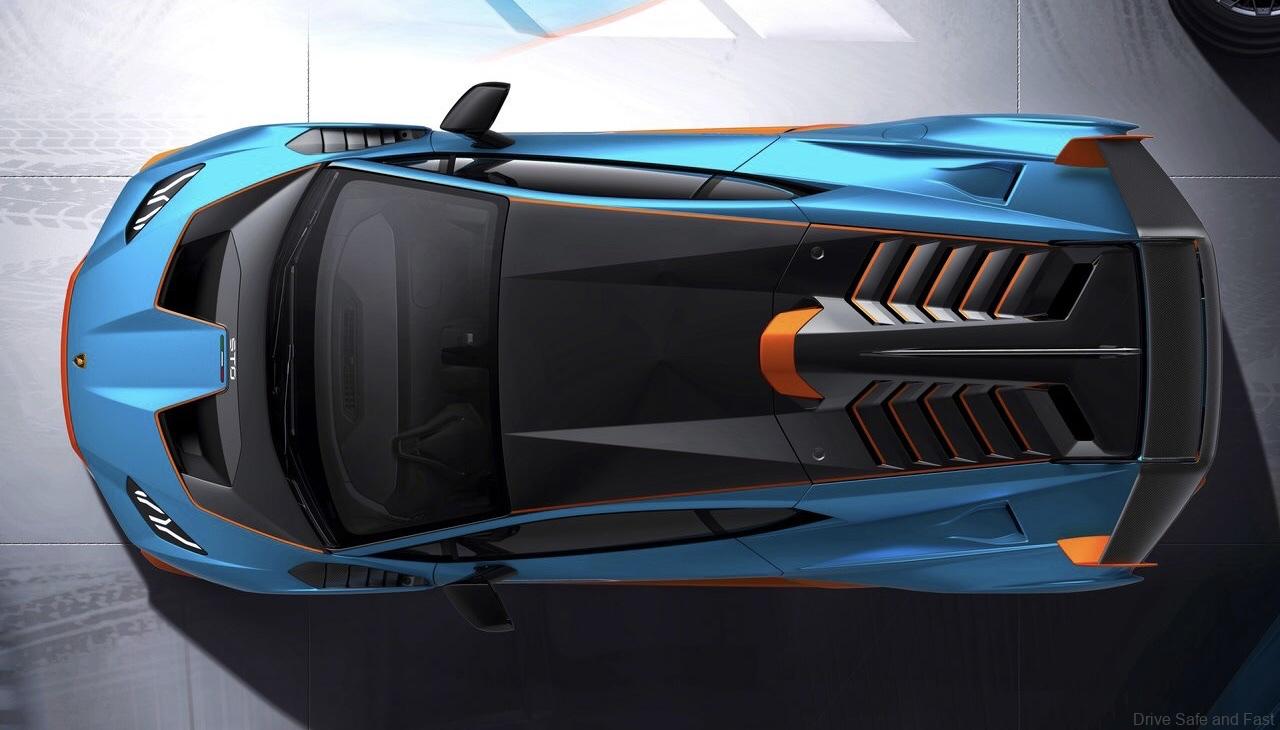

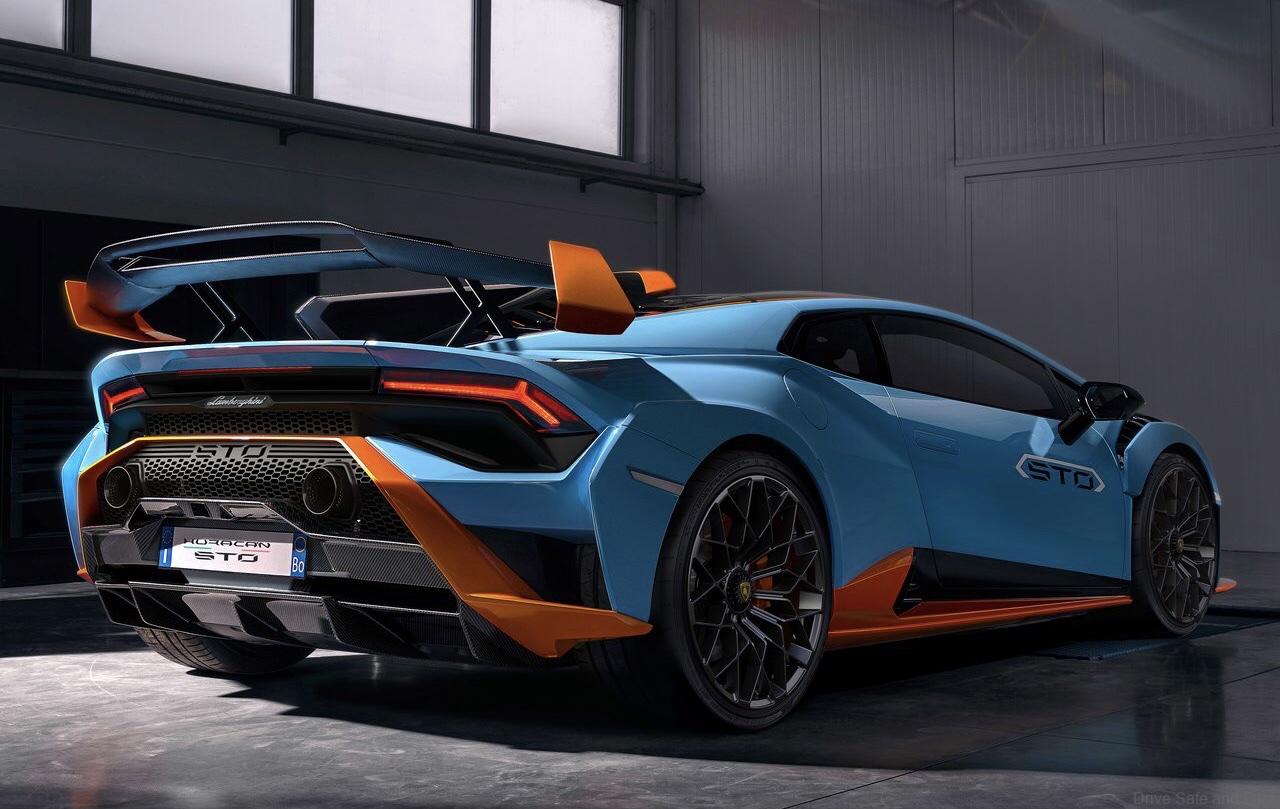

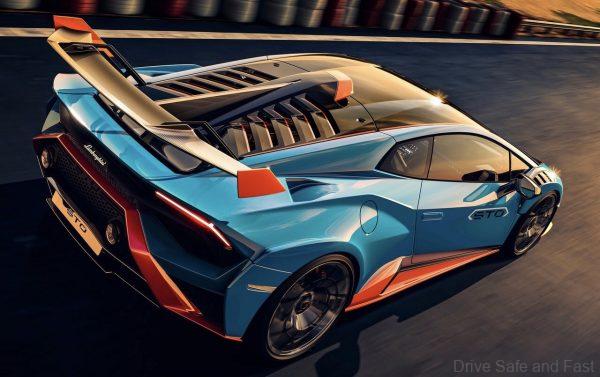

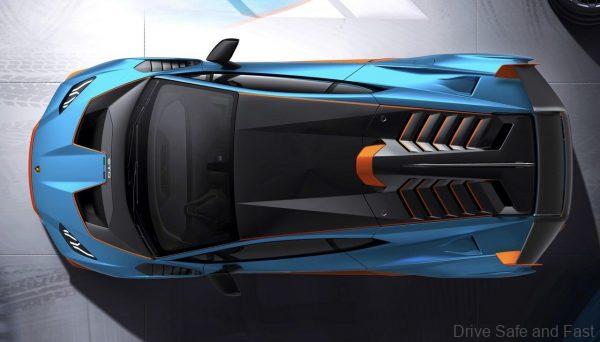

Rear engine bonnet with air scoop
The revised rear hood design features an integrated air scoop to improve air-cooling at the rear underhood. Dedicated air deflectors, integrated in the rear bonnet’s frame, manage the significant incoming airflow from the snorkel according to the temperature regulation needs of the engine and exhaust outlet.
An integrated ‘shark fin’ on the rear bonnet improves the dynamic abilities of the STO, particularly when cornering: in such conditions the incoming airflow has a yaw angle, and the different pressure levels generated by the two sides of the fin create a positive effect on yaw stability. The fin also helps straighten airflow onto the wing, increasing wing efficiency during cornering.

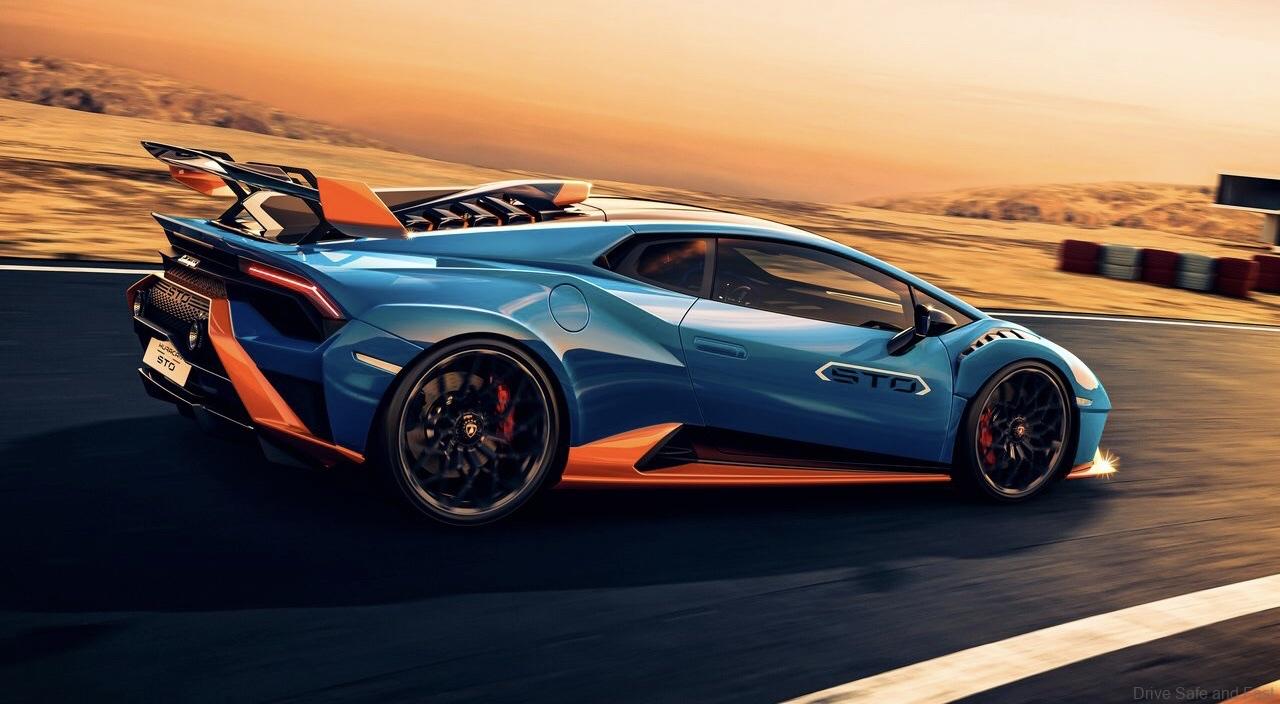

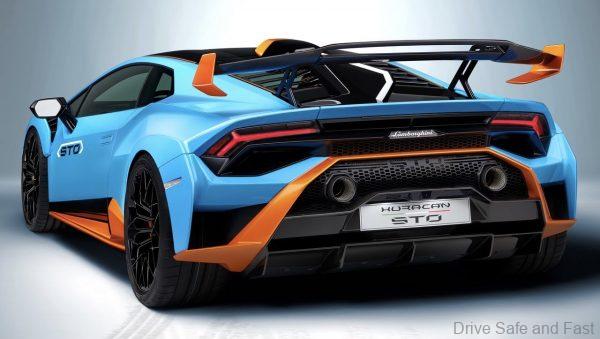

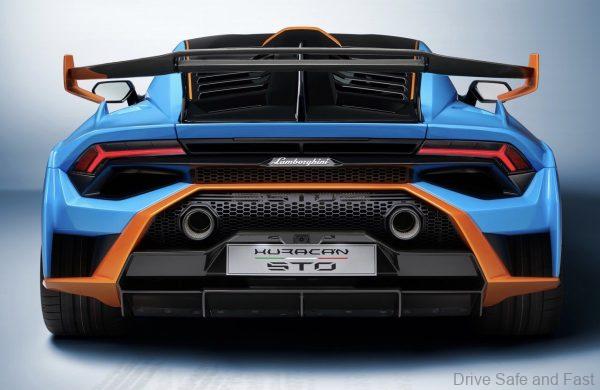

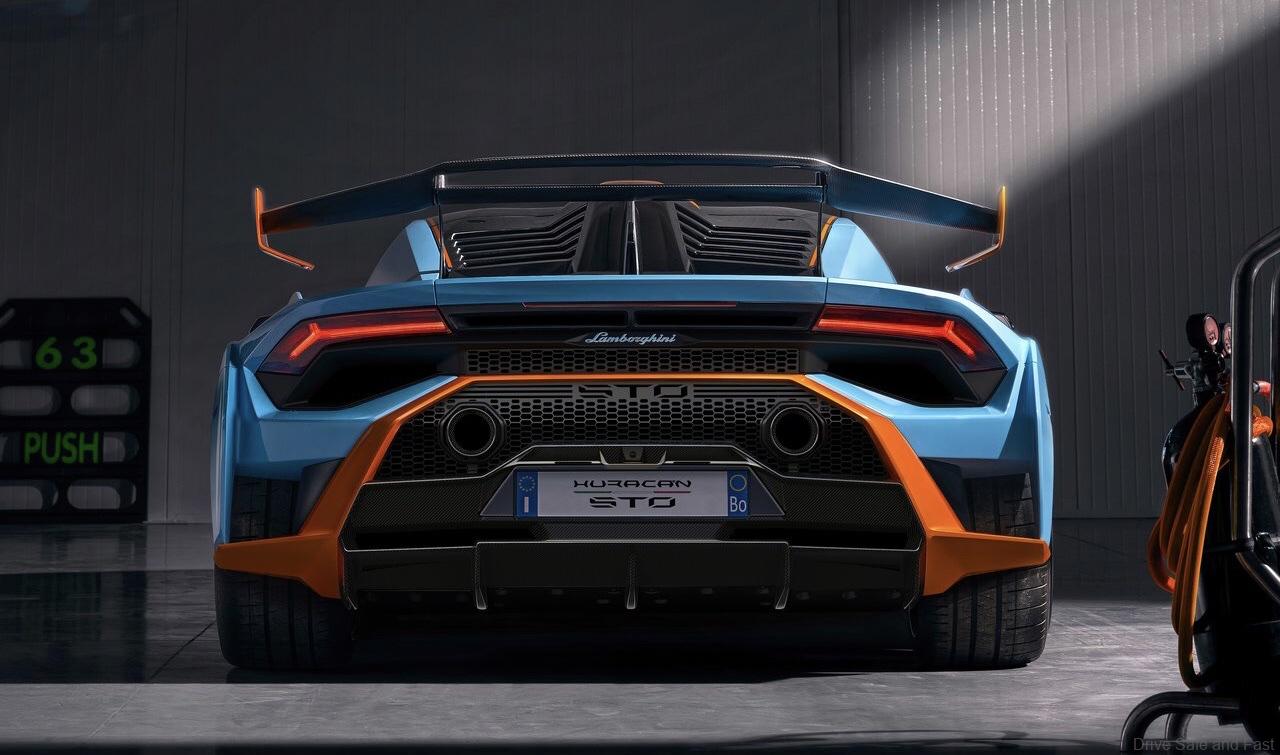

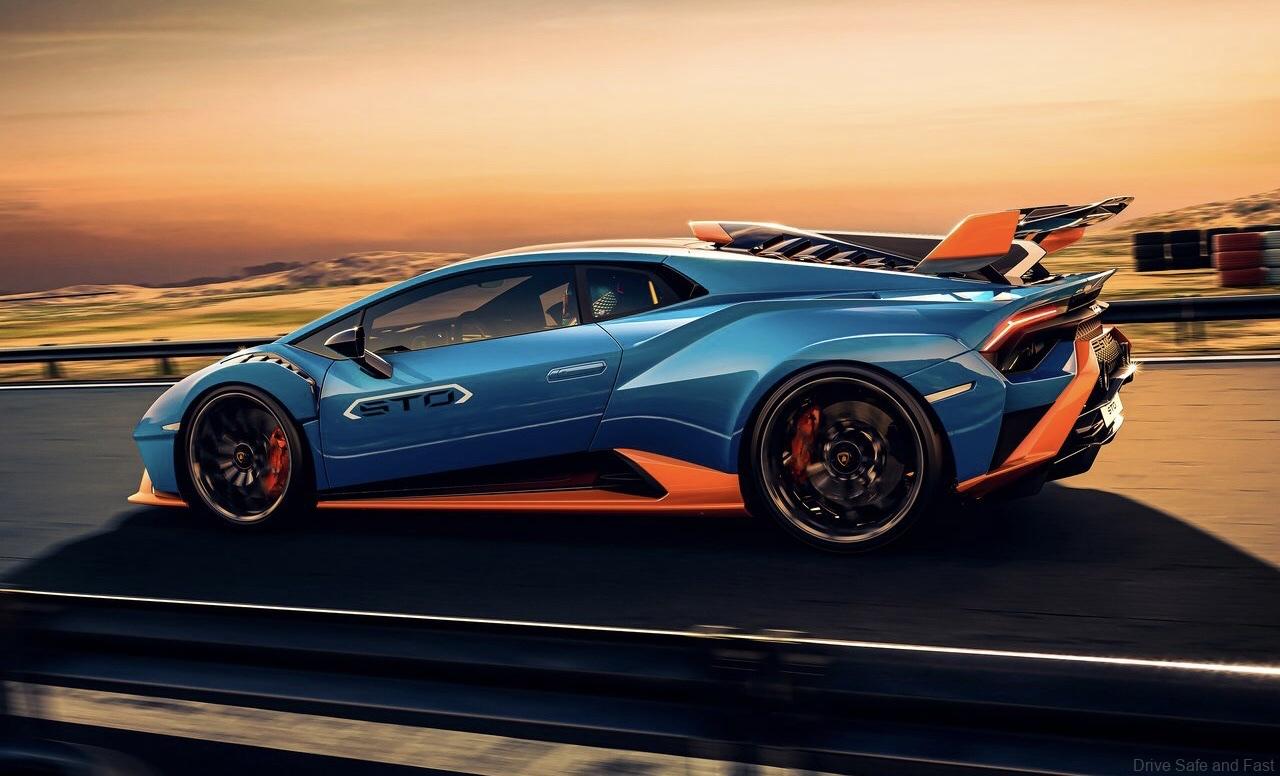

Adjustable rear wing
A manual, easily adjusted aero set-up of the new rear wing optimizes aerodynamic balance and drag resistance according to track characteristics. A single slotted wing with double airfoil allows the front part of the airfoil to rotate into three positions to enhance rear downforce. By reducing the gap between the front and rear airfoil, compression is increased on the upper side, upping the suction intensity and extension on the bottom of the front airfoil. The aero balance of the car can thus fluctuate by 13%, adapting the STO to different driving styles and conditions.
Brake cooling for the highest performance
New front brake cooling ducts are dedicated to cooling the discs and calipers of the new CCM-R brakes, working in conjunction with the cofango air-louvers that dispel hot air from the front wheelhouses. Additional air intakes including on the underbody, and optimized nolders, are located at the rear.
The Lamborghini Huracán STO achieves the highest level of downforce in its class with the best aero balance for a rear-wheel drive car, with delivery of a superior aerodynamic load a key factor in its enhanced cornering performance. Overall airflow efficiency is improved by 37% and a significant downforce increase of 53% is reached over the Huracán Performante.
The Lamborghini Huracán STO uses carbon fiber in more than 75% of its exterior panels, benefiting from complex structures produced as a single component for increased integrity while also reducing weight via less fixing points.
Using its expertise in lightweight technologies, for the rear fender Lamborghini’s R&D department has adopted a carbon fiber ‘sandwich’ technique utilized in the aerospace industry. Thanks to this technology, the Huracán STO uses 25% less carbon fiber material while maintaining the same structural rigidity. At a dry weight of 1,339 kg, the Huracán STO’s weight is reduced by 43 kg compared to the already lightweight Huracán Performante.
The Lamborghini Huracán STO incorporates a windscreen 20% lighter than the Huracán Performante, and features magnesium rims for the highest strength-to-weight ratio, saving further weight over aluminum alloys with the same load factor.
The magnesium rims are fitted with bespoke Bridgestone Potenza tires, available in two versions: one road-focused, the other more track oriented.
The Huracán STO – Lamborghini Squadra Corse at its heart
From the moment, the engine is fired up, every aspect of the Lamborghini Huracán STO, inside and out, stirs the soul of a racing driver. The Huracán STO has at its heart the V10 aspirated engine of the Huracán EVO and Super Trofeo, outputting 640 hp (570 kW) and 565 Nm of torque at 6,500 rpm. With an increased wheel track, stiffer suspension bushing, specific anti-roll bars and Lamborghini’s MagneRide 2.0, the STO delivers all the emotion of a racecar while providing a comfortable road experience. The engine has been calibrated for a very sporty and responsive racing feel, with a direct pedal-to-throttle feeling and improved engine sound sharpness at high revs. The gearchange speed has been further increased to provide a highly responsive and rapid gearshift.
Lamborghini rear-wheel steering, and a more direct and fixed steering ratio, has been designed for a race environment and a more intimate relationship between driver, car and track: the driver is fully in touch with the asphalt with feedback on the car’s behavior at his fingertips. Every aspect of the STO’s racing heritage and technology enhances its ability to corner faster, maximizing grip on exit: the Huracán STO is confirmation that races are won in corners rather than on straights.
Three new ANIMA driving modes
Three new driving modes exemplify the Huracán STO’s racing spirit, focused on high performance driving environments: STO, Trofeo and Pioggia. The default STO mode is for road driving and fun on curving roads. Every aspect of the Lamborghini Veicolo Dinamica Integrata (LDVI) vehicle dynamics system is optimized for all road conditions and coupled with a road-oriented suspension setting. The fully active ESC can be switched off for maximum driving fun while still supporting the driver.
In Trofeo mode, all systems are optimized for dry asphalt and the fastest lap times on track. The LDVI assures maximum performance through dedicated torque vectoring and performance traction control strategies for both straight sprints, in ESC ON mode, as well for lap timing, in ESC OFF. The new Brake Temperature Monitoring (BTM) estimation algorithm allows the driver to constantly check the braking system’s temperature, and to manage wear of the system during its life cycle.
Pioggia (rain) mode optimizes traction control, torque vectoring, rear-wheel steering and the ABS on wet asphalt. Traction control and the braking system are calibrated to minimize loss of grip and engine torque cut, with the LDVI system employing precise estimation to deliver only the torque needed in wet situations. The torque vectoring reflects the low adhesion conditions and ensures better cornering, while the suspension is calibrated to maximize grip and improve load transfer.
The new CCM-R braking system
The motorsports DNA of the Huracán STO is as evident in its braking system. With Brembo CCM-R brakes drawing on materials expertise from F1 applications to deliver superior durability, the CCM-R discs provide four times higher thermal conductivity than traditional CCB. Stress resistance is 60% higher, with maximum brake power improved by 25% and longitudinal deceleration by 7%. This results in robust braking consistency in all driving conditions: braking feels sporty, can be perfectly modulated, and thus is optimized for track use.

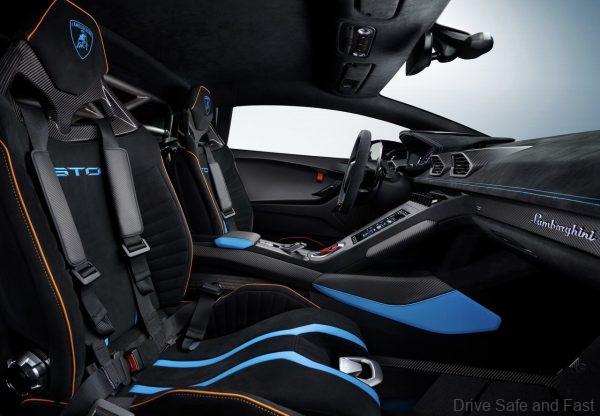

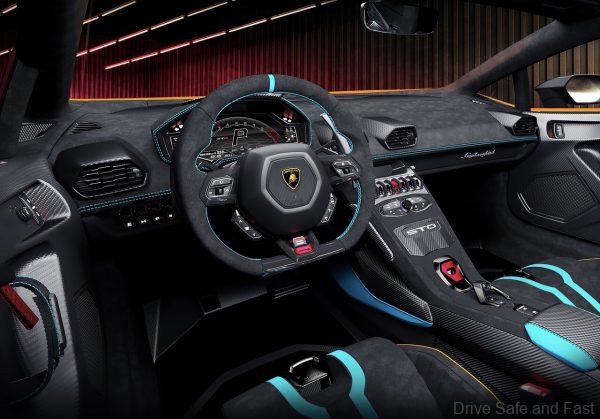

The Huracán STO interior – designed for purpose

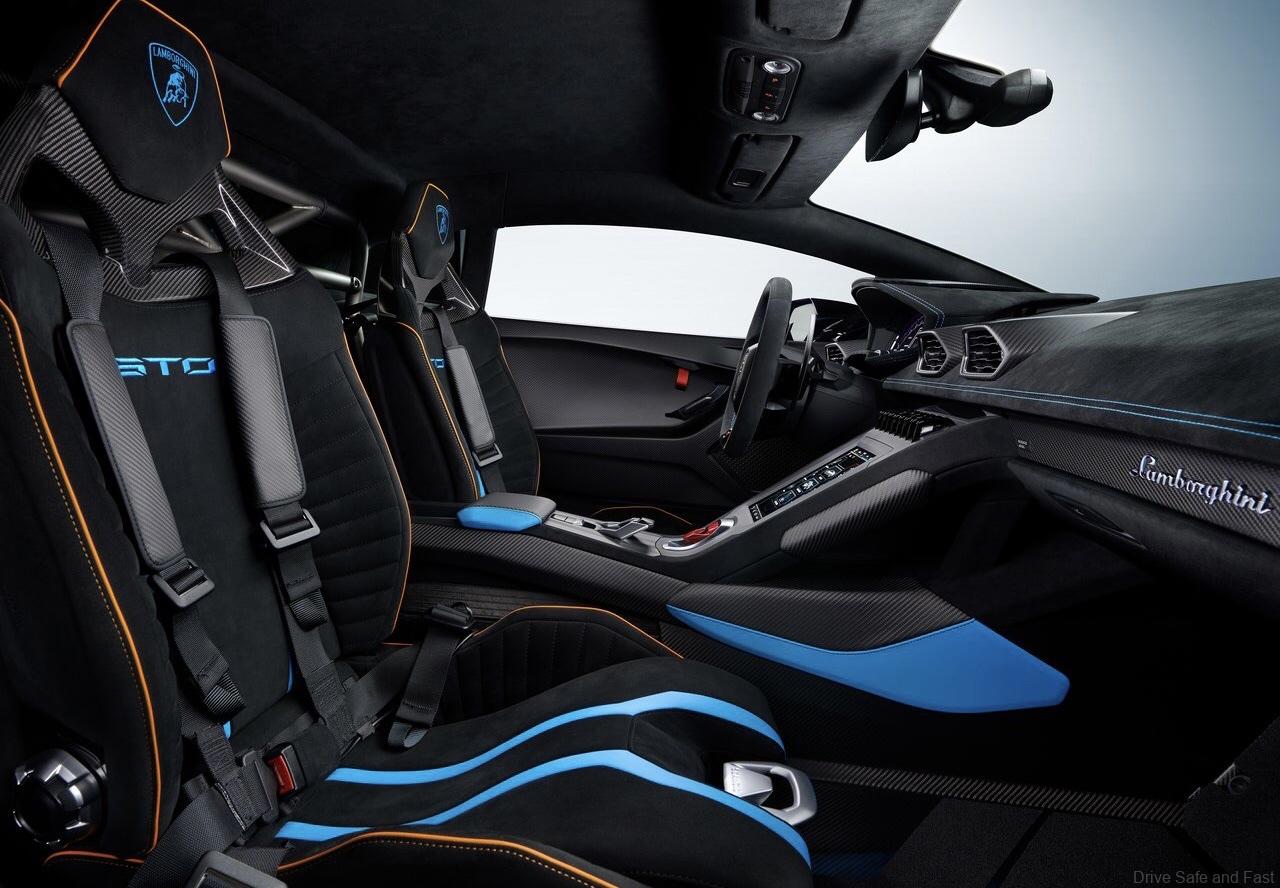

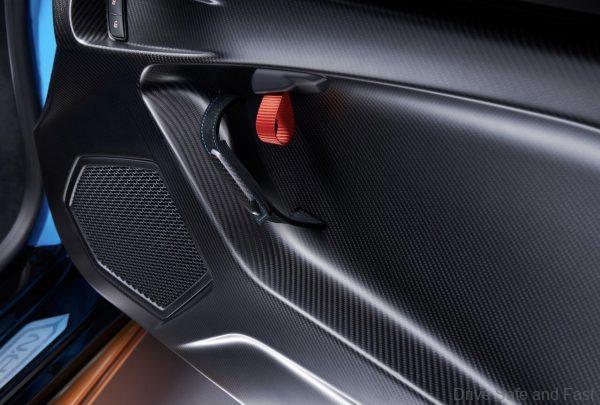

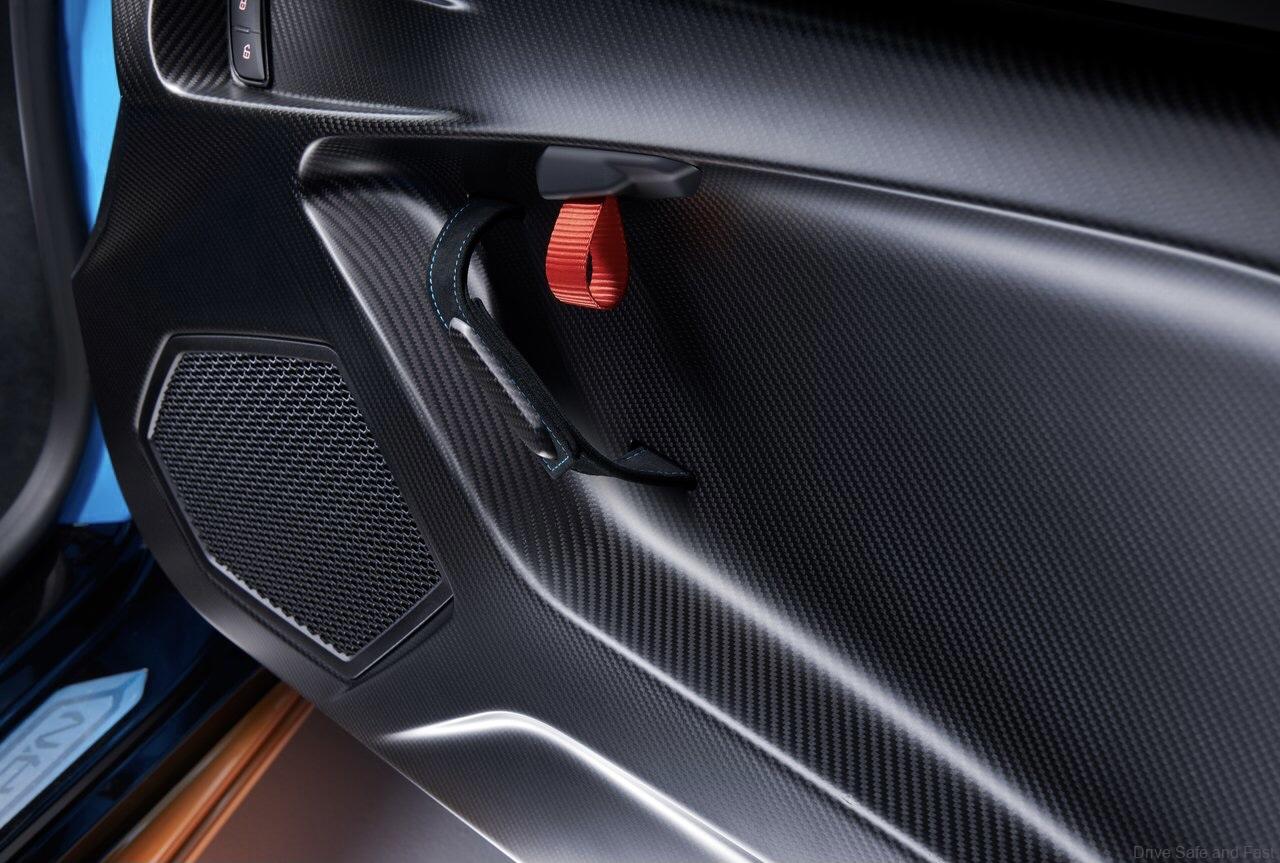

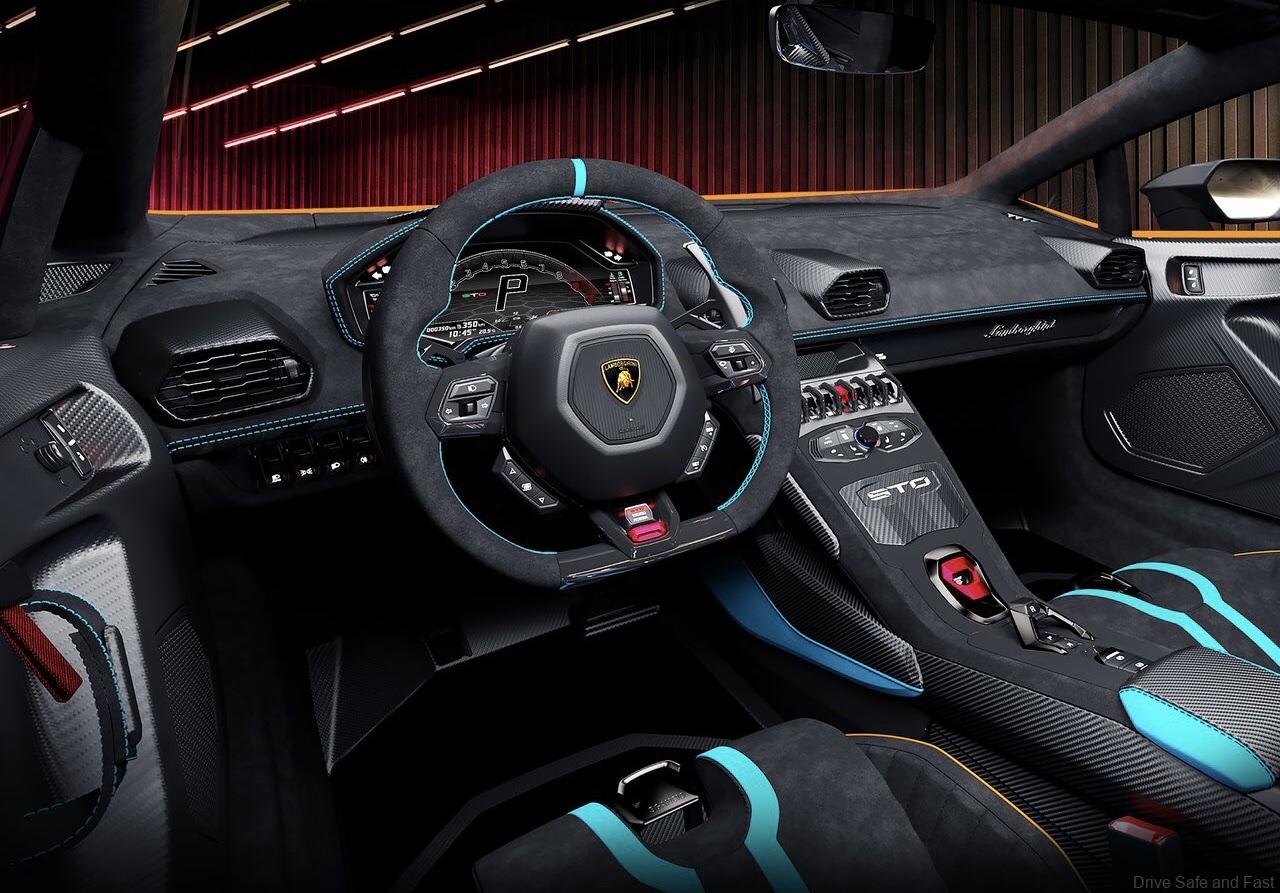

The interior of the Lamborghini Huracán STO reflects the lightweight persona of the exterior: extensive use of carbon fiber features throughout the cockpit, including sport seats in full carbon fiber; an Alcantara interior with Lamborghini’s Carbonskin; carpets removed and replaced by floor mats in carbon fiber; and the fully carbon fiber lightweight door panels with a door latch as opener. A rear arch with four-point seatbelts and a newly designed front trunk for helmet storage, underline the Huracán STO’s racing DNA. The rear arch, developed in cooperation with our Technical Partner Akrapovi, is made from high-grade titanium alloys. It is 40% lighter than conventional stainless-steel rear arches.
New Human Machine Interface (HMI) graphics feature on the Huracán’s touch screen, which manages the car’s functions including drive mode indicator, the LDVI system, tire pressures and brake temperatures. A fully connected telemetry system allows pilots driving their Huracán STO on racetracks to monitor and record their performance and to analyze the data via the Lamborghini UNICA app.
Owners of the Huracán STO can fully personalize both the exterior and interior of their race car-on-the-road via a rich Ad Personam personalization program, with limitless paint and trim combinations as well as race-style vinyls. The concept of a personalized livery is inherent in the design of the Huracán STO, just as Huracán Super Trofeo race cars line up in their unique colors and designs on the starting grid. The launch livery of Blu Laufey and Arancio California exemplifies the Huracán STO’s young and sporty racing spirit.
Price and market delivery of the Lamborghini Huracán STO
The first customers will take delivery of the new Lamborghini Huracán STO in spring 2021.
