BMW CE 04 Will Go Into Production

BMW CE 04 is an electric scooter for the city.

Back in 2017, BMW showed what their next 100 years would look like with a few “Vision” vehicles. One of these was an electric bike called the Concept Link. Late last year, they revealed the “Definition CE 04” which further refined how such a bike would look and feel in the real world. Well, that concept bike is now going into production as the BMW CE 04.

BMW CE 04 parked, shot from the rear

The bike is aimed at mobility within cities in Europe, so the range and power is nothing outstanding. There’s an electric motor with 42 horsepower, but there’s also be a reduced 31 horsepower version.

Both versions have a top speed limited at 120km/h. Energy is stored in an 8.9 kWh lithium-ion cell and this gives it a maximum range of just 130km. The lower output model has its range reduced to 100km.

BMW CE 04 parked, shot from the front

It takes about 4 hours and 20 minutes to fully charge through a regular socket. With a quick charger, you get a full battery in 1 hour and 40 minutes.

BMW CE 04 indoors

Again, this bike is aimed at smaller cities primarily, so don’t expect here. BMW Motorrad are even pricing it a little higher at US$12,000 before taxes and duties. We’re not sure if it will be introduced to Malaysia.

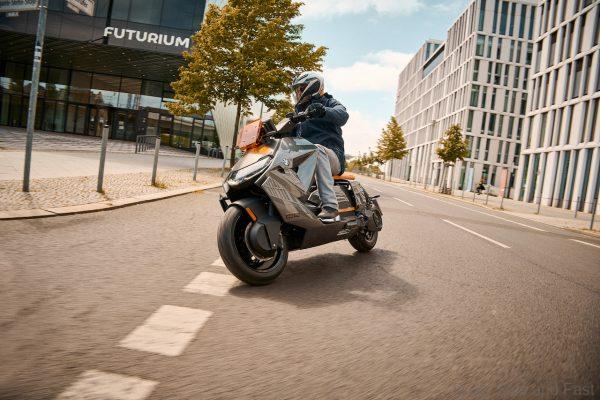

BMW CE 04 in motion with rider taking corner

Here’s the press release with more details on the electric scooter.

BHPetrol_Euro5 Diesel_2021

PRESS RELEASE

The new BMW CE 04 – the silent revolution: A new chapter in electrically powered urban two-wheel mobility.

With the new BMW CE 04, BMW Motorrad continues to consistently pursue its electromobility strategy for urban conurbations. As the final series production vehicle of the BMW Motorrad Concept Link originally showcased in 2017 and the near-series BMW Motorrad Definition CE 04 unveiled in 2020, the BMW CE 04 opens up a whole new chapter in two-wheel urban mobility.

With its electric drive, forward-looking design and innovative connectivity solutions, the new scooter merges transport and communication functions for a new brand of mobility in the urban environment.

Plenty of power and ample range for supreme riding in the city and in urban areas.

With a maximum output of 31 kW (42 hp), the new BMW CE 04 has a powerful motor and offers outstanding riding pleasure. For the classic “traffic light start” discipline from 0 to 50 km/h, it takes just fast 2.6 seconds. Even in the reduced output L3e-A1 vehicle class, 23 kW (31 hp) drive power is available. The maximum speed of both versions is 120 km/h – for speedy progress not just in the city but on main roads and motorway sections, too.

The new BMW CE 04 has an ample battery cell capacity of 60.6 Ah (8.9 kWh), providing a range of some 130 kilometres (reduced output version: 100 km). This enables day-to-day emission-free riding in the city, in an urban setting and for smaller-scale fun tours after work or at the weekend – with complete peace of mind.

Innovative electric drive with liquid-cooled electric motor.

The new BMW CE 04 has a permanent magnet electric motor mounted in the frame between the battery and the rear wheel, as used in a similar form in BMW cars such as the 225xe Active Tourer. BMW Motorrad conducted extensive riding tests to develop a specific type of recuperation for each riding mode, giving the rider a high-level convenience. This means that optimum performance and riding characteristics are available in every situation on the road.

Short charging times and charging technology based on the system used in cars.

The lithium-ion battery is charged using the integrated charging device either at a regular household socket, a wallbox or a public charging station. When the battery is completely flat, charging time ideally lasts 4 hours and 20 minutes. With the quick charger available as an optional extra with an output of up to 6.9 kW (2.3 kW is the standard level), charging time is reduced to just 1 hour and 40 minutes when the battery is completely flat.

If the battery level is only 20 per cent and the battery is charged to 80 per cent, the charging time is reduced to just 45 minutes with the optional quick charger. Depending on the market, the standard charging cable with a charging capacity of 2.3 kW comes as standard with the BMW CE 04.

A Mode 3 charging cable is required for fast charging at the wallbox at home or at a public charging station. In the same way as with BMW automobiles, BMW Charging solutions are available for the BMW CE 04, too – for maximum flexibility based on numerous customised programmes for charging at home, on the road and at work.

Increased riding stability through slip control by means of ASC (Automatic Stability Control). DTC (Dynamic Traction Control) as an ex works option.

This traction control system is available on the new BMW CE 04, comparable to the Automatic Stability Control in BMW motorcycles with combustion engine. ASC limits engine torque in relation to rear wheel slip. Dynamic Traction Control (DTC), available as an optional extra, provides even greater riding safety. DTC enables even more safe acceleration, especially in banking position.

Three riding modes “ECO”, “Rain” and “Road” for efficient, day-to-day use as standard. “Dynamic” riding mode for further enhanced riding pleasure as an ex works option.

In developing the BMW CE 04, BMW Motorrad attached particular importance to providing opportunities for the rider to make an individual choice between maximum efficiency and maximum riding fun.

Accordingly, the new BMW CE 04 features the three riding modes “ECO”, “Rain” and “Road” as standard. The additional “Dynamic” riding mode is also available as an ex works option, enabling the scooter to accelerate at an even swifter pace.

Directionally stable suspension with one-piece tubular steel main frame for smooth handling and a high level of ride comfort.

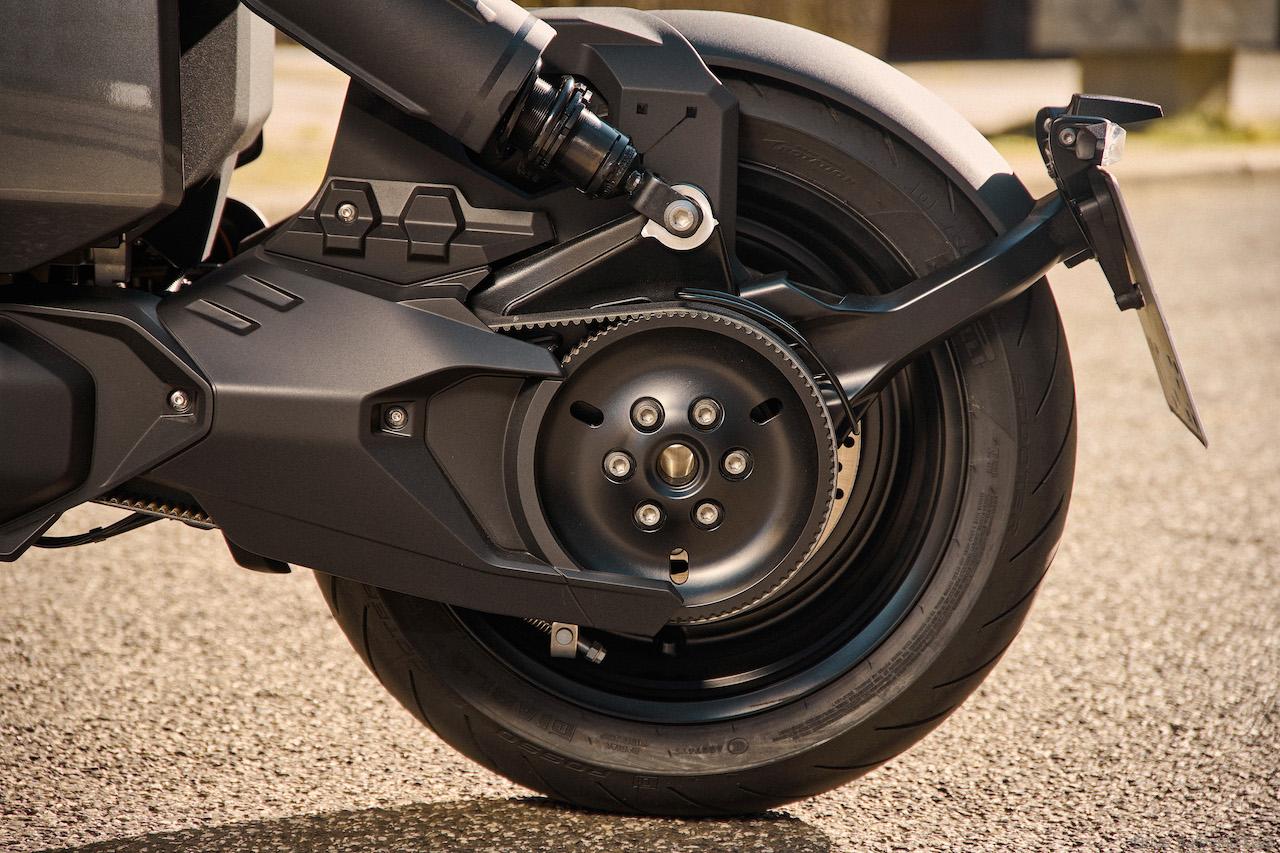

The main frame is a tubular steel construction. The front wheel is controlled by a telescopic fork with a slider tube diameter of 35 mm. Rear wheel control consists of a single-sided swing arm.

At the rear, suspension and damping are performed by a directly controlled, fully covered spring strut. The new BMW CE 04 is fitted with generously sized tyres, with 120/70 R15 67H at the front and 160/60 R15 56H at the rear.

Powerful brake system with latest-generation ABS. ABS Pro with banking capability as an ex works option.

At the front, a twin disc brake ensures secure deceleration, supported by a single-disc system at the rear. In addition, BMW Motorrad ABS ensures a high level of active safety. ABS Pro, available as an optional extra, goes even further: By means of a banking sensor, ABS Pro also controls braking on bends, thereby offering the greatest possible safety.

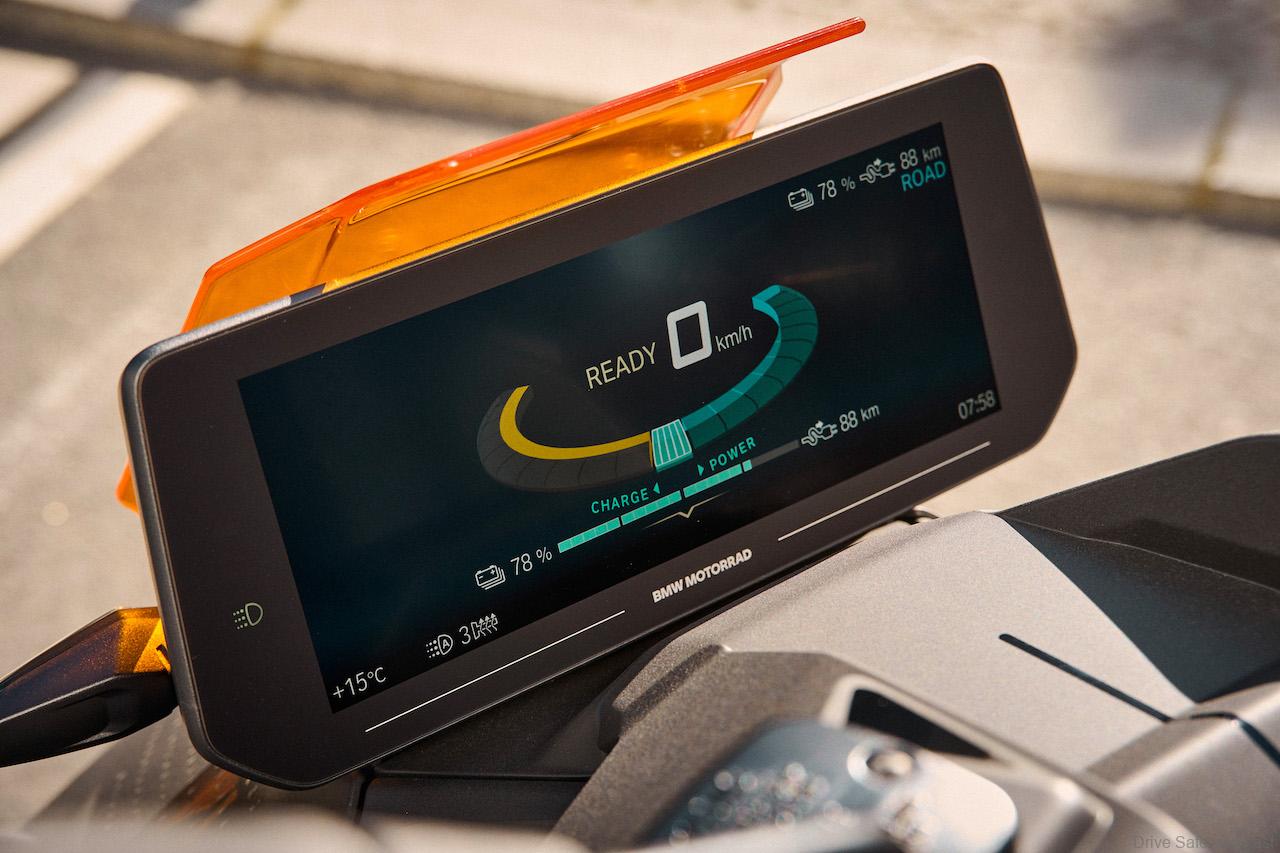

10.25” TFT colour screen with integrated map navigation for convenient route planning and extensive connectivity as standard.

The new BMW CE 04 comes fitted as standard with a 10.25-inch TFT colour screen with integrated map navigation and connectivity. Its excellent readability, clear menu navigation and highly integrated operating concept put the new BMW CE 04 at the top of the scooter segment.

For the first time, the new 10.25-inch colour screen makes it possible to display a navigation map in the instrument cluster, so no additional display is needed.

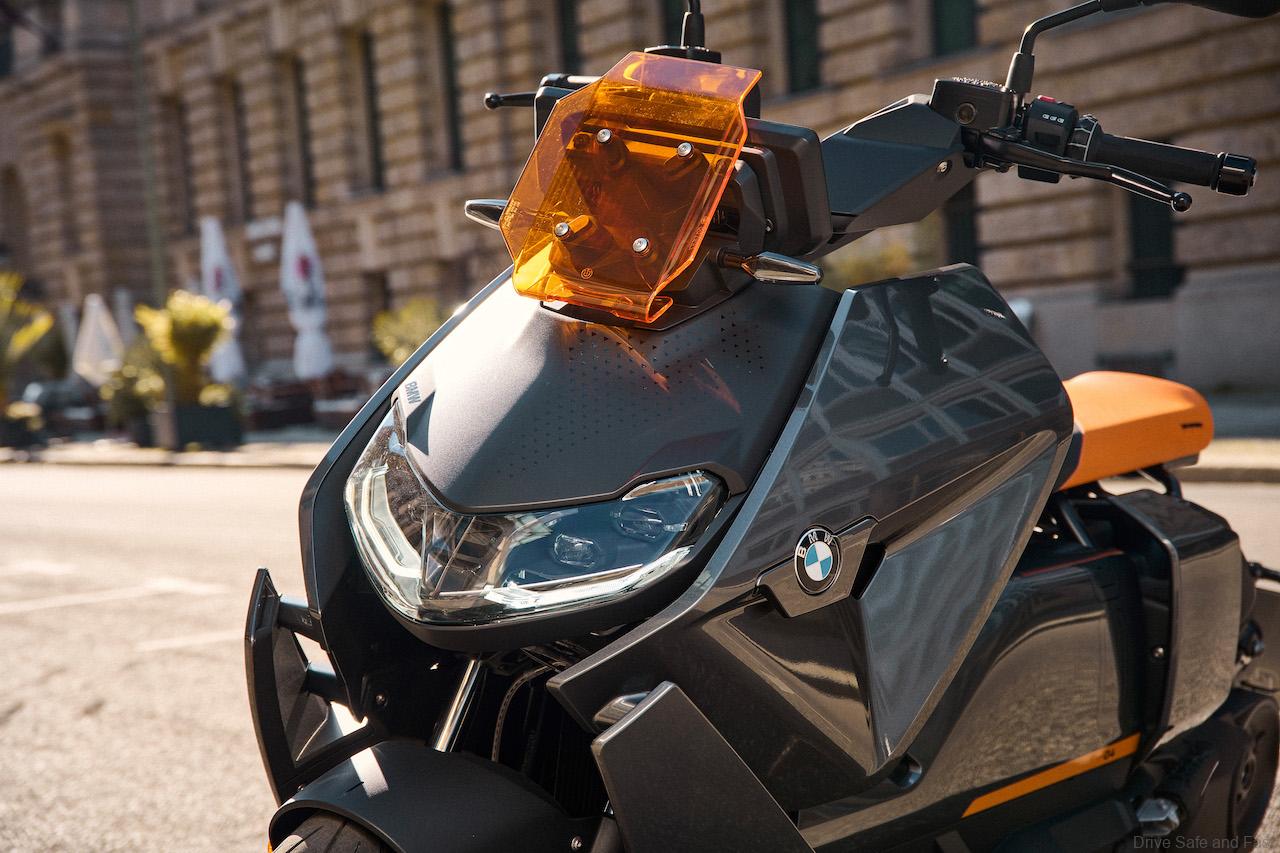

Powerful LED lighting units all round. Adaptive Headlight Pro and light functions as ex works options.

The lighting units on the new BMW CE 04 are based on state-of-the-art LED technology. They include a headlamp for high beam and low beam at the front. In addition to a rear light featuring LED technology, there are also LED turn indicators.

The indicator lamps likewise use LED technology. Even greater safety at night is offered by the adaptive turning light Headlight Pro, available as an ex works option.

Here, the rider benefits from further improved illumination of the road when cornering for even safer riding at night. Special light functions such as “Welcome” and “Good Bye” are also available as ex works options.

Future-oriented design and colour scheme.

The new BMW CE 04 embodies a new, forward-looking form of urban two-wheeled mobility in its design as well, featuring an innovative style that arouses emotions for this new drive technology while instantly identifying the scooter as a member of the BMW Motorrad family. The modern surface finish is in a striking Light White, complemented by matt black sections in the front and side areas as well as the “floating” seat.

In addition, there are trend-setting wheels (solid wheels) featuring a disc-wheel look and a side stand that is integrated in the design styling. The new BMW CE 04 in Avantgarde Style (ex works option) is a striking, colourful statement of contemporary urban mobility. In this style, the colour Magellan Grey metallic is supplemented with a black/orange seat, an orange wind deflector and various graphics.

The highlights of the new BMW CE 04:

  • Rated output 15 kW (20 hp). Maximum output 31 kW (42 hp).
    Reduced output version: 11 kW (15 hp) or 23 kW (31 hp).
  • Ample cell capacity in the battery of 60.6 Ah (8.9 kWh).
  • Range of approximately 130 kilometres (reduced output version: 100 km).
  • Short charging times and charging technology based on the system used in cars.
  • Increased riding stability due to slip control by means of ASC (Automatic Stability Control). DTC (Dynamic Traction Control) as an ex works option.
  • Three riding modes “ECO”, “Rain” and “Road” for efficient, day-to-day use as standard. “Dynamic” riding mode for further enhanced riding pleasure as an ex works option.
  • Directionally stable suspension with one-piece tubular steel main frame.
  • Powerful braking system with ABS. ABS Pro with banking capability as an ex-works option.
  • 10.25-inch TFT colour screen with integrated map navigation and extensive connectivity as standard.
  • Powerful LED lighting units all round. Adaptive Headlight Pro and light functions as ex works options.

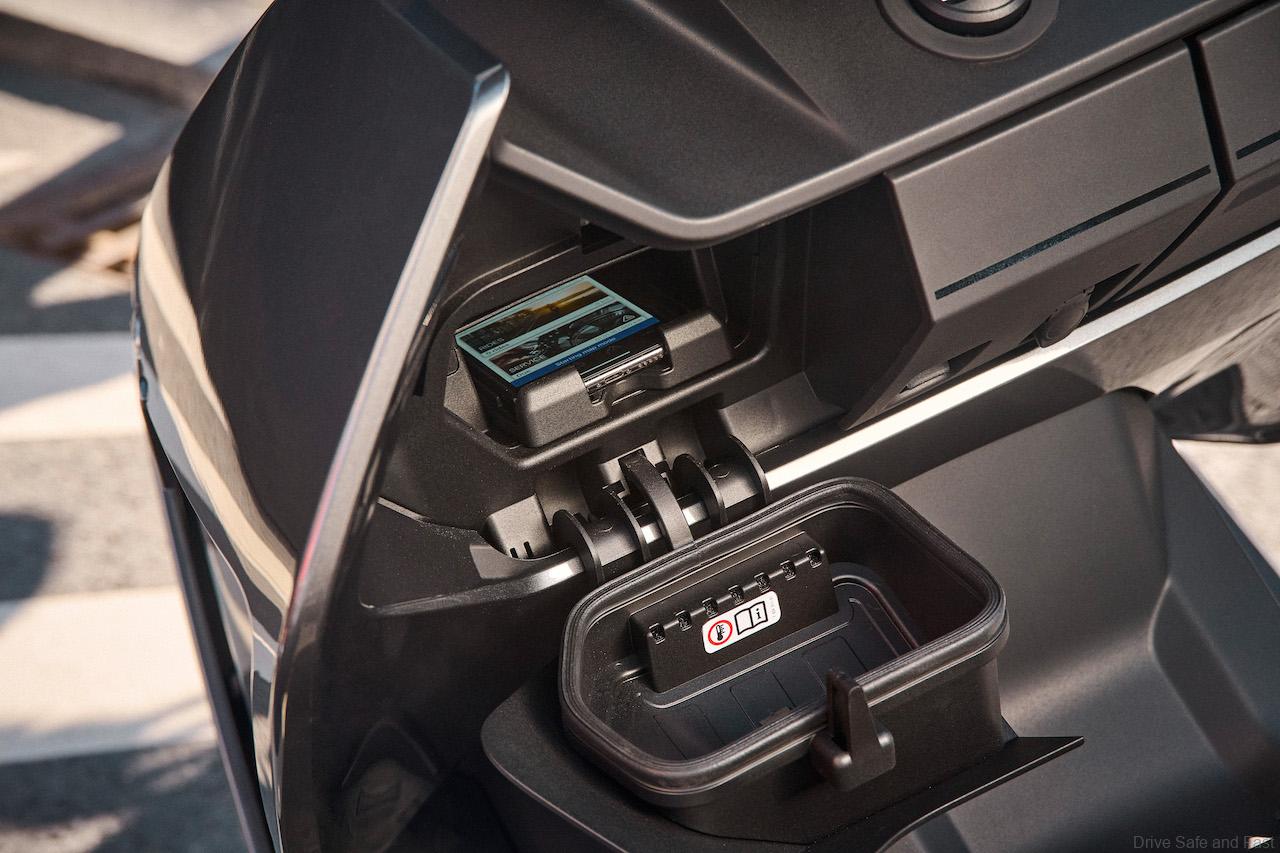

  • Storage compartments at the side and front. The side helmet compartment can now be operated while seated.
  • Actively ventilated mobile phone charging compartment with USB-C charging port.
  • Future-oriented design and colour scheme.
  • Extensive range of optional extras and original BMW Motorrad Accessories as well as rider equipment.
