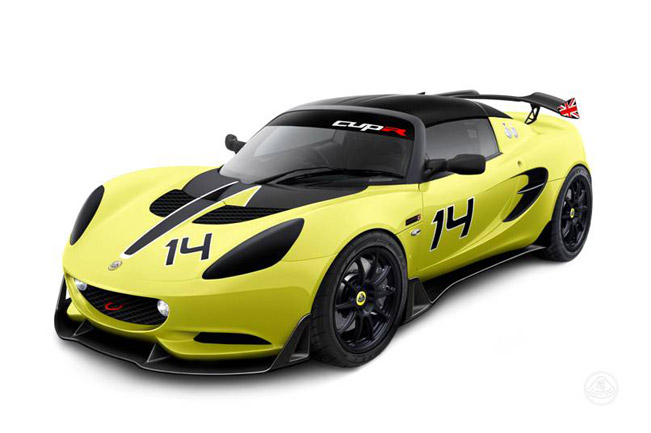

Lotus S Elise Cup R For Added Excitement

This Lotus S Elise Cup R is the latest addition to brand’s motorsport portfolio which is built specifically for the track only. Here for the first time, a supercharged Elise S’ mid-mounted, transverse, 1.8 litre 2ZR-FE engine has been utilized in a Cup variant. In addition, the vehicle also includes bespoke livery and aerodynamic body kit. The performance of the vehicle is enhanced over the road-going Elise S via a motorsport-specific engine control module (ECM) and a CFD proved aero pack. The latter comprises of front splitter, barge boards, winglets, rear diffuser, floor extensions and rear wing.

In addition, the weight of the car is extremely low – it is only 924 kg. All this results in additional downforce, which when combined with adjustable damper and springs, reduces lap times by 4 seconds on a 5 km lap over the standard Elise S.

The production of the Lotus S Elise Cup R is scheduled in the beginning of 2014.

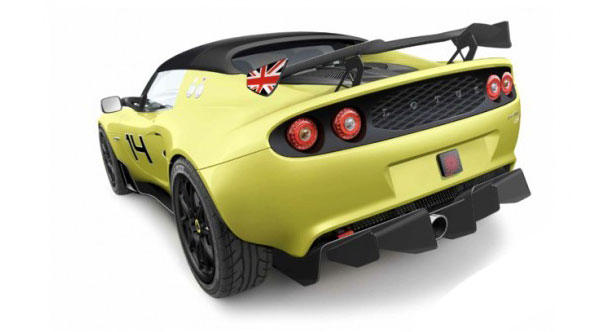

Lotus-Elise-S-Cup-R-2

Lotus Elise S Cup R Specifications:

Enhancements:

  • FIA Compliant Rollcage (As previous Cup Versions)
  • FIA Compliant Fire Extinguisher
  • Motorsport Mapped ECU
  • Electronic Battery Isolator
  • 6-Point Race Harness (Driver Seat)
  • Hans Compliant Race Driver’s Seat
  • Track Specification Front Tow Eyes
  • Quick Release Steering Wheel
  • Body Kit
  • Brake Pad Upgrade
  • Single way adjustable Dampers
  • Hardtop
  • Motorsport specification triple-pass radiator
  • Polycarbonate Rear Screen
  • Forged Alloy Wheels
  • Options:
  • FIA Fuel Cell
  • Air Conditioning
  • Race Passenger Seat (with 4-point race harness fitted)
  • Ultra-lightweight Motorsport Wheels

Powertrain: All alloy, 1.8 litre DOHC 4 cylinder, dual VVT-i, 16 valve with Magnuson R900 supercharger utilising Eaton TVS™ technology

Transmission: 6-speed manual gear box as standard

Suspension: Up Rated TCA Kit

Brakes: Twin-piston fixed aluminium alloy front brake callipers. Single-piston sliding rear brake callipers. 288 mm diameter, 26 mm thick front and rear cast-iron cross-drilled & ventilated brake discs

Wheels: Forged Alloy

Tyres: Yokohama Advan Neova AD07 LTS tyres F: 175/ 55 R16 & R: 225/ 45 R17

Safety systems: Lotus ABS/ EDL
