A Look at GM’s new 10-Speed Automatic

Engineers for the new 10-speed automatic transmission available in the 2017 Chevrolet Camaro ZL1 built on the experience of previous, critically acclaimed Hydra-Matic multispeed transmissions to push its performance, refinement and efficiency advantages to a new threshold.

GM new 10-spd gearbox 2

The 10-speed is an all-new design – and the first-ever application in a car – with a wider, 7.39 overall gear ratio spread, that enables the ZL1’s supercharged engine to remain at optimal engine speeds during upshifts.

The wider overall ratio enables a lower numerical top gear ratio – an attribute that reduces engine speed on the highway, which contributes to greater fuel efficiency than a comparable eight-speed transmission. Improvements in spin loss complement the optimized gearing, further enhancing efficiency.

Template BHP

And while the Camaro ZL1 will be the first GM vehicle to offer the new 10-speed automatic, designed for rear-wheel-drive applications, it will be available in eight additional vehicles by 2018.

Additional highlights:

  • Creative packaging – The 10-speed is approximately the same size as the six- and eight-speed transmissions, minimizing changes to vehicle interfaces.
  • Quicker shifts than a dual-clutch transmission – Testing has shown faster upshift times than the Porsche PDK dual-clutch transmission. In fact, the 1-2 upshift is 36-percent quicker than the PDK, while the 2-3 and 3-4 upshifts are 27-percent and 26-percent quicker, respectively.
  • Reduced spin losses –Thanks to only two non-applied clutches – the same number as the eight-speed – as well as other design features, the 10-speed automatic has lower friction that contributes to greater fuel efficiency over GM’s six- and eight-speed automatics. New ultra-low viscosity transmission fluid also reduces friction, while an internal thermal bypass allows the transmission to warm up faster – attributes that enhance fuel efficiency
  • GM-developed controller – It is the latest transmission to use an all-new, GM-developed control system, with performance calibrations tailored specifically for different vehicles.

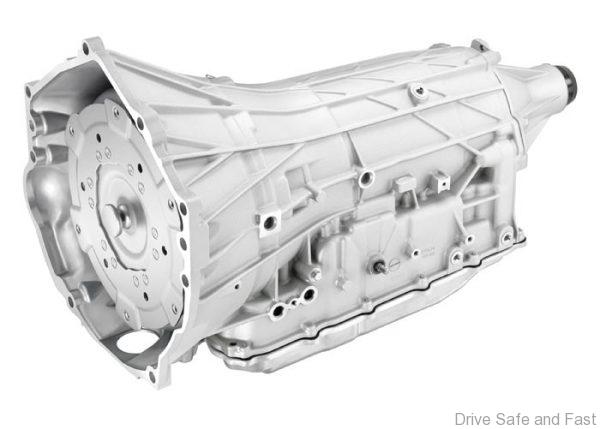

The all-new 10 speed automatic transmission is the first 10 speed automatic for a volume production car.  The performance 10 speed transmission transfers power and torque with quick shifts and maintains more engine power after each shift.
