Oris’s Redesigned Artix GT Chronograph

01 774 7661 4424-07 4 22 25FC - Oris Artix GT Chronograph

In the new, redesigned Artix GT Chronograph, Oris has placed a novel countdown indicator. This indicator appears on the subdial at 9 o’clock and works in the same way as the lights on the start-line gantry at a Formula 1 Grand Prix. It is made up of fives squares and every 15 seconds these begin to fill with red. After one second, the bottom square has filled with red, then the next square up after two seconds, and so on, until all five are red. Then they all return to white simultaneously. This process happens five seconds before the quarter, half, three-quarter and full minute.

The principle of this innovative complication is simple. Under the dial is a disc printed with a series of red columns, staggered like a staircase. As the disc rotates these columns move into the aperture, filling it with red. The same subdial at 9 o’clock also serves as a running seconds, indicated by a single red square that moves continuously through a channel around the subdial’s outside edge once every 60 seconds.

In addition to this Oris-developed complication, the new Artix GT Chronograph also features 12-hour chronograph (with subdials inspired by the speed and rev counters on a sports car dashboard), tachymeter and date functions, powered by an automatic Swiss Made movement.

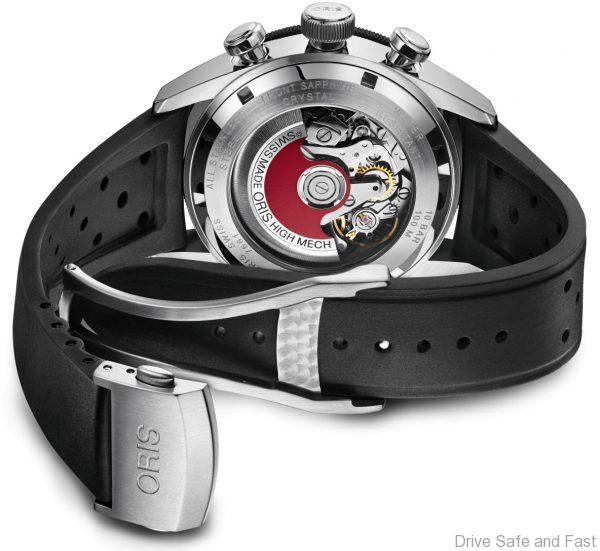

Measuring 44mm diameter, stainless steel case of the watch has been redesigned to look sportier and more refined than its predecessor, and has a transparent case back, revealing Oris’s signature Red Rotor. The bi-directional rotating bezel has a matt black ceramic insert with a shiny minute scale. Around the bezel is the Oris developed rubber grip for precise adjustment. The watch comes on either a perforated black rubber racing strap with a folding clasp, or a stainless steel bracelet.
01 774 7661 4424-07 4 22 25FC - Oris Artix GT Chronograph
Technical details
Model: Oris Artix GT Chronograph
Ref. No. 01 774 7661 4424 RS, Ø 44.00mm

Movement
Automatic movement Oris Cal. 774, based on SW 500, with chronograph function and date at 6 o’clock

Case

Multi-piece stainless steel case and stainless steel screw-in crown and pushers
Water-resistant to 10 bar/100m
Bi-directional rotating bezel with black ceramic minute scale and rubber coated grip
Sapphire crystal domed on both sides and with anti-reflective coating inside
Screwed stainless steel case back with see-through mineral crystal

Dial
Black dial with applied indices filled with Super-LumiNova®
Polished nickel hour and minute hands with Super-LumiNova® inlay
Red central stop seconds hand, nickel counter hands and Oris-developed red/black small seconds disc

Strap
Black rubber strap with stainless steel folding clasp
Also available on stainless steel bracelet
