Published on July 8th, 2019 | by Subhash Nair0

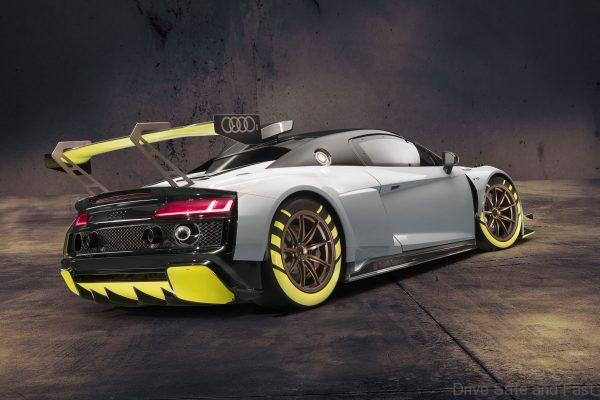

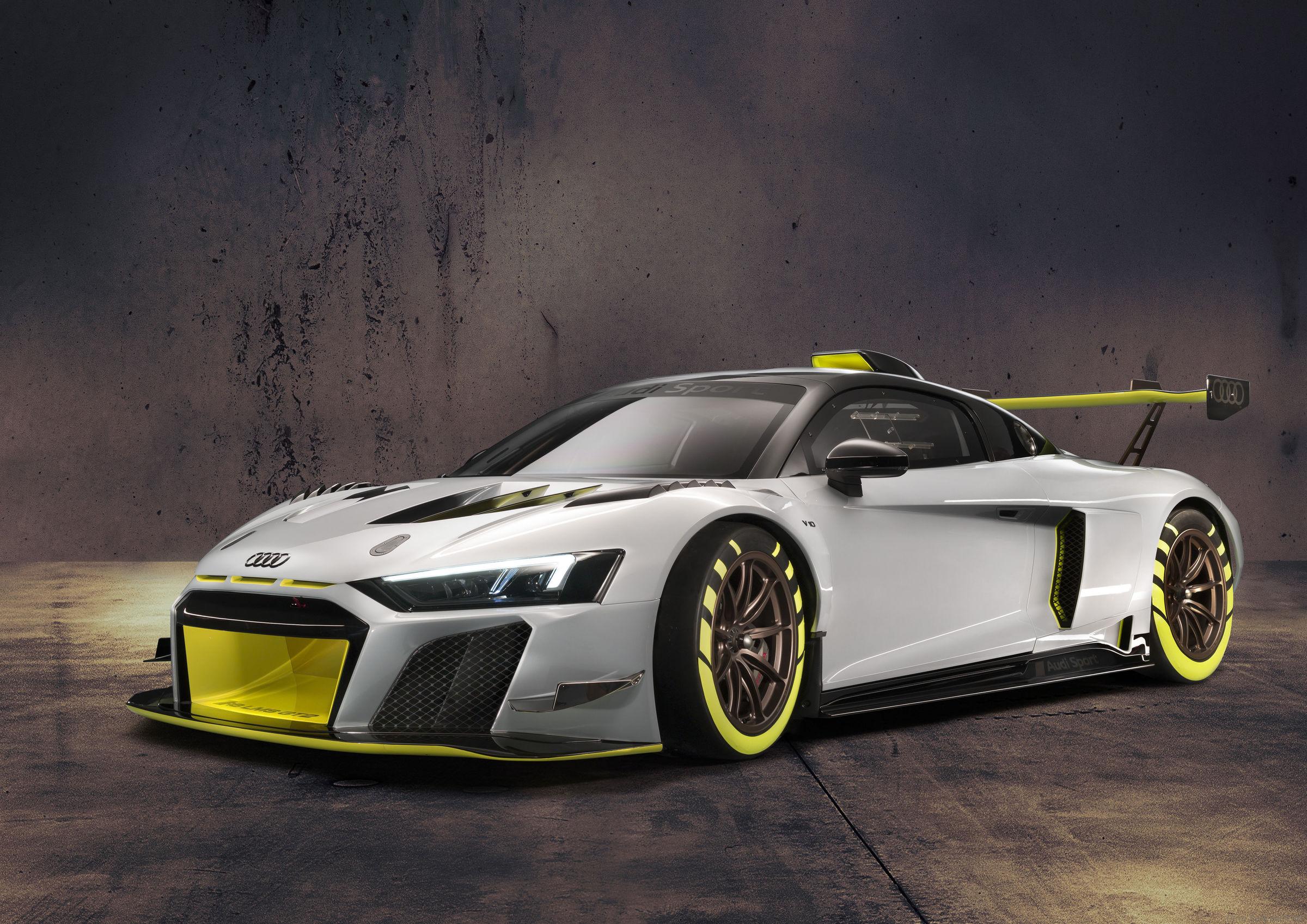

Audi Showed this New R8 LMS GT2 at Goodwood
Over the weekend, at the Goodwood Festival of Speed, Audi Sport unveiled something new – a 640hp Audi R8 LMS GT2.
This new car was specified for Audi Sport customer racing teams and is their most powerful one the company has made.
The naturally-aspirated 5.2-litre V10 under the hood delivers 123hp per litre, which allows the car to meet the 2.1 kg/hp weigh-to-power ratio set for the GT2 race cars.
Audi Sport customer racing has been competing in GT3 racing since 2009 and GT4 since 2019. Entering a car into the GT2 category allows for a car that is more powerful without being much faster around each lap than a GT3.
Here are some of the features found on the Audi R8 LMS GT2:
- Audi Space Frame (aluminium + carbon fibre reinforced polymer)
- Steel roll cage
- Chassis geometry of the Audi R8 Spyder
- Extensive use of carbon fibre to create many body parts
- Dry weight of 1350kg
- Vents to the right and left of the car
- New front splitter, carbon fibre underfloor sections, rear diffusor
- Redesigned racing suspension
- New hub carriers, wishbones
- Upgraded ABS, ASR and ESP with 4 level adjustment
- Audi Prtection Seat PS3 with safety nets on the sides
- Optional quick-refueling valve
- Windshield and side windows made of lightweight Makrolon
- Digital rear view mirror
- Doors made of carbon fibrea and aluminium honeycomb
For more detailed specifications, check out the press release below.
Audi is ready for a new category in motor racing: The Audi R8 LMS GT2 stands for several superlative features in Audi Sport customer racing’s program. With 470 kW (640 hp), it is by far the most powerful sports car in the eleven-year history of the customer racing program. The race car achieves its specific power output of 123 horsepower/per liter of displacement with a near-production-level 5.2-liter naturally aspirated V10 engine. With it, the weight-to-power ratio of the Audi R8 LMS GT2 amounts to some 2.1 kg/hp. From a historical perspective, in about four decades, there has never been an Audi Sport race car with a naturally aspirated engine with such a favorable ratio between homologation weight and engine power.
Finally free: Audi Sport delivers the fascinating V10 engine in the GT2 model in a way that allows it to naturally aspirate air totally unrestricted also in racing and thus achieves its so far highest power output. Stéphane Ratel Organisation (SRO), which is responsible for the current GT2 regulations, gives center stage to the weight-to-power ratio as a leveling factor. Thus, with some 2.1 kg/hp, a balance is to be created between GT2 race cars using naturally aspirated engines and nominally clearly more powerful models with turbocharged engines.
This idea aims to close a gap in international GT racing. Audi Sport customer racing has been present in GT3 racing with the R8 LMS since as far back as 2009 and in the GT4 entry-level category since 2018. With very high aerodynamic downforce and ample pedigreed racing technology, the GT3 model, in terms of expense, setup and vehicle control, tends to address pros. The GT4 category offers young drivers being promoted from lower categories, as well as amateurs and gentlemen, a GT race car that is easy to control and very economical in terms of purchasing costs. While the GT2 race car outperforms both models with regard to engine power and top speed, its concept is designed to be nearly as fast as a GT3 when it comes to lap times. Hence its high longitudinal dynamics with limited lateral acceleration primarily addresses gentlemen drivers. This is precisely the target group for which the new GT2 class has been created.
In terms of technology, the Audi R8 LMS GT2 is based on the production version. The Audi Space Frame (ASF) with its intelligent material mix of aluminum and CFRP forms the basic structure of the race car, while a steel roll cage provides the required safety in racing. The geometry of the chassis corresponds to the Spyder version, just like the door cut-out. The extruded profiles in the roof area have been adopted from the Coupé. The cockpit section is completed by a slim-tailored hard top that gives the bodywork a unique, lean-sculptured look. Like the other body parts, it is made of CFRP for weight reasons. The cage consisting of tubes that, compared to the GT4 model, have a lower wall thickness but high strength due to higher-grade steel, additionally reduces mass. With a dry weight of 1,350 kilograms, the Audi R8 LMS GT2 tips the scales at 100 kilograms less than, for instance, the GT4 version.
Aerodynamically, the GT2 race car clearly differs from its siblings. Healthy temperature management of the engine is guaranteed by the voluminous radiator at the front end with CFD-optimized air flow channels. Unlike the GT3 and GT4, the vents are on the right and left, causing the air to flow past the windshield in order to avoid thermal conflicts with the engine’s air intake on the roof. The sideblades in front of the rear wheels follow the form prescribed by the R8 Spyder. However, they expose a larger cross section for air intake. A new front splitter, CFRP underfloor sections and a rear diffusor featuring the well-known GT4 geometry, but made of CFRP in the GT2 model, channel the air underneath the race car. The innovative rear suspension of the rear wing enhances air flow to the car and generates further downforce on the rear axle.
The wheel suspension with double wishbones front and rear as a pure racing suspension has been redesigned for weight reasons. Audi Sport combines new hub carriers and wishbones with the brake calipers of the GT3 version on the front axle and the GT4 brake calipers on the rear axle. The suspension struts have been adopted from the same modular kit as their counterparts for GT3 and GT4. In the steering system with its electrohydraulic servo pump, Audi uses synergies from the GT4 modular kit.
Audi Sport has upgraded the electronic architecture including the Anti-Lock Braking System (ABS), Traction Control (ASR) and the Electronic Stability Program (ESP) versus the GT4 model. New software enables a four-level adjustment of the systems and is in line with the needs of the field of application.
In terms of safety, the Audi R8 LMS GT2 is top-class too. The Audi Protection Seat PS 3 optimally surrounds and supports the driver, while safety nets on the sides provide another increase in protection. The fire extinguishing system and six-point harnesses satisfy the high FIA standards. The safety fuel cell matches the design in the GT4 model, but has a 15-liter catch tank with a fill level sensor. A quick-refueling valve for endurance events can be ordered as an option. The safety steering column is adjustable in height and length and the pedals with their quick-adjustment mechanism sit on rails. Consequently, a precise seating position can be individually set for any physique. The rescue hatch in the roof facilitates access for the extrication team in the event of an accident. In this way, it makes it possible to remove the helmet of the driver in need of help and to apply a Kendrick Extrication Device for stabilization. The windshield and the side windows are made of lightweight and strong Makrolon. The camera-based digital rear-view mirror is new because the race car has no rear window due to the voluminous intake system. The construction of the doors is new too. They are made of carbon fiber and together with the CFRP-AFRP side impact protection with aluminum honeycomb that has been mandatory since 2019 satisfy the latest safety requirements for side impact protection.
This comprehensive package of power and performance, fascination and safety predestines the Audi R8 LMS GT2 as an ideal race car for gentlemen drivers and automobile enthusiasts who would like to call a future collector’s item their own.
