Audi e-tron quattro concept revealed in full

Flow-enhanced design with a drag coefficient of 0.25; a powerful, all-electric e-tron quattro drive with up to 370 kW – Audi is presenting the Audi e-tron quattro concept at the International Motor Show (IAA) 2015 in Frankfurt. The car is the company’s statement about the future of electric mobility: It is sporty, efficient and suitable for everyday use.

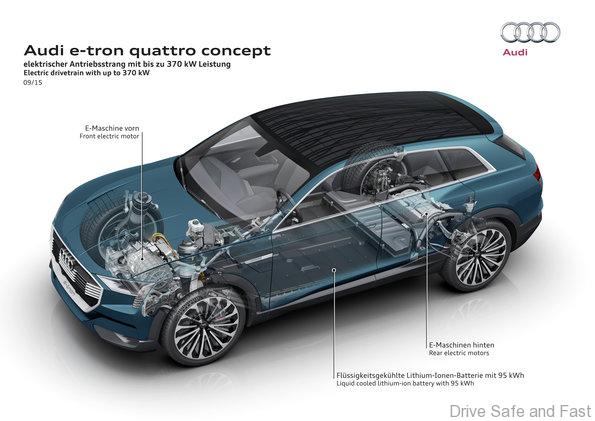

Electric drivetrain with up to 370 kW

The Audi e‑tron quattro concept uses the power of three electric motors: One electric motor drives the front axle, the two others act on the rear axle. Total output is 320 kW. The driver can even mobilize 370 kW and over 800 Nm (590.0 lb-ft) of torque temporarily while boosting. The concept study thus performs like a sports car. When the driver floors the right pedal, the Audi e‑tron quattro concept sprints from a standstill to 100 km/h (62.1 mph) in 4.6 seconds and quickly reaches the electronically governed top speed of 210 km/h (130.5 mph).

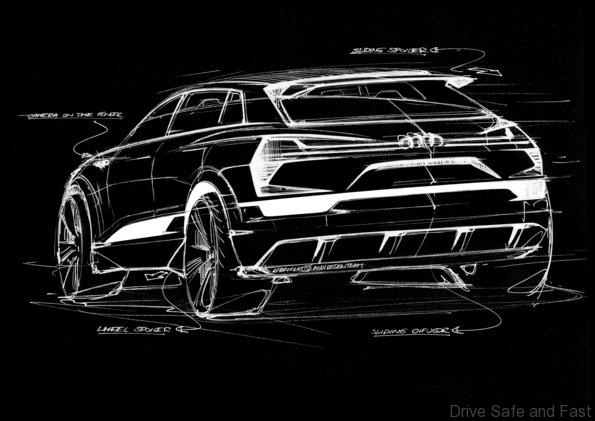

Design Sketch

An intelligent drive management system controls the interplay between them as appropriate for the situation. The focus here is on the greatest possible efficiency. The driver decides on the degree of recuperation, the driving program S or D and the mode of the Audi drive select system. During sporty driving on a winding road, the Torque Control Manager actively distributes the power between the rear wheels as necessary. This torque vectoring provides for maximum dynamics and stability.

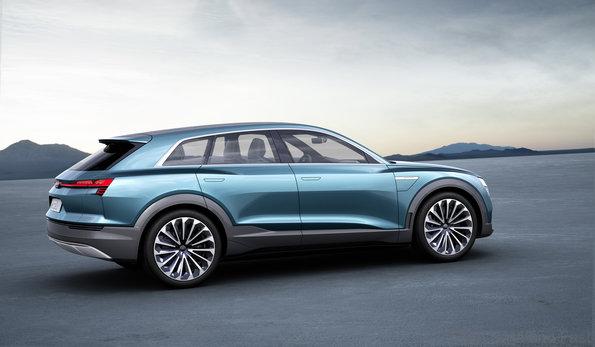

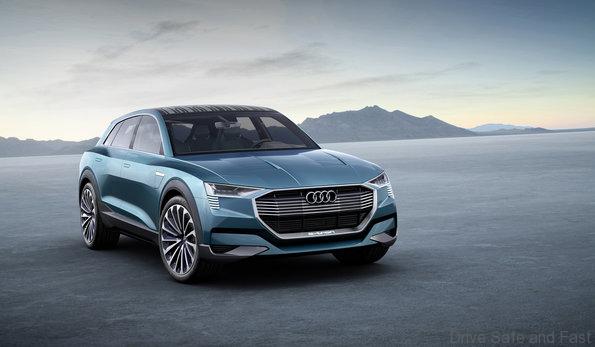

Static photo, Colour: electric green

The large lithium-ion battery is integrated into the floor of the passenger compartment. It gives the Audi e‑tron quattro concept a balanced axle load distribution and a low center of gravity – prerequisites for its dynamic handling. The battery’s capacity of 95 kWh enables a range of more than 500 kilometers (310.7 mi). The Combined Charging System (CCS) enables charging with DC or AC electrical current. A full charge with DC electrical current at a charging column with an output of 150 kW takes just around 50 minutes.

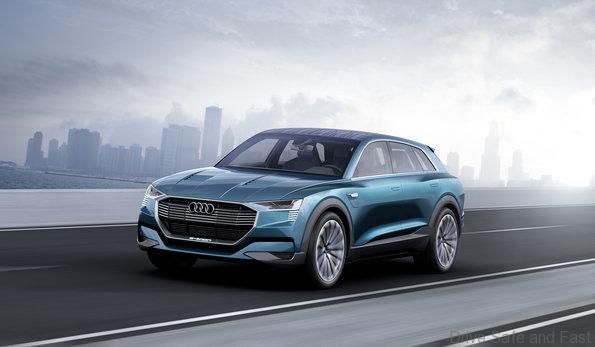

Dynamic photo, Colour: electric green

The chassis also expresses the high-tech character of the concept study. The adaptive air suspension sport, which features controlled damping, lowers the body at higher speeds to reduce drag. The dynamic-all-wheel steering combines a dynamic steering system on the front axle with a steering system for the rear wheels. Depending on speed and the driving situation, they steer either opposite or in the same direction as the front wheels. The Audi e‑tron quattro concept thus reacts even more spontaneously and stably, and is also very manoeuvrable at low speeds.

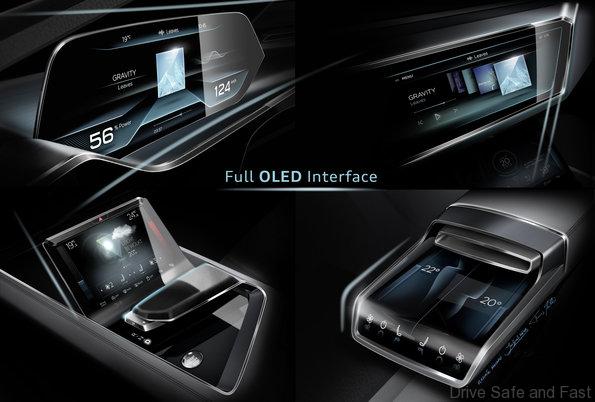

The front display, which is curved upward, offers some gesture controls and visualizes the climate control system. The two rear passengers in the Audi e-tron quattro concept have their own OLED displays.

The new Audi virtual cockpit curved OLED is a further development of the Audi virtual cockpit that debuted in production vehicles in 2014. To the left and right below the fully-digital instrument cluster are two touch displays with black glass and a subtle aluminum frame. The driver controls the lights and the systems for piloted driving with the left display. The large display on the right is for media and navigation management. The steering wheel serves as an alternate control level. Its spokes are equipped with contoured touch surfaces.

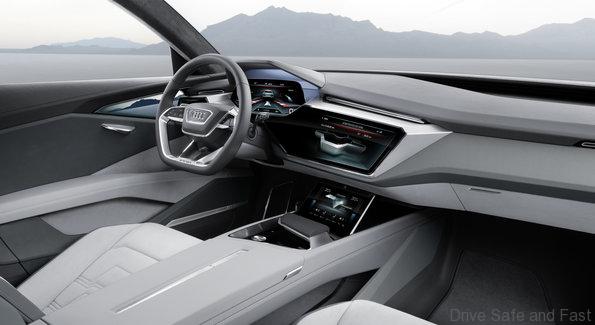

Interior

The concept study is equipped with all the technologies that Audi has developed for piloted driving: radar sensors, a video camera, ultrasonic sensors and a laser scanner. The data these supply come together in the central driver assistance controller (zFAS) in the luggage compartment. It computes a complete model of the car’s surroundings in real time and makes this information available to all assistance systems and the systems for piloted driving. These technologies are also nearly ready for use in production vehicles.
