Corum Admiral’s Cup AC-One 45 Tides


Published on November 6th, 2015 | by Daniel Sherman Fernandez


Corum Admiral’s Cup AC-One 45 Tides

Corum Admiral2

The Admirals’ Cup returns with a reworked design. 21 years after its launch, this model with its mechanical movement driving indications of the time and strength of the tides, the lunar cycle, as well as the strength of the currents and the height of the tides, remains a truly unique complication in the Fine Watchmaking world. Its exclusive nature forcefully reaffirms Corum’s longstanding, solid nautical anchorage.

From the dawn of time, the lives of seagoing professionals have been governed by the rhythms of the tides. In most part of the world, they follow a twice-daily lunar cycle, with the tide coming in on average every 12hrs 25 minutes, before receding again. Created in 1993, the CO 277 caliber beating at the heart of the Admiral’s Cup AC-One 45 Tides was specifically designed for these coastal regions.

No less than three years of development, conducted in collaboration with the Astronomic Observatory of Geneva and the SHOM (Hydrographic and Oceanographic Services of the French National Navy) based in Brest, were required to create this highly exclusive “tides movement”.

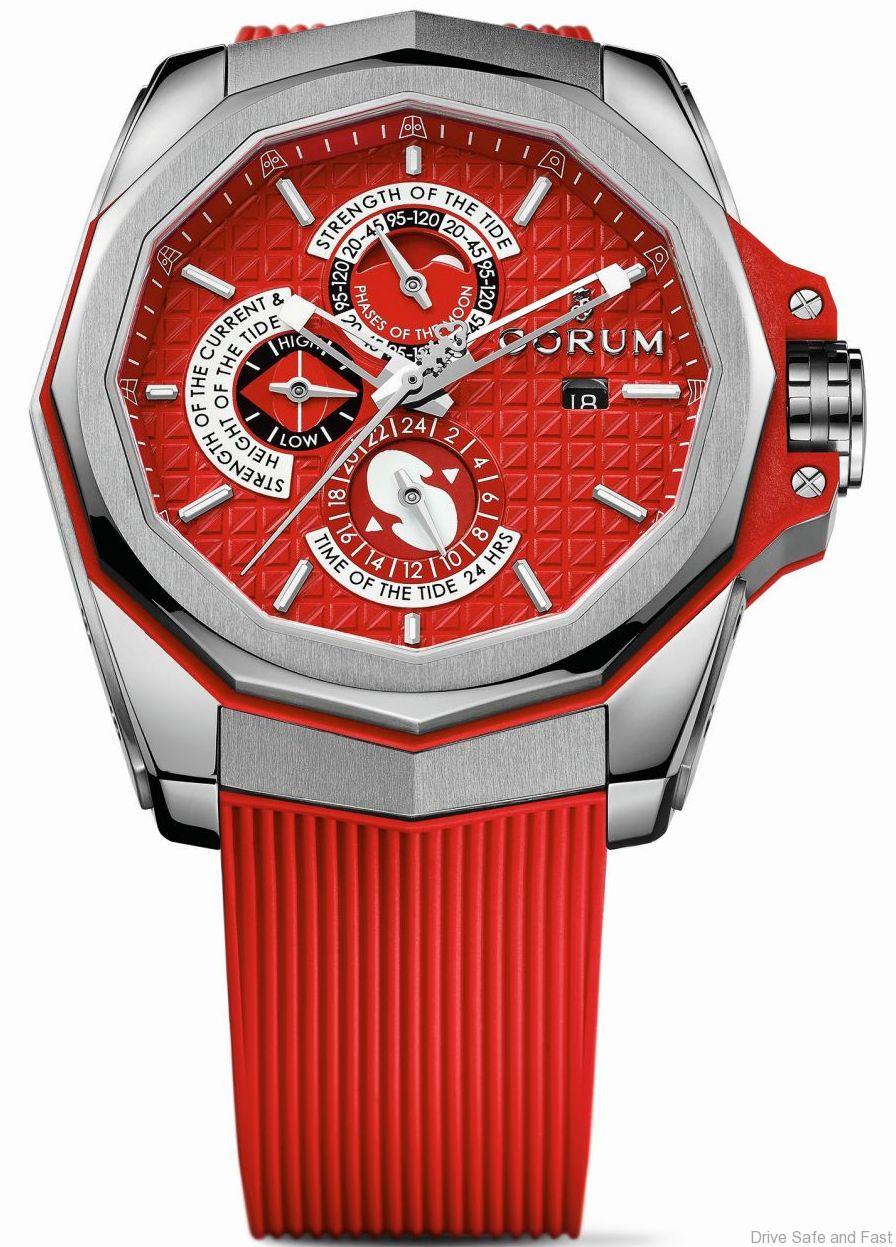

The CO 277 caliber now provides its essential navigation-related indications on a striking red dial bearing sub-dials that are more graphically styled than ever. The Moon, which determines tidal movements, appears at 12 o’clock. When it is full or black (new moon), meaning when it is aligned the Earth and the Sun, the amplitude or strength of the tides – indicated by a dedicated hand on the dial – is at its peak, with a coefficient of between 95 and 120, dipping to between 20 and 45 during the first and last moon quarters.

Corum Admiral3

The 6 o’clock sub-dial indicates the time of the two next tides in the next 24-hour period. To know whether the tide is rising or ebbing, the user need only consult the counter at 9 o’clock, which also indicates the current strength. The maximum tide intensity is shown when the pointer is on the horizontal red line. The strength of the current declines when the hand moves towards the high and low tides indicator reaching its lowest strength when the hand can align with the vertical white line.

These remarkably legible sub-dials are elegantly arranged on a main dial adorned with Corum’s famous and exclusive “split pomegranate” motif, while the iconic nautical pennants on the inner bezel ring lend an elegant overall sense of depth.

An authentic SHOM-certified precision navigating instrument, the CO 277 caliber beats at the rate of 28,800 vibrations per hour and has a 42-hour power reserve. Also driving a date display at 3o’clock, it is housed in the emblematic 12-sided Admiral’s Cup case entirely worthy of its performances. The latter is made in grade 5 titanium and remarkably light despite its powerful style and generous 45 mm diameter. Its layered structure features red PVD-treated titanium inserts echoing the color of the dial and the vulcanized rubber strap secured by a folding clasp. Clearly built for adventure, it is water-resistant to 300 meters and fitted with a sapphire back providing an admirable view of the CO 277 movement.
Corum Admiral4
Technical details
Model: Admiral’s Cup AC-One 45 Tides
Reference: A277/02647 – 277.101.04/F376 AR12

Dimension: 45 mm
Thickness: 14.30 mm
Case material: Titanium grade 5
Bezel material: Titanium grade 5
Case sides: Titanium grade 5
Crown material: Titanium grade 5; Engraved CORUM key
Crown protector material: Titanium grade 5
Crystal: Sapphire crystal with anti-reflective treatment
Back type: Open back cover in titanium grade 5 with glare proof sapphire crystal
Water-resistance: 300 meters / 30 ATM

Movement number: CO 277
Winding system: Automatic
Power reserve: 42 hours
Frequency: 4 Hz, 28’800 vph
Dimension: 11 1/2”’
Rubies: 21
Movement finishes: Rotor with CORUM dedicated decoration; Skeletonized and circular shaped rotor

Hour, Minute, Seconds
Timing of the next two high and low tides
Current strength & tidal process indicator

Colours: Red
Material: Brass
Hourly nautical pennants transferred on the flange
Minute-circle indexes transferred on the flange
Applied rhodium-coated minute indexes withwhite superluminova
CORUM logo applied on the dial
“Grenadier fendu” finishing

Hour and minute: Dauphine-variant, Rhodium coated, Faceted, Skeleton, White superluminova
Second: Baton with CORUM key, Rhodium coated
Counters: Dauphine-variant, Rhodium-coated, Faceted

Material: Vulcanized rubber
Colours: Red
Interhorn/Buckle: 23/20 mm
