0Unique Power Unit and Body Innovations Promise ‘Instant Response’ for Honda NSX Drivers

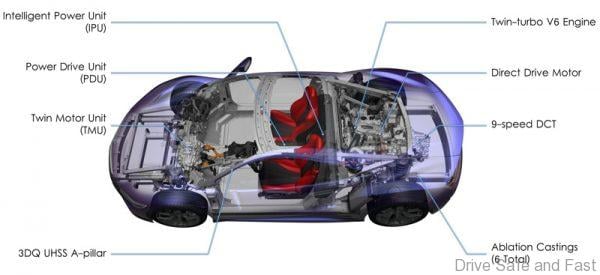

The combination of technologies incorporated within the NSX’s Sport Hybrid SH-AWD power unit delivers virtually zero-delay performance. At the heart of the new Sport Hybrid SH-AWD is a mid-mounted twin-turbocharged 3.5-litre V6 gasoline engine, mated to an all-new nine-speed dual clutch transmission (9DCT) and a Direct Drive Motor. This is augmented by the front-mounted Twin Motor Unit (TMU), which provides independent drive force to each front wheel meaning the NSX benefits from active all-wheel drive.
The new nine-speed Dual Clutch Transmission (9DCT) produces almost instantaneous gear changes with the Twin Motor Unit maintaining drive during the shift to create a direct and seamless shift quality.
In order to provide instant throttle response, the Direct Drive Motor acts directly on the engine’s crankshaft. Working in unison with the engine via a sophisticated algorithm, the direct drive motor contributes to a direct, linear, and continuous acceleration performance that is unmatched in its class.
From a standing start, the TMU provides instant torque as well as all-wheel drive traction, enabling direct and controlled acceleration. When braking into a corner, the Sport Hybrid SH-AWD uses the TMU to decelerate, working in conjunction with the NSX’s mechanical brakes, while Direct Yaw Control delivers immediate and precise turn-in performance. When exiting a corner, Sport Hybrid SH-AWD enables the throttle to be applied earlier and with more confidence.
The use of these systems together conveys the sensation that the car is anticipating the driver’s inputs. The system is able to elevate the driver’s confidence and their perceived driving capabilities, thus maximising the NSX’s man/machine performance and dynamic enjoyment.
The character of the NSX’s dynamic performance can be tailored to the driver’s preference via the Integrated Dynamics System (IDS). Four selectable dynamic modes – Quiet, Sport, Sport+ and Track – unlock a wide range of new experiences by adjusting the vehicle’s dynamic responses, including the steering, brakes, throttle, active dampers, intake and exhaust sound and notably the Sport Hybrid SH-AWD power unit.
Body structure innovations enhance torsional rigidity
Honda’s engineers were challenged with creating a structure that provides the optimal platform for its advanced power unit. They employed world-first engineering and production techniques for the multi-material body to provide class-leading structural rigidity that supports the dynamic handling of the car, and to meet targets for driver visibility, crash safety performance, durability and reliability.
For example, ablation cast aluminium frame nodes enable shorter front and rear overhangs, and reduced mass while providing superior collision performance. Meanwhile, three-dimensional bent and quenched frame members create thin yet strong A-pillars that maximise forward visibility while meeting structural demands, including roof-crush requirements.
The result is a body with more than twice the rigidity of the nearest class competitor in both dynamic and static torsional stiffness. Adding this to the power unit innovations provides the driver with a package that interprets inputs into vehicle responses with incredible fidelity and enhances the confidence of the driver. The rigid chassis working in conjunction with the advanced power unit- translates the driver inputs (steer, brake, and throttle) with incredible precision and fidelity- enhancing driver confidence and delivering a new sports experience.
