Porsche Panamera 2017 model, all you need to see & know

p16_0603_a5_rgb

Unmistakably a Porsche, unmistakably a sports car, this new Panamera comes with long, dynamic proportions, pronounced shoulders, athletic flanks and an extremely fast roof line that creates a stylistic link to Porsche’s design icon, the 911. To elevate this formula to a new level, all of the second generation Panamera’s engines have been redesigned.

p16_0591_a4_rgb-1024x684

Three new biturbo direct injection engines are being introduced at the market launch: in the Panamera Turbo, the Panamera 4S and the Panamera 4S Diesel. All of them and for the first time fitted with a new 8-speed Porsche dual-clutch transmission (PDK).

p16_0590_a4_rgb-1024x684

A V8 petrol engine that delivers 550hp powers the Panamera Turbo and a V6 petrol engine with 440hp drives the Panamera 4S.

p16_0601_a4_rgb

In the Panamera 4S Diesel, a V8 with 422hp generates powerful thrust and a maximum torque of 850Nm.

p16_0608_a5_rgb-300x200

The new Porsche Panamera reconciles two contrasting characteristics more than ever before: the performance of a genuine sports car and the comfort of a luxury saloon.

p16_0604_a5_rgb

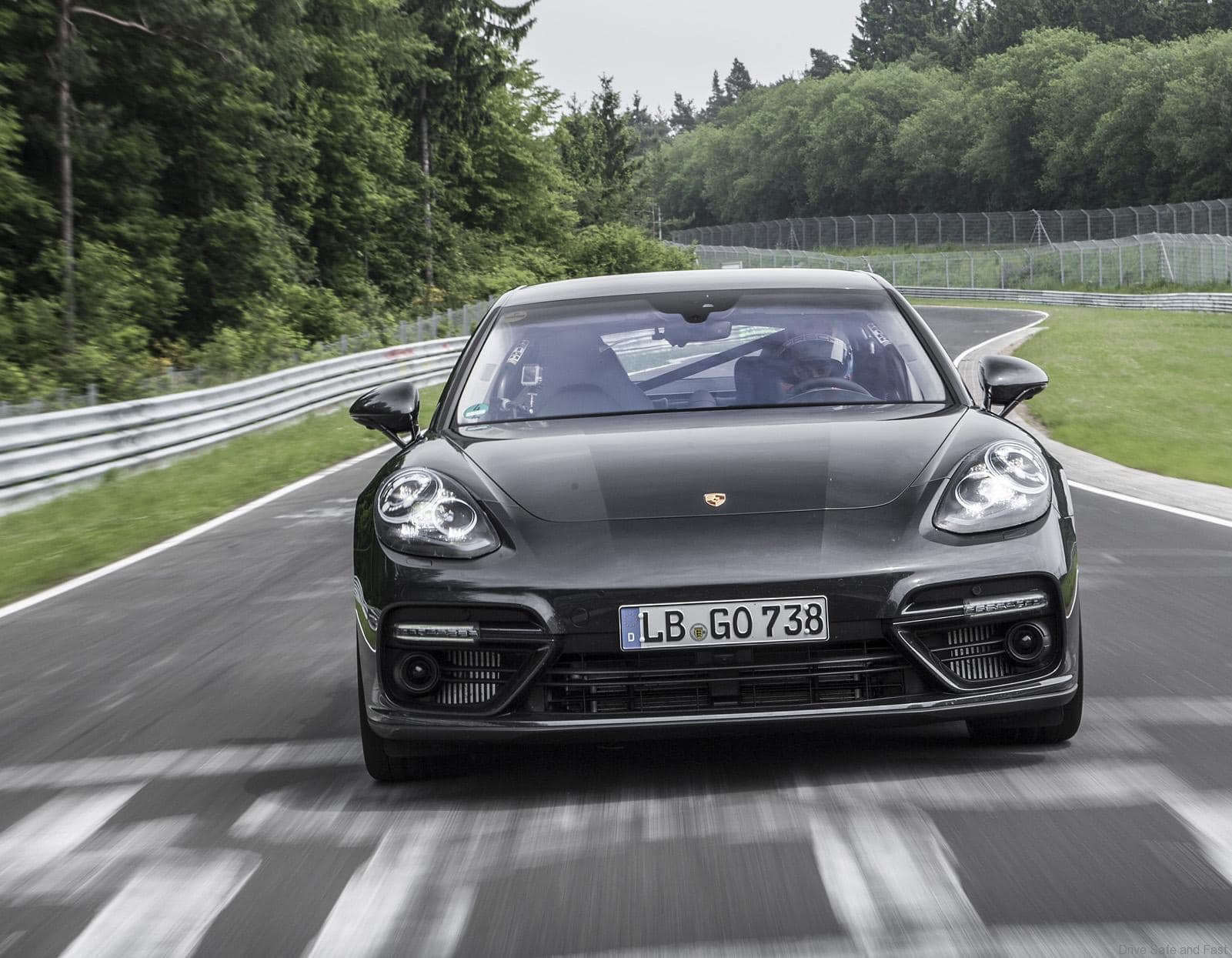

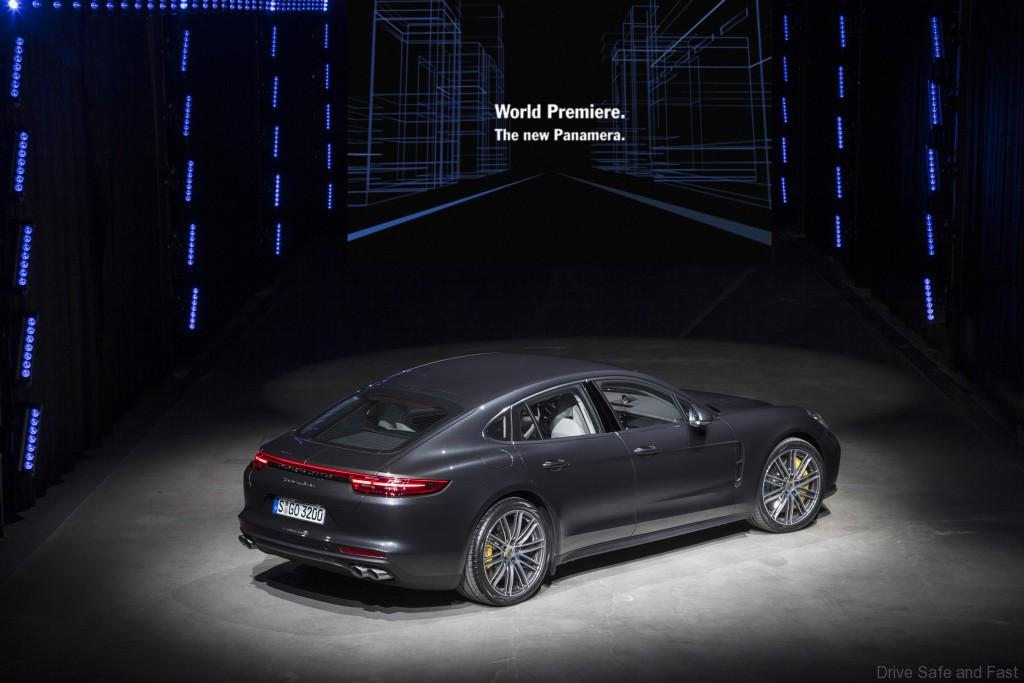

It is a Gran Turismo that has been rethought and realigned. The second generation of the Panamera is advancing to become a performance icon of the luxury class. In this transformation, Porsche has systematically improved the Panamera concept – with a four-door car that has been redeveloped and redesigned down to the last detail. Its engines and transmissions have been redesigned, its chassis perfected, and its display and control concept reinterpreted for the future. The new Panamera also extends the borders between the world of ambitious sports cars and the world of comfortable cruising cars with highlights such as rear axle steering, active roll compensation and three-chamber air suspension.

p16_0589_a4_rgb-1024x683

911 design language

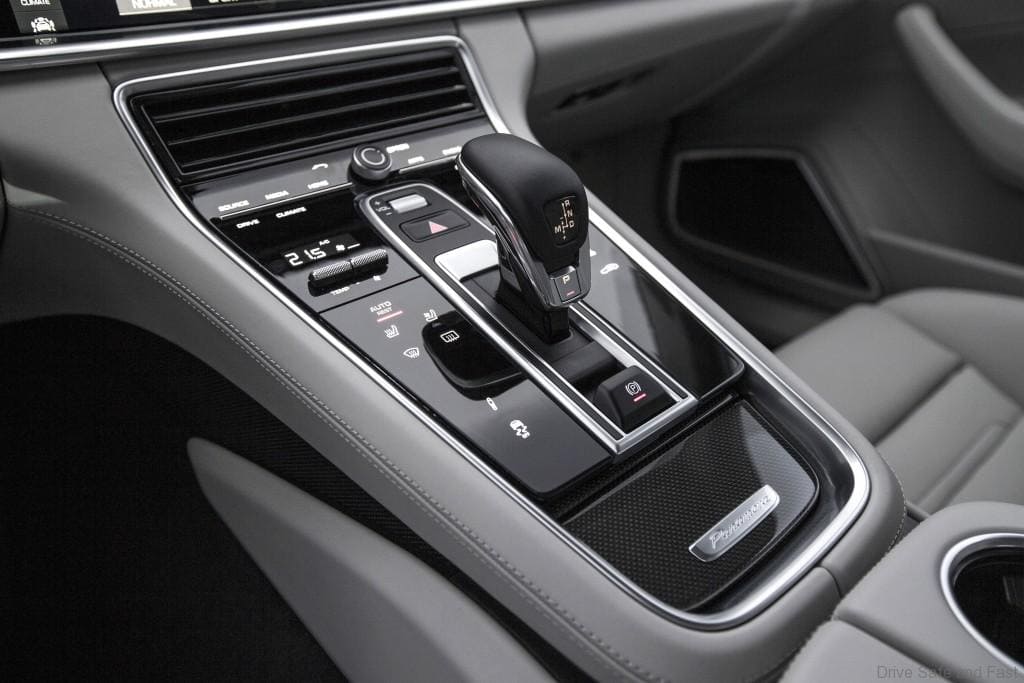

Visually, the unique concept of this large Porsche is reflected in a new expressive design: unmistakably a Panamera, unmistakably a sports car – with long, dynamic proportions, pronounced shoulders, athletic flanks and an extremely fast roof line that is 20 mm lower at the rear. This typical Porsche flyline creates a stylistic link to Porsche’s design icon, the 911.

p16_0588_a4_rgb-1024x683

p16_0587_a4_rgb-1024x682

Porsche Advanced Cockpit

The typical Porsche interior has been reinterpreted for the future in the new Panamera. Black panel surfaces and interactive displays combine a clear and intuitive user interface like that of smartphones and tablets with the practical requirements for controlling the car.

p16_0585_a4_rgb-1024x684

Classic hard keys and conventional instruments have been reduced significantly. They have been replaced by touch-sensitive panels and individually configurable displays which take centre stage in the new Porsche Advanced Cockpit – with great benefits for the driver as well as the front and rear passengers. Despite a significantly extended range of communication, convenience and assistance systems, different functions can now be used and operated more clearly and intuitively. The Porsche Advanced Cockpit transforms the analogue world into the digital present of mobility, while leaving room for passion. The tachometer, positioned centrally in the instrument cluster, is a tribute to the 1955 Porsche 356 A.

p16_0581_a4_rgb-1024x683

New V6 and V8 biturbo engines with ample sound

A Porsche has always impressed with more than just power; its efficiency is equally important. To elevate this formula to a new level, all of the second generation Panamera’s engines have been redesigned. They have all been made more powerful, while significantly improving fuel economy and reducing emissions. Three new biturbo direct injection engines are being introduced at the market launch: in the Panamera Turbo, the Panamera 4S and the Panamera 4S Diesel.

p16_0580_a4_rgb-1024x684

All of them and for the first time including the diesel may be equipped with a permanent all-wheel drive system and a new eight-speed Porsche dual-clutch transmission (PDK).

p16_0583_a4_rgb-1024x684

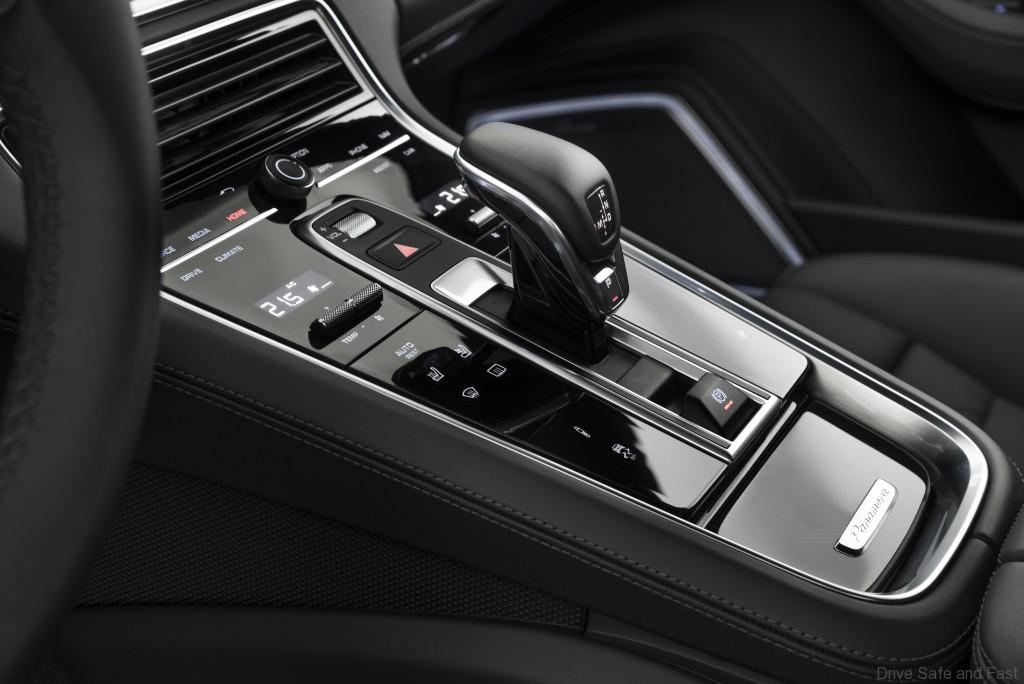

A V8 petrol engine that delivers 550hp powers the Panamera Turbo and a V6 petrol engine with 440hp drives the Panamera 4S.

p16_0582_a4_rgb-1024x683

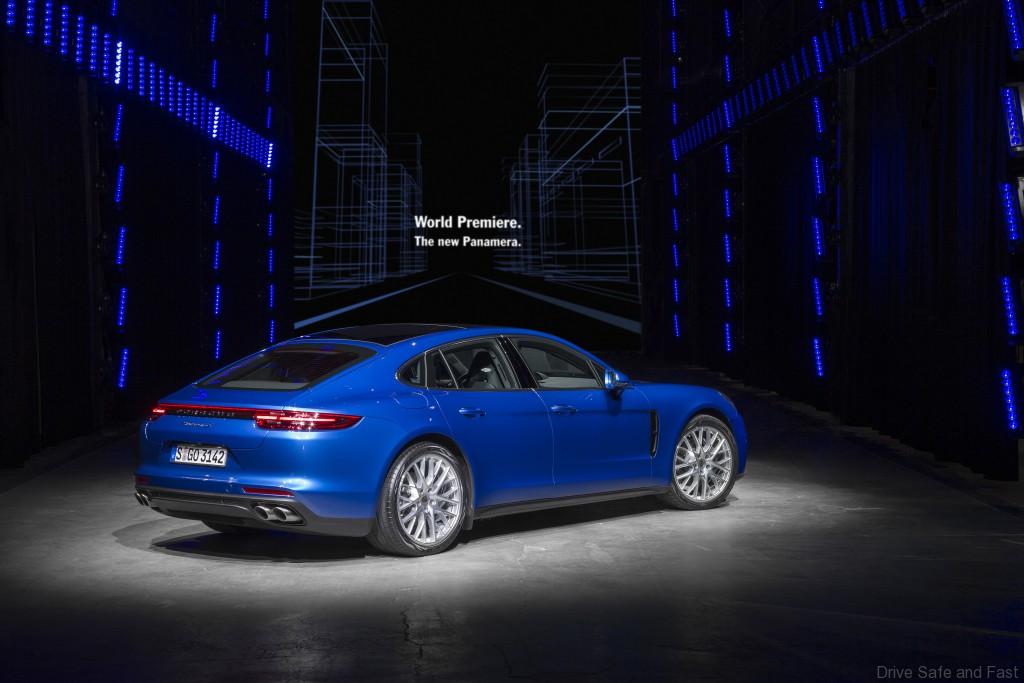

In the Panamera 4S Diesel, a V8 with 422hp generates powerful thrust and a maximum torque of 850Nm.

p16_0584_a4_rgb-1024x683

A luxury saloon for race track use also

In keeping with the overall concept of the new Panamera, the chassis also unites the cruising comfort of a luxury saloon with the performance of a true sports car. This is achieved by supplementing the impressive basic layout with optional innovative systems such as an adaptive air suspension with new three-chamber technology, including Porsche Active Suspension Management (PASM electronic damper control), the enhanced Porsche Dynamic Chassis Control Sport (PDCC Sport) system including Porsche Torque Vectoring Plus (PTV Plus) and active roll stabilisation, as well as a new electromechanical steering system.

p16_0600_a5_rgb

The integrated 4D Chassis Control system analyses and synchronises all chassis systems in real time and optimises the road performance of the new Panamera. Porsche is also taking the steering precision and handling of sports cars into the class of Gran Turismo cars with rear axle steering – which is also new and has been adapted from the 918 Spyder and 911 Turbo. Brake performance has also been improved.

p16_0411_a5_rgb-300x212

Next generation assistance systems

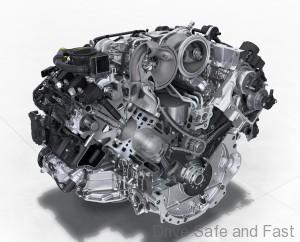

The Panamera is equipped with many standard and optional assistance systems, which make life while driving more convenient and safer. The most important new systems include a night vision assistant, which uses a thermal imaging camera to detect people and large animals and displays a colour highlighted warning indicator in the cockpit. If the optional new LED matrix headlights with 84 image points are selected, people beyond the visual range of the dipped beam headlight are also illuminated briefly if they are in the computed driving corridor, allowing the driver to react even faster. The new night vision assistant is one of the assistance systems that helps to avoid critical situations in advance. Looking especially far ahead along the road is the new Porsche InnoDrive, which includes adaptive cruise control. Based on navigation data and signals from radar and video sensors, it computes and activates the optimal acceleration and deceleration rates as well as gear selections and coasting phases, for the next three kilometres. In doing so, this electronic co-pilot automatically takes bends, inclines and speed limits into account.

p16_0412_a5_rgb-300x242

p16_0413_a5_rgb-300x242

More power, better fuel efficiency

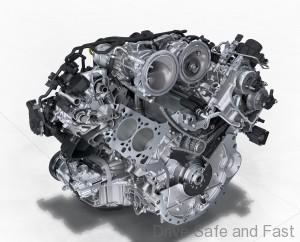

New, powerful and fuel-efficient: the V6 and V8 turbo engines of the Panamera. And they all share a special conceptual design characteristic, which in the jargon of engine developers is known as “with the hot sides inward”. Translated, this means that the turbochargers of the new Panamera engines are integrated centrally into the V of the cylinder banks. This central turbo layout yields numerous benefits: The engines are more compact, and this enables a lower mounting position. This, in turn, has a positive effect on the vehicle’s centre of gravity. The short paths between the two turbochargers and the combustion chambers produce spontaneous throttle response. Engine response can be further increased using the optional Mode Switch with the Sport Response Button. The Mode Switch, which was first introduced in the Porsche 918 Spyder, is an intuitively operated rotary ring on the steering wheel, which can be used to activate one of four driving modes (Normal, Sport, Sport Plus or Individual). Located at the centre of the switch is the Sport Response Button. It can be used to free up the maximum power potential of the Panamera at the press of a button.

GoodYear-D5-A2(640x98)

p16_0414_a5_rgb-300x242

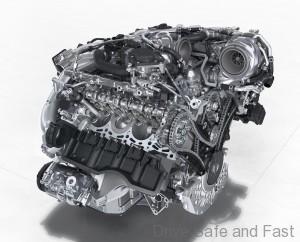

Initially, the Panamera Turbo has the most powerful petrol engine of the model series. Its 4.0-litre biturbo V8 develops 404 kW / 550 hp (at 5,750 rpm) and a maximum torque of 770 Nm (between 1,960 and 4,500 rpm). It has 30 hp more power than the previous model, and its maximum torque has been increased by 70 Nm. The eight-cylinder engine accelerates the Panamera Turbo to 100 km/h in 3.8 seconds; with the Sport Chrono Package the sprint time is just 3.6 seconds. The Porsche can reach a top speed of 306 km/h. These are impressive figures that illustrate just how easily the engine can propel the Panamera with its power-to-weight ratio of just 3.6 kg/hp. These extraordinary performance figures contrast with lower combined fuel consumption figures which, at 9.4 – 9.3 l/100 km, are up to 1.1 l/100 km less than that of the previous model (New European Driving Cycle or NEDC). These figures equate to CO2 emissions of 214 – 212 g/km.

p16_0416_a5_rgb-300x212

Porsche uses complex twin-scroll turbochargers to supply compressed air to the V8’s combustion chambers. The two counter-rotating chargers produce maximum torque figures at very low engine speeds. The Panamera Turbo is also the first Porsche to be equipped with the new adaptive cylinder control in its engine. In part-load operation, the system temporarily and imperceptibly turns the eight-cylinder into a four-cylinder engine. This reduces fuel consumption by up to 30 per cent, depending on power demand in the four-cylinder phases.

p16_0415_a5_rgb-300x242

GoodYear-GY_Duraplus_640x98d

The 2.9-litre V6 biturbo engine of the Panamera 4S develops a maximum power of 324 kW/440 hp (20 hp more than the previous model); it is already available at 5,650 rpm., Between 1,750 and 5,500 rpm, the new six-cylinder delivers 550 Nm (30 Nm more) to the drive axles. The Panamera 4S can reach 100 km/h in just 4.4 seconds (4.2 seconds with the Sport Chrono Package). With a top speed of 289 km/h, this Porsche also approaches the 300 km/h mark. The NEDC combined fuel consumption is 8.2 – 8.1 l/100 km (186 – 184 g/km CO2). Compared to the first generation Panamera 4S, this represents a fuel saving of up to 1.0 l/100 km or eleven per cent.

p16_0410_a5_rgb-300x212

Like the eight-cylinder engine of the Panamera Turbo, the six-cylinder engine of the Panamera 4S also has petrol direct-injection injectors that are positioned in the combustion chamber. This injector position offers optimal combustion, maximum efficiency and very good engine response. The 4S and Turbo are also characterised by exceptionally full-bodied and authentic sound.

p16_0411_a5_rgb-300x212

The new Panamera is launching with a new eight-cylinder diesel engine, for the first time in conjunction with permanent all-wheel drive. The most powerful diesel implemented in a Porsche production car to date develops a power of 310 kW/422 hp (at 3,500 rpm) and an immense maximum torque of 850 Nm – which is constant over an engine speed plateau extending from 1,000 to 3,250 rpm. With a top speed of 285 km/h, the Porsche Panamera 4S Diesel is currently the world’s fastest production vehicle with a diesel engine. The Gran Turismo reaches the 100 km/h speed mark in 4.5 seconds (4.3 seconds with the Sport Chrono Package). This contrasts with a combined fuel consumption of 6.8 – 6.7 l/100 km (178 – 176 g/km CO2).

p16_0410_a5_rgb-300x212

The diesel model also has biturbo charging with a central turbo layout. However, its common rail engine (2,500 bar maximum injection pressure) is equipped with sequential turbocharging. This allows the engine to work as a biturbo or monoturbo, depending on the operating state. At low to moderate engine speeds, the entire stream of exhaust gas is directed solely through one of the two turbochargers, which improves throttle response. The otherwise passive second turbocharger does not become active until the engine speed reaches 2,700 rpm or more. Both turbo-chargers have variable turbine geometry (VTG) – a principle that is already familiar from the 911 Turbo.

p16_0602_a5_rgb

BHP-Harmony-in-Performance_DSF_Banner-English_650x85_20160610

Even more dynamic proportions

The exterior character of the Panamera has also been sharpened with the dawn of the second generation. It is based on very dynamic proportions. The new Panamera is 5,049 mm (+34 mm) long, 1,937 mm (+6 mm) wide and 1,423 mm (+5 mm) tall. Despite the slight increase in height, the four-door car looks much lower and longer. This is primarily due to the reduced height above the rear of the passenger compartment – reduced by 20 mm – while maintaining consistently good headroom. This changes the car’s overall image completely. The wheelbase has been increased by 30 mm to 2,950 mm; this too lengthens the car’s proportions. The front wheels were shifted further forward, reducing the front overhang and making the prestige dimension – the distance between the A-pillar and the front axle – even larger. The rear overhang is longer, giving the car a more powerful appearance.

p16_0601_a5_rgb

The Panamera has only grown six millimetres in width, but it feels like several centimetres. This effect is created by such features as the A-shaped air intake, which extends out to the sides and creates a completely new front-end design. At the same time, a precisely designed crossbar in the radiator grille emphasises the car’s width. The arrow-shaped bonnet over the engine accelerates this visual effect further forward and lower than before – due to the prominently contoured powerdome, whose lines now reach into the bumper. The lower front end was enabled by the new compact construction of the engines in the vehicle concept. To the left and right of the powerdome, the bonnet blends precisely into the stronger flares of the front wings – a typical Porsche design trait. Also exuding confidence is the look of the LED headlights with their four-point LED daytime running lights, of which three versions are available.

p16_0603_a5_rgb

The new side body – like the bonnet, boot, roof and wings – is made entirely of aluminium, and it accentuates the silhouette of a sports car more than ever thanks to its dynamic roof line. At the rear, this roof line becomes the charismatic Porsche flyline – the distinctive lines that adorn all of the brand’s coupés. Two precisely executed edges on the lateral roof line visually lower the silhouette’s centre of gravity. The look of the side windows has also been redesigned: its visually continuous surface, together with its lines on the rear body, creates a stylistic affinity to the Porsche 911. Three-dimensionality characterises the doors and wings, where incident light shining on their convex and concave surfaces generates muscular tension. Integral design components there are the air exhaust ports behind the front wheels. The flared lips of the wheel arches are also powerful. The large arches provide space for the 19-inch (4S/4S Diesel), 20-inch (Turbo) and optional 21-inch alloy wheels.

p16_0606_a4_rgb

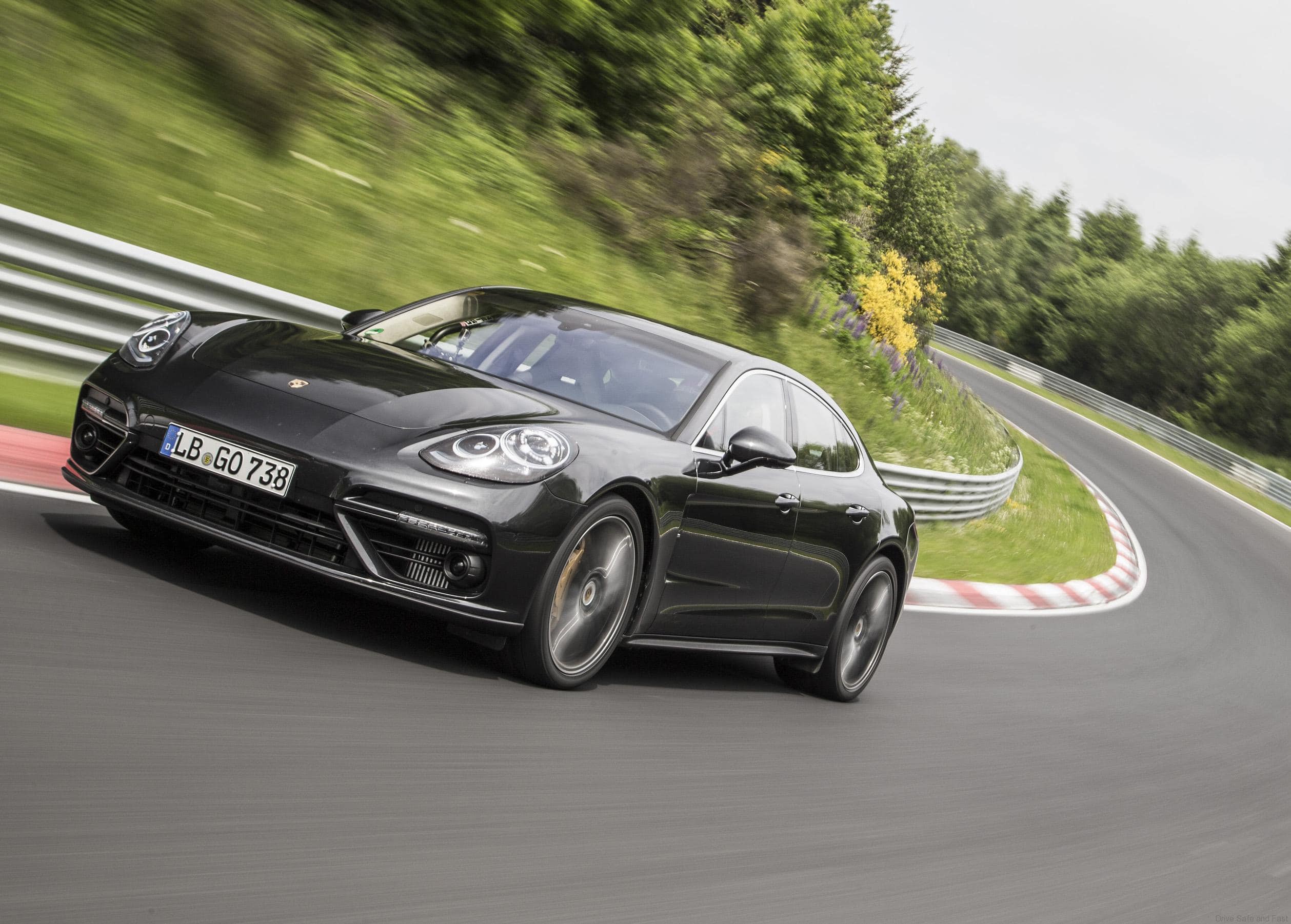

The fact that the Panamera is a four-door coupé and not a conventional saloon is clearer from the rear than from any other perspective. The ‘greenhouse’ – made up of the roof, roof pillars, window surfaces – is supported by a powerful and broad shoulder section. Clearly a Panamera, definitely a sports car. The most prominent components identifying the rear body are, without a doubt, the three-dimensional LED rear lights with integrated four-point brake lights. The rear lights are interconnected by a narrow LED strip. All of these elements together create an unmistakable night design. Integrated seamlessly and elegantly into the boot, which features electric opening and closing as standard, is the extendible rear spoiler that is now finished in body colour. On the Panamera Turbo, the wing also splits as it extends, thereby gaining additional surface area. Terminating the lower rear body is a diffuser into which the dual stainless steel tailpipes of the exhaust system are integrated on the left and right. The Panamera 4S and 4S Diesel can be recognised by their round tailpipes, while the Panamera Turbo has trapezoidal tailpipe trims.

p16_0601_a4_rgb

Porsche cabin connectivity

The new Panamera exhibits a completely new interior design. In many areas, touch-sensitive surfaces replace classic hard keys, and high-resolution displays merge into the interior. In the luxury saloon segment, the digitalisation of the Porsche interior, which began with the 918 Spyder, has reached the next development stage aboard the Panamera in the form of the new Porsche Advanced Cockpit. From the low seat position typical of sports cars, drivers not only see a fascinating front-end landscape of the car’s wings and powerdome, but also two 7-inch displays that are placed directly in the driver’s line of sight for ideal ergonomics. Located in the middle of these two displays is the tachometer, which is still an analogue instrument. Meanwhile, the gearshift console between the driver and the front passenger is dominated by the 12.3-inch touchscreen of the next generation Porsche Communication Management (PCM) system. The driver and front passenger can configure this display individually. Naturally, this is integrated into the PCM: Features such as online navigation, the online functions of Porsche Connect, smartphone integration via Apple Car Play and a new voice control system that responds to natural language input. The PCM area – with its high-end, high-resolution display – transitions harmoniously into the black panel concept of the centre console with a shift-by-wire gear selector for the PDK. A new control panel with touch-sensitive switches on the centre console enables intuitive control of various functions. Even the louvres of the central air vent are electrically adjusted by touch-sensitive sliders. Rear passengers can control air conditioning and infotainment functions using an optional four-zone automatic climate control system.

p16_0587_a4_rgb-1024x682

In addition, the Porsche Panamera offers the best layout variability of any model in the luxury class, making it the most practical for everyday use with a 40:20:40 split of the folding rear bench backrests (495 to 1,304 litres of luggage capacity). Raising the comfort experience of the Panamera to an entirely new level are new equipment options such as the panoramic tilt roof, massage seats, ambient lighting and a 3D high-end sound system from Burmester.

BHP-Harmony-in-Performance_DSF_Banner-English_650x85_20160610

p16_0603_a5_rgb
