Published on June 7th, 2022 | by Amirul Mukminin0
Harley-Davidson Low Rider ST And S Join Cruiser Lineup
The Low Rider models have been upgraded with power and performance enhancements for an unadulterated riding experience
The all-new Harley-Davidson Low Rider ST and Low Rider S have been officially launched on the Malaysian market, just five months after the pair’s global unveiling in January. According to Didi Resources, both bikes will be available for viewing at Harley-Davidson Malaysia’s open house that will be held at authorised dealerships across Malaysia on 11 and 12 June.
Like the Street Glide ST and Road Glide ST, which were launched here in April, both the Low Rider ST and S are powered by the 177 cubic-inch (1,923 cc) Milwaukee-Eight 117 V-Twin engine with 103 hp at 4,750 rpm and 169 Nm of torque at 3,500 rpm. A six-speed Cruise Drive transmission channels the output to the rear wheel.
Pricing for the Low Rider range starts from RM115,900.
Harley-Davidson injects exciting performance and adds versatility to its 2022 Cruiser motorcycle line-up with the introduction of the new Low Rider® ST and more powerful Low Rider® S models, with prices starting from RM 115,900. Both motorcycles offer the taut handling performance of the Harley-Davidson® Softail® chassis and the V-Twin muscle of a Milwaukee-Eight® 117 powertrain. The Low Rider S 117 model is an aggressive performance kingpin designed for the rider seeking unapologetic power. The new Low Rider ST model offers the versatility of hard bags and a fixed fairing. Both new models have a lean, performance-comes-first posture that defines California West Coast custom style.
The new models were unveiled on 26 January 2022 at the global virtual launch experience “Further. Faster.”. On 11 and 12 June, Harley-Davidson authorized dealerships across Malaysia will be hosting an Open House for the Low Rider® S, and the new Low Rider ST® Cruiser models, where customers can view the new motorcycles up close at their nearest dealerships.
“Powered by the Milwaukee-Eight 117 engine, the new Low Rider® S and Low Rider ST® are upgraded with power and performance enhancements for an unadulterated riding experience. The cruiser line is an all-time favourite and we believe that the new models will resonate well with our customers in Malaysia. Customers can now ride further, faster.” said Sajeev Rajasekharan, Managing Director, Asia Emerging Markets & India at Harley-Davidson.

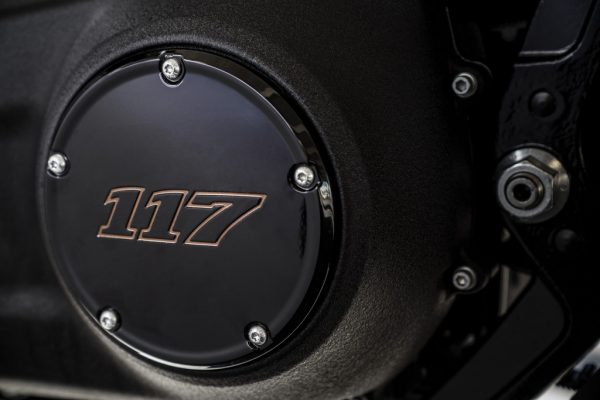

Milwaukee-Eight® 117 High-Performance Engine
The Milwaukee-Eight® 117 V-Twin engine with precision oil/air cooling is the pinnacle of torque and displacement from a factory-installed, regular-production Harley-Davidson® powertrain. This engine delivers outstanding performance and instant bragging rights on the street.
- 117 cubic inch displacement
- 125 ft. lbs. of torque at 3500 RPM for a performance boost the rider can feel with every twist of the throttle
- High-performance camshaft is matched to displacement and air flow intended to maximize performance
- High-performance, tuned Heavy Breather intake with forward-facing exposed filter element flows more air into the engine to produce exciting mid-range torque, and gives the motorcycle added hot rod presence
- High-performance 2-into-2 offset shotgun exhaust is tuned to provide smooth and broad mid-range torque while producing a stirring tone
- Dual counter-balancers reduce primary vibration at idle for improved rider comfort
- Dealer-installed Screamin’ Eagle® Performance Parts Stage Upgrades from Harley-Davidson® Genuine Motor Parts & Accessories are available to boost engine performance even further

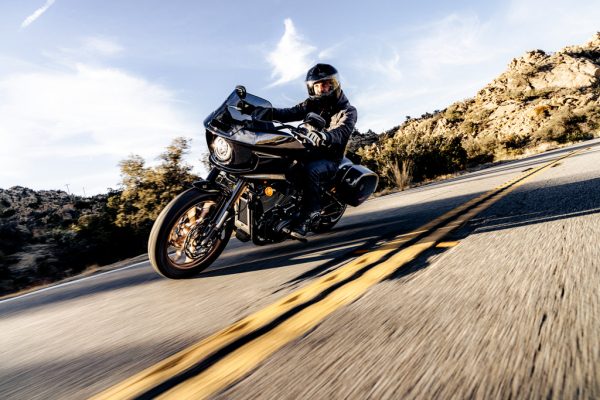

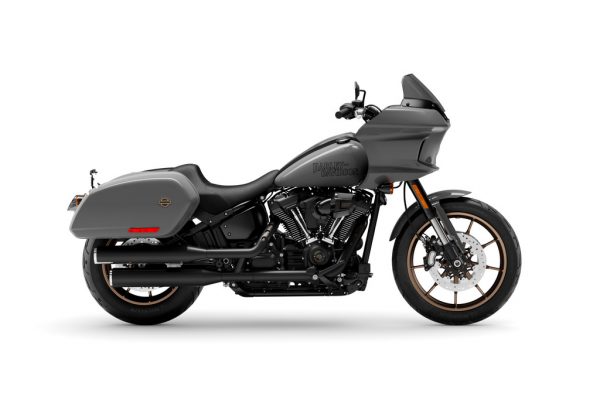

Low Rider ST Model
This is how Harley-Davidson does sport-touring, with style rooted in the California “tall bike” movement. The saddlebags ride high and tight, the rear suspension is jacked up, the handlebar is high, and the FXRT-inspired fairing is frame-mounted. The Low Rider ST model puts the rider in a commanding position on top of the bike, and the riding sensation is direct and reflexive. When the road trip is over, simply pop off the saddlebags to convert the Low Rider® ST model from cross-country mode to urban performance cruiser.
“A key element of this model is the frame-mounted fairing, which has a shape inspired by the classic FXRT Sport Glide model fairing favored by West Coast customizers,” said Brad Richards, Harley-Davidson Vice President of Design. “With a dominant central headlamp flanked by side vents, the genetic connection to the original FXRT remains familiar. The sharper creases and revised proportions in the Low Rider ST fairing provide a look that is intended to be modern, athletic and aerodynamically superior to the FXRT fairing. The raised fitment of the saddlebags high above the exhaust reinforces the performance of the model – the message being that these bags will not limit lean angle when the bike is pushed to the limit.”
The shape of the new frame-mounted fairing was developed through CFD (computational fluid dynamics) analysis and real-world testing. Triple fixed splitstream vents help limit rider head buffeting at highway speeds. A six-inch high windshield has a Dark Smoke tint, and the fairing holds a single 5.75-inch LED headlamp.
The lockable, rigid saddlebags feature a sleek clam-shell design that makes them easy to load and unload. The bags can be opened with one hand by a seated rider, and a damping device allows the saddlebag lids to open smoothly. The bags can be removed in seconds with an internal quick-release mechanism. Combined saddlebag capacity is 1.9 cubic feet (53.8 liters).
A deep solo seat helps hold riders in place during aggressive acceleration and cornering. A one-inch moto handlebar is mounted on four-inch pull-back risers while a low-profile textured-black console tops the five-gallon fuel tank. Instrumentation is presented by a compact digital display inset in the handlebar riser for a custom, “no gauges” look.
Ride and handling are enhanced by the chassis, optimized to reduce weight without sacrificing rigidity. The Milwaukee-Eight 117 powertrain is rigid-mounted in the frame to further enhance chassis stiffness. A 43mm inverted fork stiffens the front end for a responsive ride, and its single-cartridge internal technology keeps the front wheel planted for improved braking and handling performance. Fork rake is 28-degrees.
The Low Rider ST is equipped with a taller rear monoshock than the standard Softail® chassis monoshock (1/2-inch more stroke, 1-inch more rear wheel travel, ¾-inch higher at the seat) which raises the rear of the motorcycle. This provides improved ride comfort and increases lean angle by more than one degree, which improves dynamic performance for enhanced ground clearance and improved rider confidence during aggressive cornering. Under-seat hydraulic pre-load adjustment allows the rider to maintain optimal suspension performance for the prevailing load and road conditions. Dual front brakes with 300mm discs deliver the responsive braking demanded by aggressive riders. Standard ABS (antilock braking system) provides confident braking performance when conditions are less than ideal. Premium Michelin® Scorcher® 31 tires (Front 110/90B19, Rear 180/70B16) enhance ride and handling performance. Other features include a Signature LED headlamp, bright LED tail/brake lamps and a USB charging port.
Rugged, blacked-out styling includes Wrinkle Black finish on the powertrain, primary cover, triple clamps, top clamp, rear fender supports and tank console; the derby cover, intake, lower rocker covers, and handlebar riser are Gloss Black. The handlebar is Satin Black. The forks are anodized black. Mufflers and exhaust shields are Jet Black. Radiate cast-aluminum wheels (19-inch front and 16-inch rear diameter) are finished in Matte Dark Bronze for an intriguing contrast to the motorcycle’s dark components.
- Accessory Audio: A high-performance motorcycle deserves high-output audio. The accessory Harley-Davidson® Audio powered by Rockford Fosgate® – Inner Fairing Audio Kit was designed alongside the Low Rider ST for outstanding performance and an ideal fit within the fairing. The system includes a compact 250-watt amplifier with digital signal processing (DSP) technology and a pair of 5.25-inch woofers and two remote tweeters. Connect to a mobile device via Bluetooth to play stored or streaming audio. Learn More about the Harley-Davidson Audio powered by Rockford Fosgate.
Available Paint Colors: Vivid Black, Gunship Gray

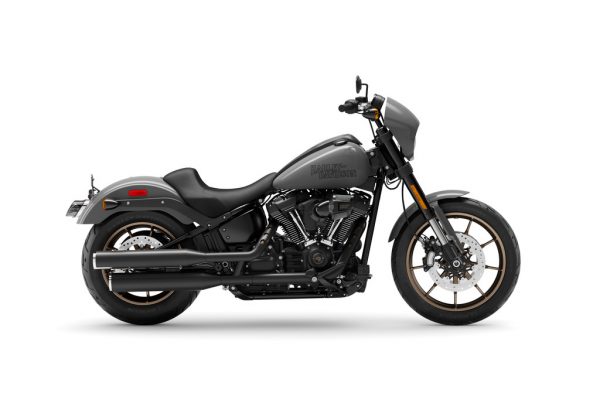

Low Rider S Model
The Low Rider S model is a cruiser designed for riders seeking unapologetic power and willing to push their bike to the limit. The Milwaukee-Eight 117 powertrain produces five percent more torque than Milwaukee-Eight 114 engine that powers the 2021 Low Rider S model, and gives its owner instant bragging rights. Premium suspension enhances the riding experience. Straight from the factory this bike bundles the big attitude of West Coast style and unrelenting performance previously only attainable with significant investment in accessories.

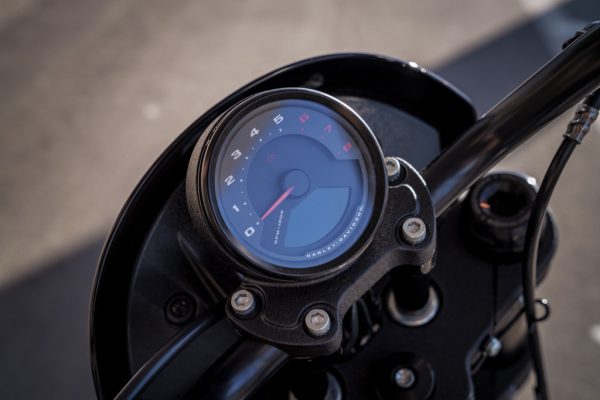

The 2022 Low Rider S model is equipped with a new handlebar-mounted combination analog tachometer/digital speedometer, which replaces the tank console instruments as seen on previous Low Rider S models. The handlebar location places the gauge closer to the rider’s line of sight. A low-profile textured black tank console with FXLRS badge now tops the fuel tank. Outstanding lighting performance is provided by a signature LED headlamp and LED tail/brake lights.
The same taller rear monoshock featured on the Low Rider ST model raises the rear of the Low Rider S model for improved ride comfort and 1.3 degrees more lean angle than the previous Low Rider S model for enhanced ground clearance and improved rider confidence during aggressive cornering. Under-seat hydraulic pre-load adjustment allows the rider to maintain optimal suspension performance for the prevailing load and road conditions. A 43mm inverted fork with single-cartridge internal technology stiffens the front end for a responsive ride and improved braking and handling performance. Fork rake is 28-degrees. Dual front brakes with 300mm discs deliver the responsive braking demanded by aggressive riders, with standard ABS (antilock braking system) for confident braking performance when conditions are less than ideal. Michelin® Scorcher® 31 tires enhance ride and handling.
Other features include these key West Coast styling elements: A one-inch diameter moto bar on four-inch tall risers, a deep solo seat, mid-mount foot controls, and a color-matched mini speed screen fairing that frames the headlamp and blocks the wind when chasing down the freeway. The powertrain, front end and exhaust are totally blacked out, with Radiate cast-aluminum wheels (19-inch front and 16-inch rear diameter) finished in Matte Dark Bronze to contrast the motorcycle’s dark components.
Available Paint Colors: Vivid Black, Gunship Gray
